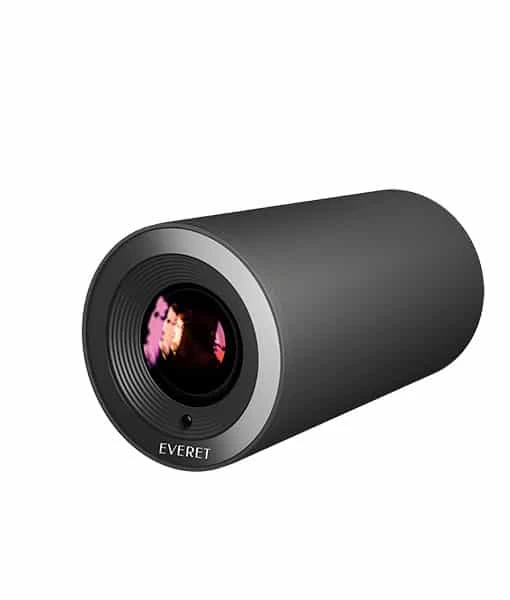

EVERET EVZ405N Gen1 4K NDI|HX2 and 3G-SDI POV Broadcast Camera
The EVERET EVZ405N is a is a professional grade 4K Ultra HD POV video camera with NDI|HX2, 3G-SDI and Audio Line-in, 5x optical zoom and 85 degree wide field of view. Simplifying setup supporting PoE and simultaneous live 3G-SDI and 4K NDI|HX2 outputs for ultra crystal 4K video. Perfect for enterprise live streaming, events and supplements of PTZ cameras.
KEY FEATURES
- 5x Optical Zoom
- 85° Field of View
- 3 year warranty
- 3840×2160 30fps ultra HD video resolution
- Advanced ISP, 1/2.5 inch 8.5 MP Sony sensor
- 4K IP Streaming – RTSP / RTMP / NDI|HX2
- IP and 3G-SDI video output simultaneously ( SDI Level A )
- NDI|HX2 (compatible with NDIv5)
- 3.5mm Audio Line-in
- POE supported: Easy to use one RJ45 cable to get video, control and power supply
- Standard VISCA, IP VISCA protocol control
- Supplied with functional IR remote controller, can set IP address via OSD menu
- WDR, 3D Noise Reduction feature
- Image flip function, support upside-down installation
- Supplied with IR remote controller, IP address setting via OSD menu
- Wall mount included
SPECIFICATIONS EVZ405N 4K NDI and 3G-SDI POV Box Camera
| Camera | EVZ405N |
| Sensor | Sony IMX247 1/2.5 inch 8.5 MP CMOS Sensor |
| Color Space | 8bit RGB 4:4:4; ISP RAW (12bit) |
| Video | |
| Video interface | 3G-SDI* / RJ45 (IP)
*Level A |
| Video Encoding | H.264/H.265 |
| Streaming Protocols | NDI®|HX2 / RTMP / RTSP |
| Bitrate control | Variable or Constant |
| Video Bitrate | 1024Kbps ~ 51200Kbps |
| I-Frame Interval | 3 – 120 |
| Audio | |
| Interface | 3.5mm Line-in |
| Sample rate | AAC: 22050Hz / 44100Hz
LPCM: 11025Hz / 22050Hz / 44100Hz |
| Bitrate for AAC | 32000Kbps – 128000Kbps |
| Volume | 1-100 |
| Video format | |
| 3G-SDI | 1920x1080P60/50/30/25/59.94/29.97/24
1920x1080I60/50/59.94 1280x720P60/50/30/25/59.94/29.97 |
| NDI®|HX2 / RTMP / RTSP | Main Stream 3840×2160@15~301920×1080@15~301280×720@15~301024×576@15~30Sub Stream1280×720@15~301024×576@15~30640×360@15~30 |
| Lens | |
| Optical Zoom | 5x |
| Digital Zoom | 4x |
| Aperture | F1. 8(Wide) – F26.61(Tele) |
| Focal Length | f=3.1~15.5mm |
| Horizontal Viewing Angle | 85° (Wide) – 6.3°(Tele) |
| Vertical Viewing Angle | 49.22° (Wide) – 15.29 (Tele) |
| Diagonal Viewing Angle | 86.13° (Wide) – 30.27° (Tele) |
| Presets | IR Remote : 10
WebUI: 128 EVKB200N: 128 Serial: 128 |
| Image | |
| Shutter Speed | 1/1 – 1/10000s |
| Iris | F1.8 – F14 |
| Minimum Object distance | Wide: 1m~INF; Tele:1.5m~INF |
| Video S/N Ratio | >50dB |
| Minimum Illumination | 0.1 lux |
| Focus | Auto / Manual / One Push |
| Focus limit | 1.5M, 2M, 3M, 6M, 10M |
| Gain Level | 0-30Db |
| Gain limit | 2-128 |
| White Balance Modes | Auto / Manual / Auto Tracking / One Push / Indoor / Outdoor / Sodium / Fluorescent |
| Exposure Modes | Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority |
| Wide Dynamic Range Level | Levels 1-6 |
| Gamma | Levels 0-8 |
| Day/Night mode | Yes |
| Anti-Flicker | OFF / 50Hz / 60Hz |
| 3D NR | OFF / Auto / Level 1-4 |
| 2D NR | Yes |
| DEFOG | OFF/1-15 |
| Image Flip | Yes |
| Image Mirror | Yes |
| Back Light Compensation | Yes |
| Tally Light | Not supported |
|
Control |
|
| Network (RJ45) | HTTP / ONVIF / VISCA over IP (TCP&UDP) / HTML5 (WebUI) |
| Serial | RS232 / RS422 / RS485 / PELCO P/D |
| IR Remote | Yes |
| Visca over IP Port | 52381 |
| Network | |
| Default IP | 192.168.1.188 |
| Port Speed | 1 Gb/s |
| PoE | POE+(IEEE802.3at) |
| DHCP | Yes |
| Multicast | Yes |
| HTTP Port | 80 |
| RTSP Port | 554 |
| RTSP Encrypt | Not supported |
| General | |
| Environment | Indoor |
| Operating Temperature | -10℃~50℃ |
| Operating Humidity | ≤80% |
| Power input | DC12V/POE+(IEEE802.3at) |
| Power Consumption | PoE+ : 9W
DC in: 9W |
| Dimensions (LxWxH) | 168.8mm×80mm×80mm |
| Weight | 0.65KG |
INCLUDED BY DEFAULT
- EVZ405N 4K NDI|HX2 and 3G-SDI POV Broadcast Camera

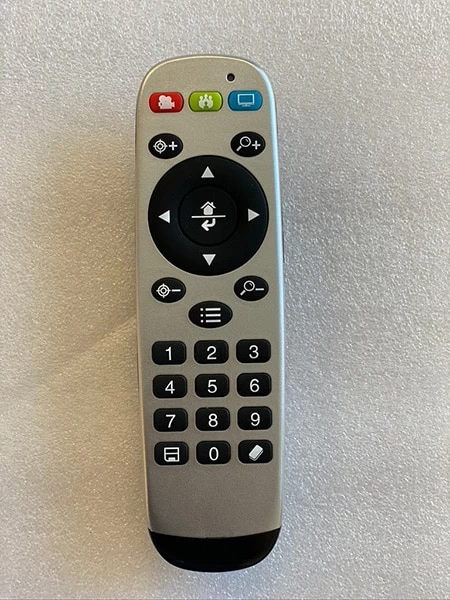

- Remote Control
- Power Adapter

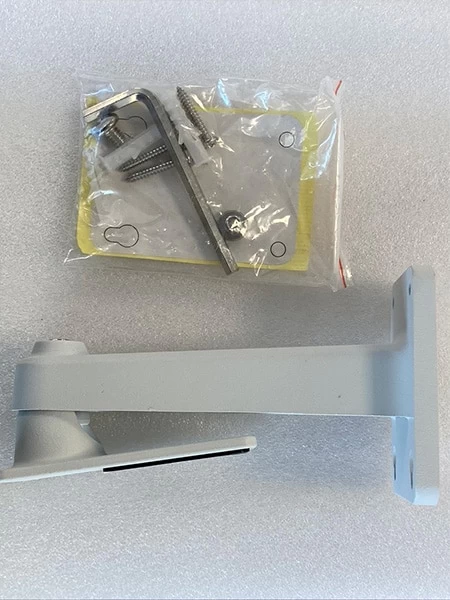

- Wallmount bracket
