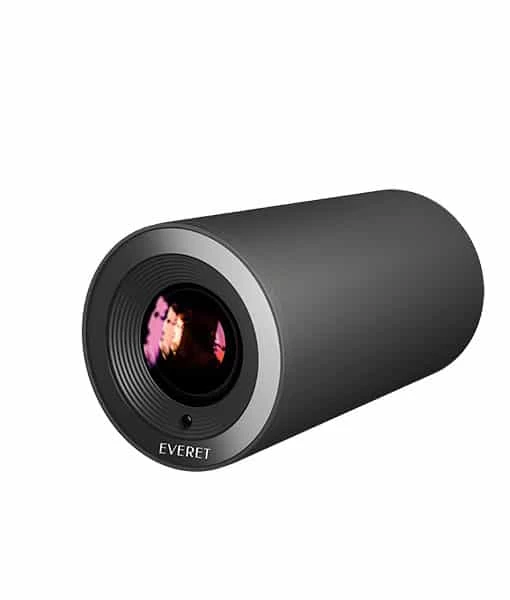

Everet EVZ405N Professional 4K POV NDI|HX2 SRT Box Camera

Everet EVZ405N Professional 4K POV NDI|HX2 SRT Box Camera

The EVERET EVZ405N is a is a professional grade 4K Ultra HD POV video camera with NDI|HX2, SRT, 3G-SDI and Audio Line-in, 5x optical zoom and 85 degree wide field of view. Simplifying setup supporting PoE and simultaneous live 3G-SDI and 4K NDI|HX2 outputs for ultra crystal 4K video. Perfect for enterprise live streaming, events and supplements of PTZ cameras.

KEY FEATURES

• 5x Optical Zoom
• 85° Field of View
• 3 year warranty
• 3840×2160 30fps ultra HD video resolution
• Advanced ISP, 1/2.5 inch 8.5 MP Sony sensor
• 4K IP Streaming – RTSP / RTMP / SRT / NDI|HX2
• IP and 3G-SDI video output simultaneously ( SDI Level A and B )
• NDI|HX2 (compatible with NDIv5)
• 3.5mm Audio Line-in
• POE supported: Easy to use one RJ45 cable to get video, control and power supply
• Standard VISCA, IP VISCA protocol control
• Supplied with functional IR remote controller, can set IP address via OSD menu
• WDR, 3D Noise Reduction feature
• Image flip function, support upside-down installation
• Supplied with IR remote controller, IP address setting via OSD menu
• Wall mount included

SPECIFICATIONS EVZ405N 4K NDI|HX2 and 3G-SDI POV Box Camera

Camera	EVZ405N
Sensor	Sony IMX247 1/2.5 inch 8.5 MP CMOS Sensor
Color Space	8bit RGB 4:4:4; ISP RAW (12bit)
Video
Video interface	3G-SDI* / RJ45 (IP)   *Level A and B
Video Encoding	H.264/H.265
Streaming Protocols	NDI®|HX2 / SRT / RTMP / RTSP
Bitrate control	Variable or Constant
Video Bitrate	1024Kbps ~ 51200Kbps
I-Frame Interval	3 – 120
Audio
Interface	3.5mm Line-in
Sample rate	AAC: 22050Hz / 44100Hz   LPCM: 11025Hz / 22050Hz / 44100Hz
Bitrate for AAC	32000Kbps – 128000Kbps
Volume	1-100
Video format
3G-SDI	1920x1080P60/50/30/25/59.94/29.97/24 1920x1080I60/50/59.94 1280x720P60/50/30/25/59.94/29.97
NDI®|HX2 / RTMP / RTSP	Main Stream 3840×2160@15~301920×1080@15~301280×720@15~301024×576@15~30Sub Stream1280×720@15~301024×576@15~30640×360@15~30
Lens
Optical Zoom	5x
Digital Zoom	4x
Aperture	F1. 8(Wide) – F26.61(Tele)
Focal Length	f=3.1～15.5mm
Horizontal Viewing Angle	85° (Wide) – 6.3°(Tele)
Vertical Viewing Angle	49.22° (Wide) – 15.29 (Tele)
Diagonal Viewing Angle	86.13° (Wide) – 30.27° (Tele)
Presets	IR Remote : 10 WebUI: 128 EVKB200N: 128 Serial: 128
Shutter Speed	1/1 – 1/10000s
Iris	F1.8 – F14
Minimum Object distance	Wide: 1m～INF; Tele：1.5m～INF
Video S/N Ratio	>50dB
Minimum Illumination	0.1 lux
Focus	Auto / Manual / One Push
Focus limit	1.5M, 2M, 3M, 6M, 10M
Gain Level	0-30Db
Gain limit	2-128
White Balance Modes	Auto / Manual / Auto Tracking / One Push / Indoor / Outdoor / Sodium / Fluorescent
Exposure Modes	Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority
Wide Dynamic Range Level	Levels 1-6
Gamma	Levels 0-8
Day/Night mode	Yes
Anti-Flicker	OFF / 50Hz / 60Hz
3D NR	OFF / Auto / Level 1-4
2D NR	Yes
DEFOG	OFF/1-15
Image Flip	Yes
Image Mirror	Yes
Back Light Compensation	Yes
Tally Light	Not supported
Control
Network (RJ45)	HTTP / ONVIF / VISCA over IP (TCP&UDP) / HTML5 (WebUI)
Serial	RS232 / RS422 / RS485 / PELCO P/D
IR Remote	Yes
Visca over IP Port	52381
Network
Default IP	192.168.1.188
Port Speed	1 Gb/s
PoE	POE+(IEEE802.3at)
DHCP	Yes
Multicast	Yes
HTTP Port	80
RTSP Port	554
RTSP Encrypt	Supported
General
Environment	Indoor
Operating Temperature	-10℃~50℃
Operating Humidity	≤80%
Power input	DC12V/POE+(IEEE802.3at)
Power Consumption	PoE+ : 9W DC in: 9W
Dimensions (LxWxH)	168.8mm×80mm×80mm
Weight	0.65KG

INCLUDED BY DEFAULT

• EVZ405N 4K NDI|HX2 and 3G-SDI POV Broadcast Camera

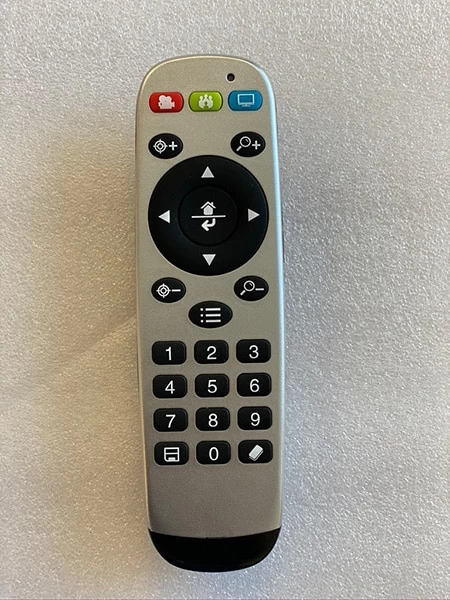

• Remote Control
• Power Adapter

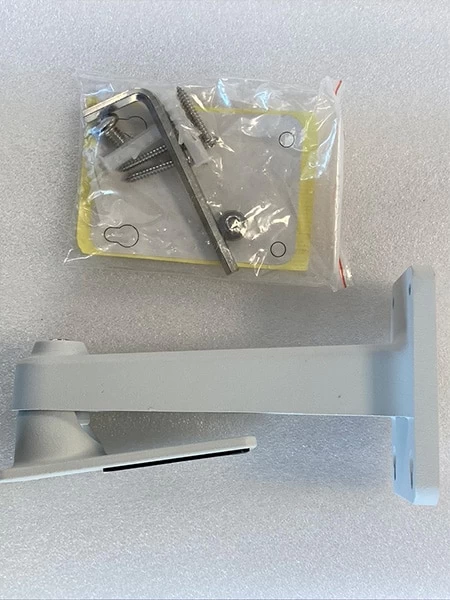

• Wallmount bracket
