FeelWorld LIVEPRO L1 Multicamera Video Switcher With 4 X HDMI Inputs & USB Streaming

FeelWorld LIVEPRO L1 Multicamera Video Switcher

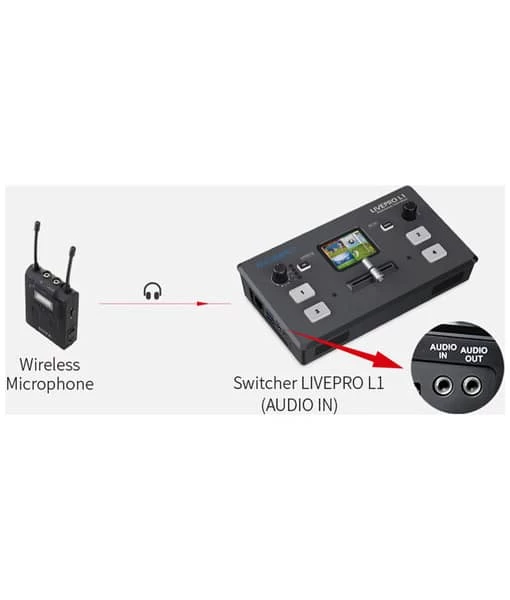

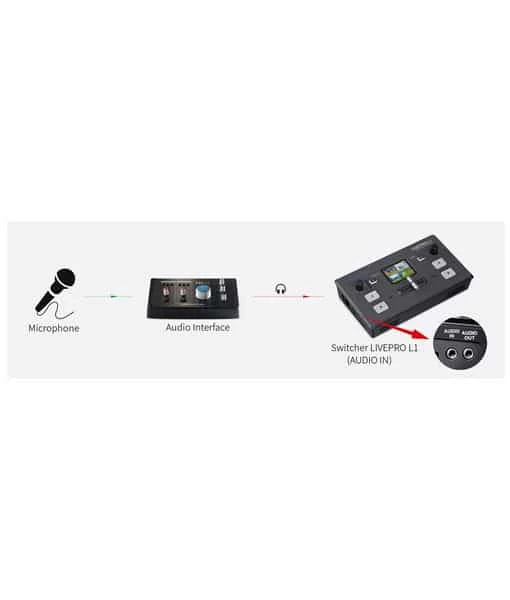

Switch live HDMI sources and output via USB for live streaming with this LIVEPRO L1 Multicamera Video Switcher with 4 x HDMI Inputs & USB Streaming from FeelWorld. The video switcher is a portable solution for HD video production that accommodates up to four HDMI inputs. You can control the switcher manually by using the built-in controls or connect it to a computer running optional software for additional control options. Select your working resolution and switch between your four input sources. Built into the switcher is an audio mixer that can embed audio signals from the 3.5mm analog audio input with the HDMI video signals.

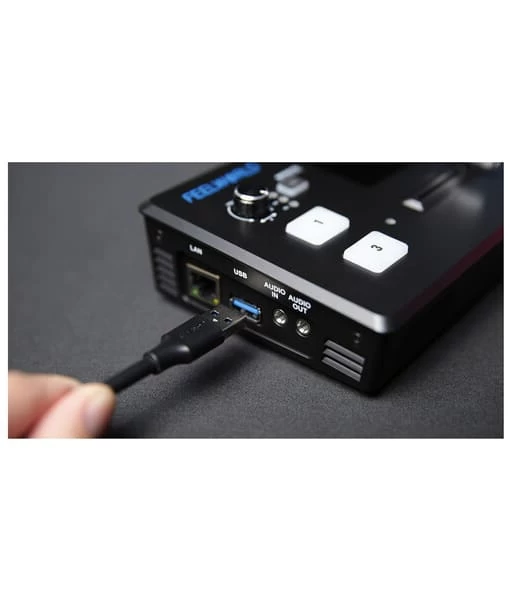

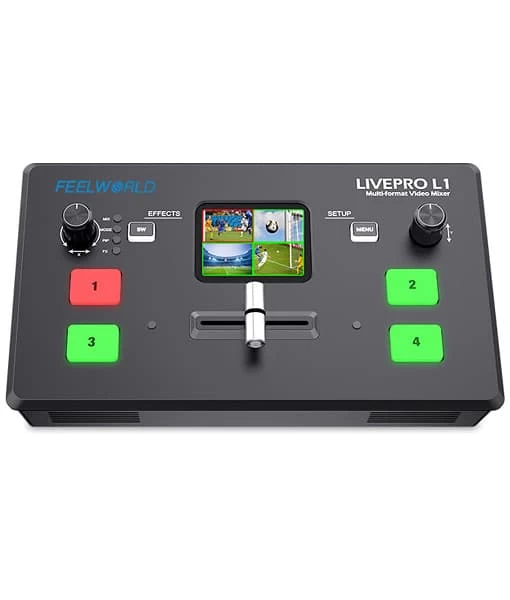

There are USB and RJ45 LAN outputs that allow you to live stream via a computer to the internet or a broadcast, and you can also utilize a smartphone for control using an app. The HDMI output provides PGM (program) output with up to six sources. The built-in 2″ TFT LCD allows you to view up to four PVW (preview) sources from your HDMI ports. It also supports Picture-in-Picture (PiP) mode, as well as DSK and PTZ control with optional software.

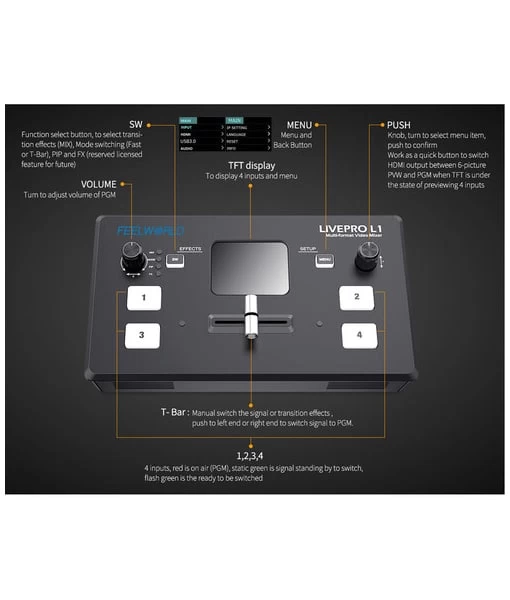

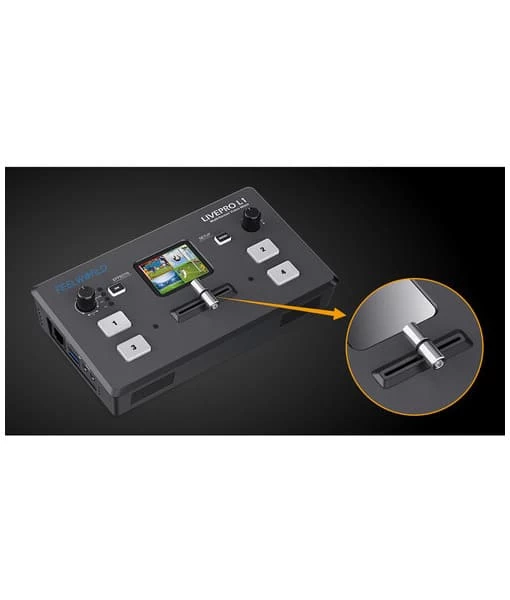

The integrated T-fader allows you to perform 14 different transition effects and manually control the speed of transitions. The unit features a program and multiview preview output, as well as an analog audio input and output.

FEATURES

SPECIFICATIONS FEELWORLD LIVEPRO L1

Specs
Model	LivePro L1
Screen Size	2.0″ TFT Display
Backlight	LED

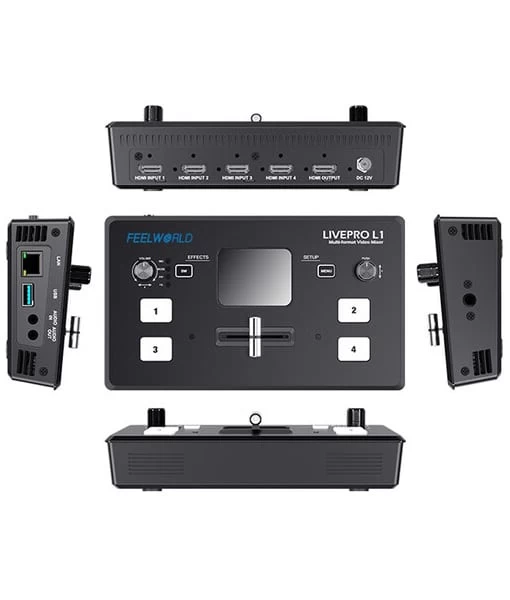

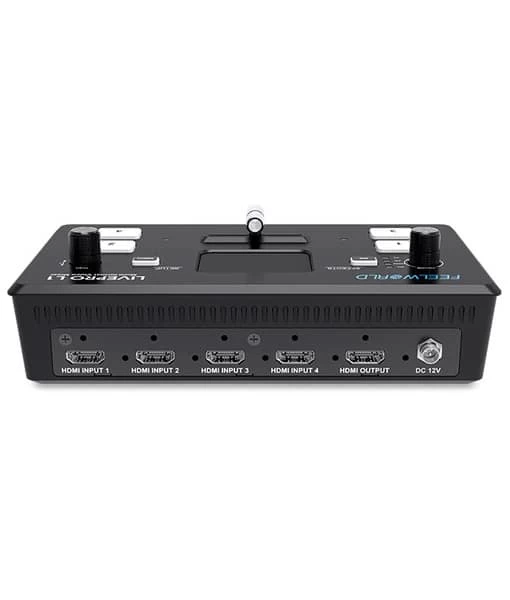

Input
4x HDMI	HDMI
Output
1x HDMI	HDMI
1x USB Type A	USB3.0
Audio
Audio In	1x 3.5mm Stereo Jack
Audio Out	1x 3.5mm Stereo Jack
Input
HDMI SMPTE 720p@50/60 |1080i@50 | 1080p@23/24/30/50/60) VESA 1024×768@60 | 1280×720@60|1280×768@60 |1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60| 1440×900@60| 1600×1200@60 | 1680×1050@60 |1920×1080@50i| 1920×1080@60 |1920×1080@60i|1920×1200@60
Output
HDMI SMPTE 720p@60|1080p@60|1080p@30/50 VESA 1024×768@60 | 1280×720@60|1280×768@60 |1280×800@60 | 1280×1024@60 |1360×768@60 | 1366×768@60| 1440×900@60| 1680×1050@60 | 1920×1080@60
General
Input Voltage	DC 12V / 1.5A
Max Power	18W
Working Temperature	-30 to 50 °C
Humidity	10% to 85%
Unit Size	190(L) x 110(W) x 43(H) mm
Unit Weight	640g

INCLUDED BY DEFAULT

• Feelworld Live Pro L1 Video Switcher
• USB Cable
• Power adapter
• Manual
