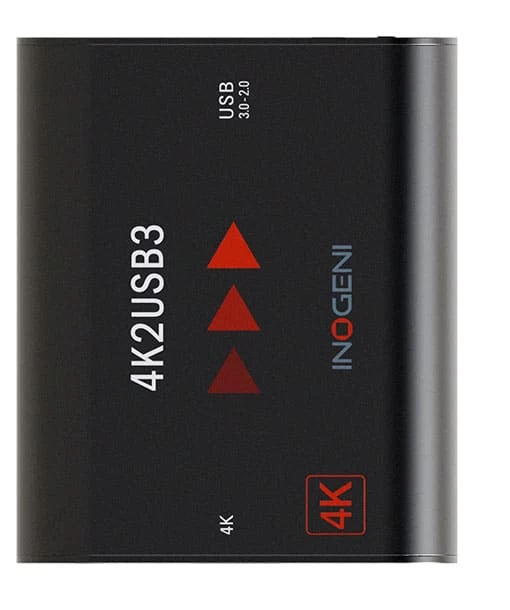

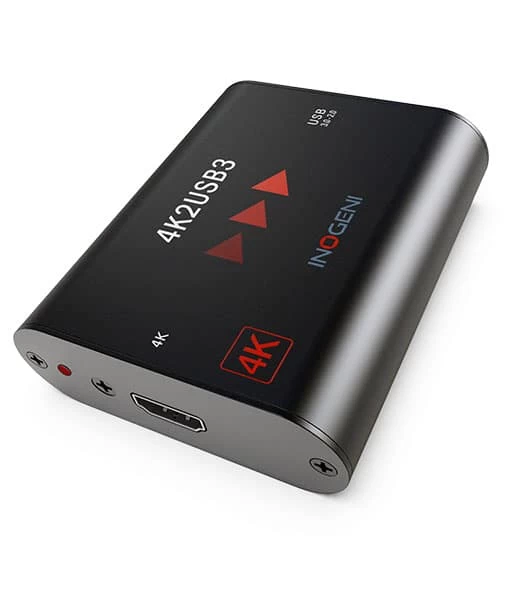

INOGENI 4K2USB3 – 4K HDMI To USB 3.0 Converter

INOGENI 4K HDMI to USB 3.0 converter

The Inogeni USB 3.0 4K HDMI Video Grabber allows you to capture uncompressed video with audio from your camera’s HDMI output on your PC for recording, editing, videoconferencing, and streaming applications. No driver installation is necessary and it will work on all motherboard and USB 3.0 chipsets. It features a HDMI input and a USB 3.0 output. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. This capture card is backward compatible with USB 2.0 devices. However, due to bandwidth restrictions, the card will only be able to operate at resolutions below 1080p.

The converter supports 4K resolutions up to 30 fps, and 1080p resolutions up to 60 fps as well as most computer graphic formats. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0 while all UHD resolution signals are converted to 4:2:0 8-bit. The embedded audio in the HDMI signal is extracted and output as two-channel LPCM. A USB 3.0 cable comes included.



KEY FEATURES INOGENI 4K2USB3

• HDMI capture to USB 3.0
• Direct Show Compatible
• Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats
• Supports 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 graphic formats
• Up to Ultra HD 4K (3840/4096×2160) at 30 fps and 1080p at 60 fps
• HDMI audio support – embedded audio in the HDMI signals are extracted and output as two-channel LPCM
• Digital Fluid technology – Internal frame buffers maximize frame rate with any PC
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion (UHD up-scaling not supported)
• Customizable video processing functions
• Image controls: Brightness, contrast, saturation and hue settings. These controls work on all formats below 4K but not 4K
• Supports multiple devices on the same PC
• Powered from USB 3.0 port
• Compatible with Windows, Mac OSX, Linux and Android
• A USB 3.0 cable is included
• NO driver installation necessary

SPECIFICATIONS INOGENI 4K2USB3 4K to USB3.0 Converter



Input

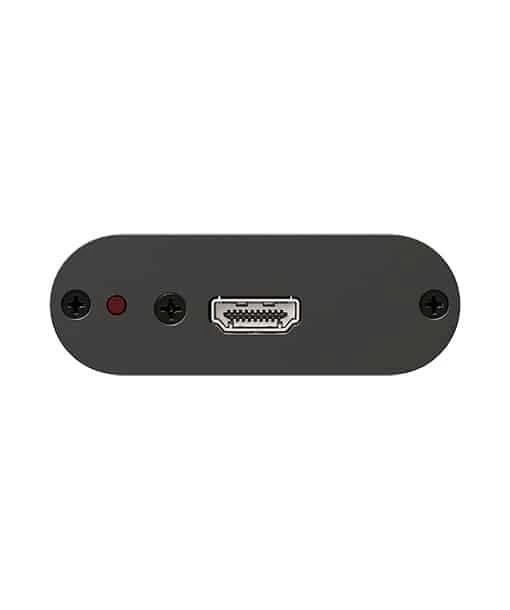

Connector	1 x HDMI 1.4a
Video Resolution	4K UHD (3840/4096×2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920×1200, 1280×1024, 1280×960,1280×800, 1024×768, 800×600, 640×480
Frame Rates	60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.
Color Space	RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling Rate	297 MHz
Embedded Audio	Ch 1&2 48kHz LPCM
HDCP Copy Protection	INOGENI will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Output

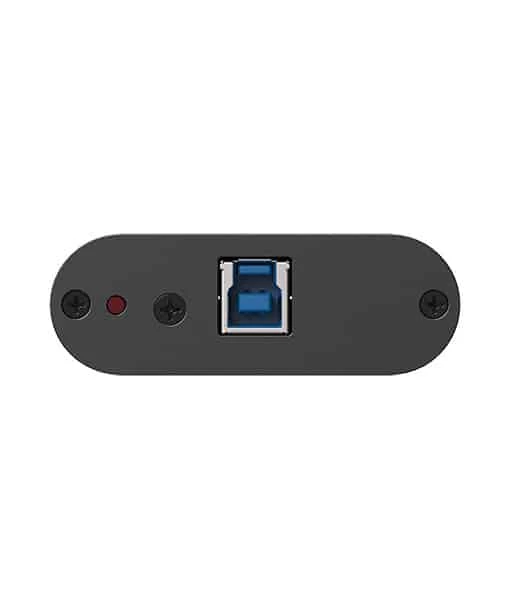

Connector	1 x USB 3.0
Codec	YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0 MJPEG for USB 2.0* *Devices having serial numbers >= 4K2037XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video.
Video Scaler	Automatic hardware based
Color Space Conversion	Automatic hardware based
Sampling Conversion	Automatic hardware based
Frame Rate Conversion	Automatic hardware based
Audio	2-channel LPCM audio from HDMI
General
Software Compatibility	UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation.
Dimensions & Weight	3.2” x 2.9” x 0.75” 120g
Operating Temperature	0° to 45° C
USB Power	5V, 580 mA

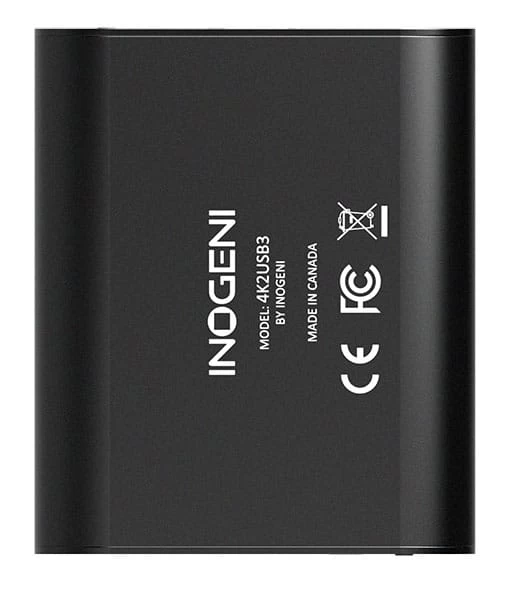

Origin	Canada

SOFTWARE COMPATIBILITY

Tested Applications

Recording / Editing Adobe Live Encoder Camtasia Debut Elements GUBCView LUVCView MATLAB MEncoder MPlayer OBS Presentations2Go ProPresenter QuickTime qV4L2 ScreenFlow SONY Vegas Pro 13 VLC VirtualDub VideoGlide VIDBlaster Wirecast vMixStreaming Justin.tv Livestream OBS Ustream Wirecast xSplit vMix YouTubeVideoconferencing BlueJeans Cisco Jabber FaceTime GotoMeeting Hangout HipChat Lync 2010/2013 Skype Webex Zoom

INCLUDED BY DEFAULT

• Inogeni 4K2USB3
• USB3.0 Cable
