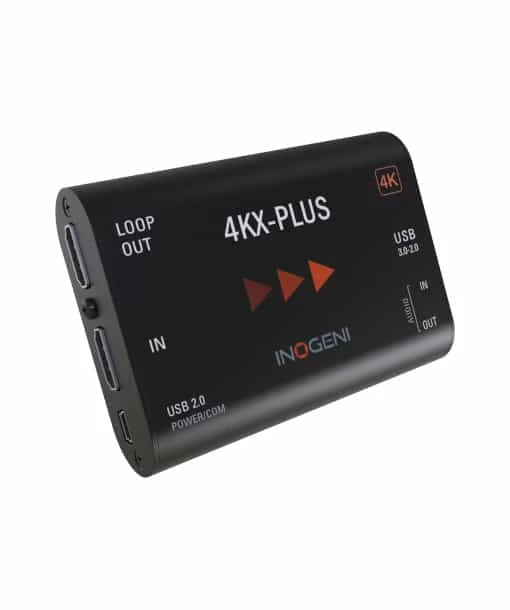

INOGENI 4KX-PLUS For Cisco Webex BYOM Applications

INOGENI 4KX-PLUS – Convert Ultra HD to USB 3.0 with HDMI loop, analog audio, and external power

The Inogeni 4KX-PLUS converts Ultra HD to USB 3.0 with an HDMI loop and external power for BYOM applications. It connects your HDMI cameras, video sources or CODECs to your laptop.

Perfectly compatible for Cisco Webex BYOM applications. Configure your Cisco conferencing software to use USB cameras and microphones. Activate ‘Enable USB mode’ on the Touch 10. It works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans. Compatible with USB 2.0 (high quality MJPEG) The 4KX-PLUS with Cisco Devices enable multiple displays. The 4K2USB3 works only for one display. The external power supply maintains the connection between the Cisco Webex CODEC and the 2nd display, even if the laptop is not connected to the 4KX-PLUS.

• Direct integration of Cisco room equipment (camera, audio and screen)
• Solves the interoperability issue
• Optimizes your assets and avoids additional license fees for Cloud Video Interop (CVI) service and user management
• No driver required
• Compatible with Windows, macOS and Linux laptops
• Easily programed macros in your Webex Room Device. Native Webex implementation available in Q2 CY2022
• Intuitive interface on Webex Touch 10 or Webex Navigator
• To request the macros, click here.

KEY FEATURES

• HDMI capture to USB 3.0
• Compatible with USB 2.0 (high-quality MJPEG)
• HDMI loop output
• Up to Ultra HD 4K (3840/4096×2160) at 30 fps and 1080p at 60 fps
• HDMI audio support
• Analog audio I/O
• Digital Fluid technology: Internal frame buffers maximize frame rates
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion (UHD up-scaling not supported)
• Image controls: Brightness, contrast, saturation, and hue settings
• Supports multiple devices on the same PC
• Compatible with Windows, Mac OSX, Linux and Android
• Powered from external adapter or USB 2.0 (included)
• A six-foot USB 3.0 cable is included



INCLUDED BY DEFAULT

• 1 x 4KX-PLUS.
• 1 x 3ft USB 3.0 cable A male to B male.
• 1 x 6ft USB 2.0 A male to mini-B 5-pin male hi-speed cable (for power).
• 1 x AC/DC 5V USB A power supply with AC interchangeable plugs (US, CE, AUS, UK).
• 1 x welcome card..
