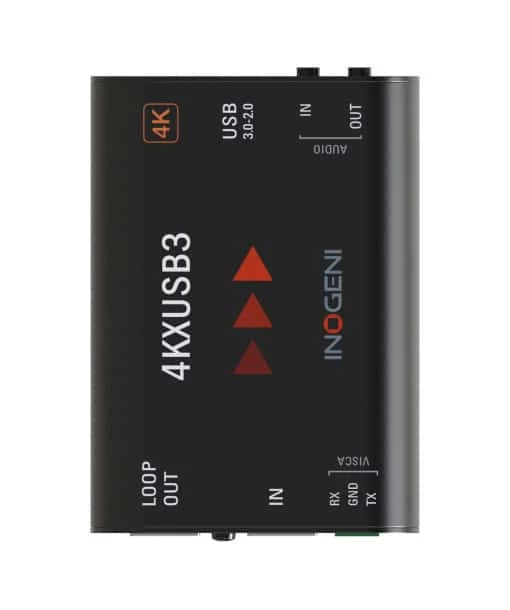

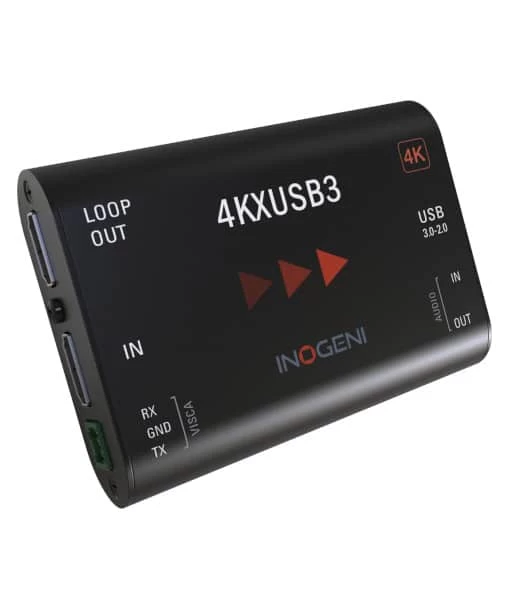

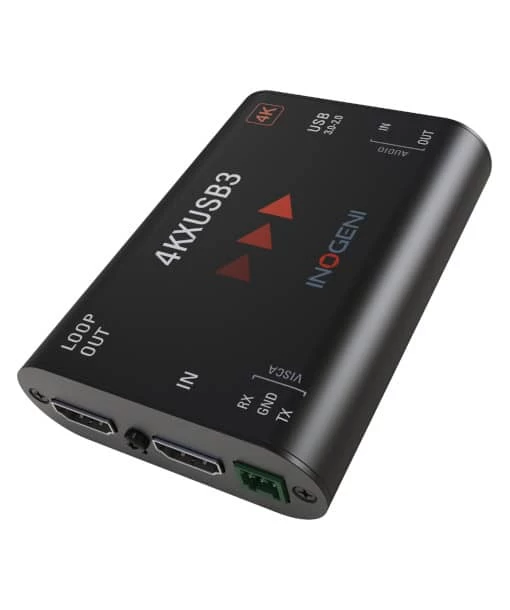

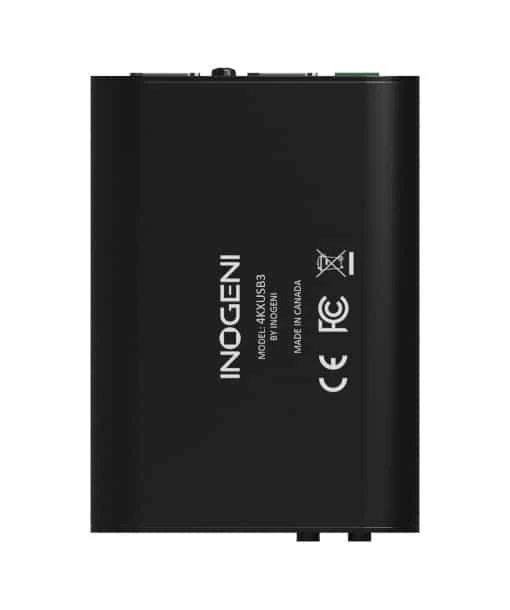

INOGENI 4KXUSB3 – 4K Ultra HD To USB 3.0 With Loop Through And Visca Port

INOGENI 4KXUSB3 – 4K Ultra HD to USB 3.0 with HDMI Loop and VISCA port

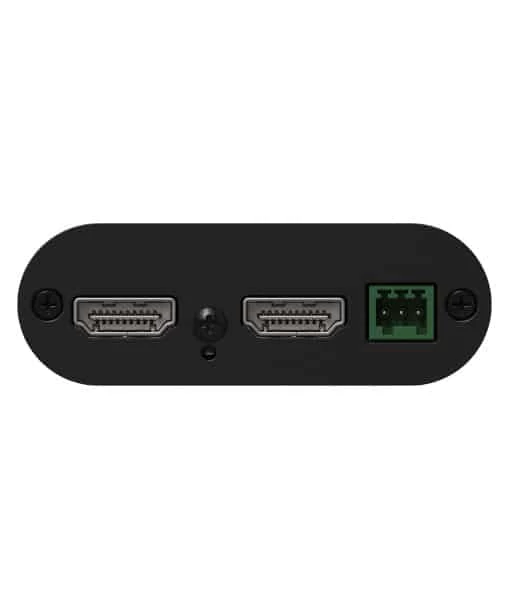

The Inogeni 4K Ultra HDMI to USB 3.0 Video Capture device allows you to capture uncompressed video with audio from your camera’s HDMI output on your PC or via the 3.5mm analog audio jack for recording, editing, videoconferencing, and streaming applications. No driver installation is necessary and it will work on all motherboard and USB 3.0 chipsets. It features an HDMI input, HDMI loop-through output, and a USB 3.0 output. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OS X, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. This capture card is backward compatible with USB 2.0 devices. However, due to bandwidth restrictions, the device will only be able to operate at resolutions below 1080p.

The converter supports 4K resolutions up to 30 fps, and 1080p resolutions up to 60 fps as well as most computer graphic formats. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0 while all UHD resolution signals are converted to 4:2:0 12-bit. The embedded audio in the HDMI signal is extracted and output as two-channel LPCM. A USB 3.0 cable comes included.





KEY FEATURES

• Compatible with Direct Show
• Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats
• Supports 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 graphic formats
• Up to Ultra HD 4K (3840/4096×2160) at 30 fps and 1080p at 60 fps
• HDMI audio support: Embedded audio in the HDMI signals is extracted and output as two-channel LPCM
• Digital Fluid technology: Internal frame buffers maximize frame rate with any PC
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion (UHD up-scaling not supported)
• Customizable video processing functions
• Image controls: Brightness, contrast, saturation and hue settings; these controls work on all formats below 4K, but not 4K
• Compatible with Barco ClickShare Conference and Zoomrooms

SPECIFICATIONS INOGENI 4KXUSB3

HDMI Input
Connector	1 x HDMI 1.4a
Video Resolution	4K UHD (3840/4096×2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920×1200, 1280×1024, 1280×960,1280×800, 1024×768, 800×600, 640×480
Frame Rates	60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.
Color Space	RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling Rate	297 MHz
Embedded Audio	Ch 1&2 48kHz LPCM
HDCP Copy Protection	INOGENI will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
HDMI Loop Output
Connector	1 x HDMI 1.4a
Video Resolution	Same as HDMI input
USB 3.0 Output
Connector	1 x USB Type-B (USB 3.0)
Codec	YUY2 4:2:2 8-bit NV12 4:2:0 12-bit YV12 4:2:0 12-bit I420 4:2:0 12-bit 4K formats can only be transferred into the 4:2:0 pixel formats
Video Scaler	Automatic hardware based
Color Space Conversion	Automatic hardware based
Sampling Conversion	Automatic hardware based
Frame Rate Conversion	Automatic hardware based
Audio	2-channel LPCM audio from HDMI and/or from Audio Jack
Audio Input
Connector	1 x 3.5mm analog audio jack (MIC or LINE level)
Audio Output
Connector	1 x 3.5mm analog audio jack (LINE level)
PTZ control
Connector	1 x Terminal block for VISCA control from UVC interface
Compatibility
Operating System	NO driver installation necessary Windows 7 and above (32/64-bit) Mac OSX 10.10 and above Linux (kernel v2.6.38) and above
Host Requirements	USB 3.0
Motherboard	Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic
Cameras Supported	Cameras and camcorders with an HDMI output
Software Compatibility	UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation.
Note to VAR/INTEGRATORS – this data is organized by product and may be duplicated for inclusion in a design or bid specs. It does vary from converter to converter. If you would like the same data in a .doc or .txt format please let us know.
Dimensions & Weight	3.9” x 2.9” x 0.75” 140g
Operating Temperature	0° to 45° C (32° to 113° F)
Storage Temperature	-40° to 105° C (-40° to 221° F)
Relative Humidity	0% to 90% non-condensing
USB Power	5V, 900mA
UPC Code	040232378935
Origin	Canada
Harmonized Code	8517.62.00
Warranty	2 years

SOFTWARE COMPATIBILITY

Tested Applications

Recording/Editing Adobe Live Encoder Camtasia Debut Elements GUBCView LUVCView MATLAB MEncoder MPlayer OBS Presentations2Go ProPresenter QuickTime qV4L2 ScreenFlow SONY Vegas Pro 13 VLC VirtualDub VideoGlide VIDBlaster Wirecast vMix Justin.tv Livestream OBS Ustream Wirecast xSplit vMix YouTube BlueJeans Cisco Jabber FaceTime GotoMeeting Hangout HipChat Lync 2010/2013 Skype Webex Zoom

INCLUDED BY DEFAULT

• 1x 3ft USB 3.0 cable (Type-A to Type-B)
• 1x RS-232 terminal block adapte
