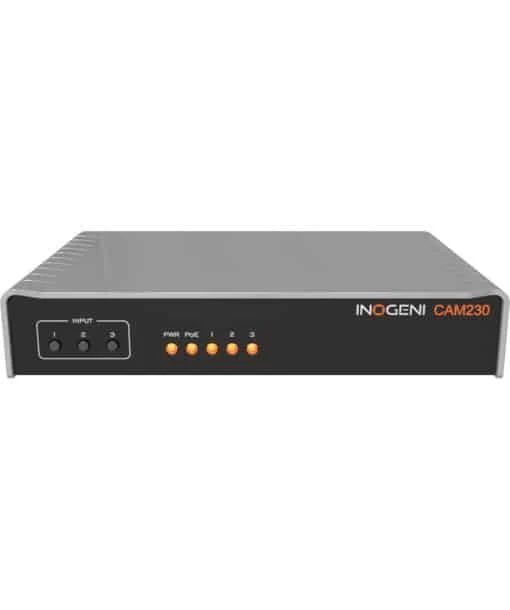

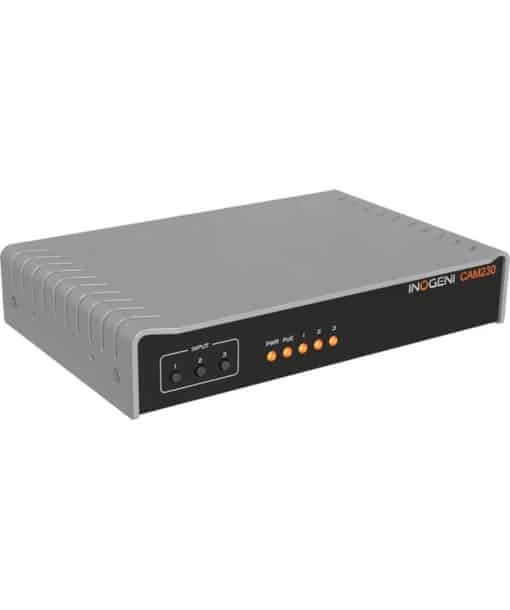

INOGENI CAM230 USB And HDMI Multi-camera Switcher

INOGENI CAM230 USB and HDMI multi-camera switcher

The INOGENI CAM230 is a multi-camera switcher that allows users to easily switch between up to three video cameras during a virtual meeting or presentation. The CAM230 connects to 2x USB 3.0/2.0 cameras and 1x HDMI camera and outputs a single video stream on USB 2.0 MJPEG and HDMI 2.0. With its easy-to-use push-button or via control pad switching, facilitators can ensure all participants are given equal opportunities to speak and contribute to the conversation while supporting whiteboard and document cameras for added collaboration and productivity.

KEY FEATURES INOGENI CAM230

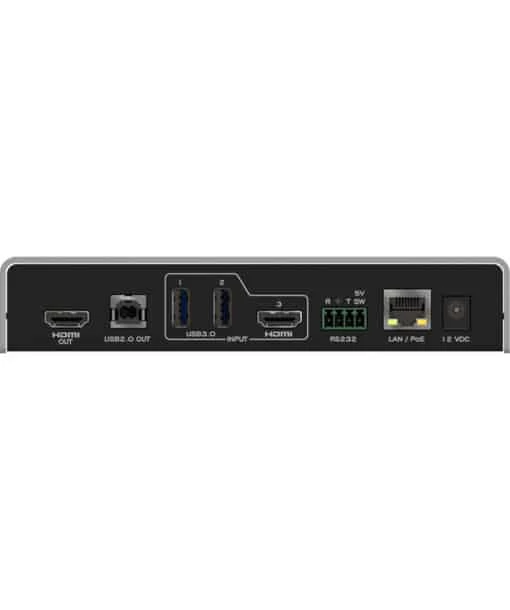

• Connects to 2x USB 3.0/2.0 and 1x HDMI cameras
• Video output on USB 2.0 and HDMI 2.0
• Easy push-button switching or via control pad for seamless camera transitions
• Supports whiteboard and document cameras for more efficient collaboration
• Cost-effective, versatile, and easy to use for improved meeting equity in virtual settings
• Change camera and video configurations without interrupting the presentation
• Ideal for remote education, collaborative meetings, webinars, and live-streaming
• Cost-effective, reliable, and easy to install and connect (no drivers required)
• 3 video sources clean switcher into a single video flow
  • 2x USBs (3.0/2.0 or MJPEG)
  • 1x HDMI (1080p60)
• OUTPUT switch into a single interface:
  • HDMI 2.0 output with audio for CODECs, matrixes or monitors
  • USB 2.0 MJPEG – 1080p30 for laptops or PC rooms or CODECs
• SWITCHING CONTROL:
  • RS-232 and IP control
  • Easy push button
• SUPPORT:
  • Bidirectional audio for videobars, such as Cisco, Poly, Logitech and Bose
  • PoE LAN
  • Multiple mounting options

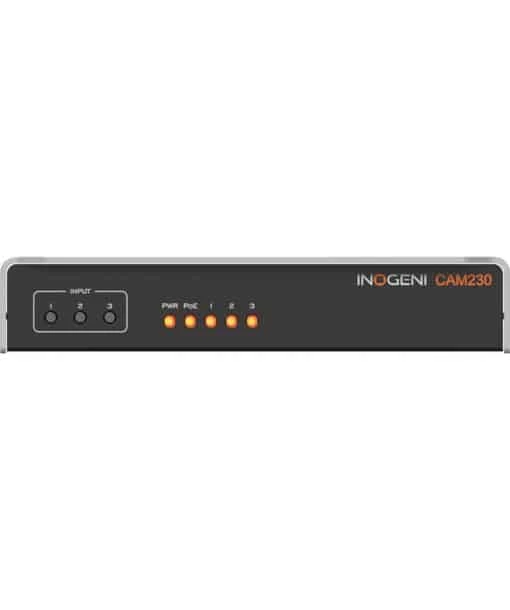

  • Visual LED status
• Controllable by RS-232 and IP
  • Switch cameras via your videoconferencing pad or with the push button
• Audio I/O via the INOGENI Control App
  • Embedded audio in USB and HDMI
• Advanced video quality
  • Hardware-based color space and sampling conversion
  • Automatic scaling and frame rate conversion
  • Customizable video processing functions
  • Supports multiple devices on the same host
  • Device configuration via the INOGENI Control App
• Firmware upgrade available via the INOGENI Control App
• Compact and robust design with an aluminum enclosure
• Designed and manufactured in Canada
• TAA-compliant

Plug & Go with the INOGENI CAM230

This easy-to-use multi-camera switcher requires no drivers for seamless and effortless switching between 2x USB and 1x HDMI cameras. Capture, mix, and switch with INOGENI’s professional camera selectors for a dynamic and engaging presentation experience.





INCLUDED BY DEFAULT

• INOGENI CAM230
• 1x 1 m/3.3 ft USB 2.0 cable (Type-A to Type-B)
• 1x RS-232 terminal block adapter
• 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
• International adapters included in the box (AUS, EUR, UK and US)
