INOGENI HD2USB3 – HDMI To USB3.0 Video Converter

INOGENI HD2USB3 – HDMI to USB 3.0 Video Converter 4K-Upgradable

The Inogeni HD2USB3 HDMI to USB 3.0 video converter is the most reliable and convenient PC input to capture uncompressed video with audio from your camera’s HDMI output for recording, editing, videoconferencing and streaming applications.

The HD2USB3 is a 4K upgradable 1080p60 HDMI to USB 3.0 converter.

The HD2USB3 HDMI to USB 3.0 video converter features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to 1200p60, as well as most computer graphic formats. This converter works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.

Compact and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is also UVC-compliant, so it will work with all DirectShow compatible software. The HD2USB3 professional video converter supports 1200p resolution up to 60 fps.

KEY FEATURES

• HDMI capture to USB 3.0
• Field upgradable to 4K for a minimal fee
• Supports 1080p, 1080i, 720p, 480p, and 576p video formats
• Supports 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 graphic formats
• Up to 1200p at 60 fps
• HDMI audio support
• Digital Fluid technology: Internal frame buffers maximize frame rate with any PC
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion
• Customizable video processing functions
• Image controls: Brightness, contrast, saturation, and hue settings
• Supports multiple devices on the same PC
• Compatible with Barco ClickShare Conference

SPECIFICATIONS INOGENI HD2USB3 VIDEO CONVERTER

Model	Inogeni HD2USB3
Input

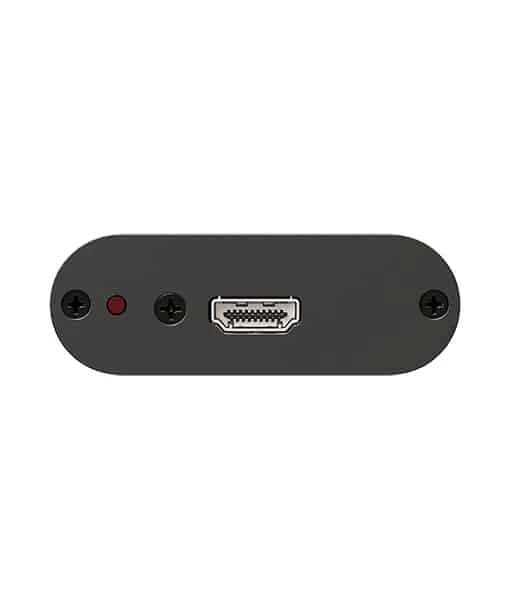

Connector	1 x HDMI 1.4a
Video Resolution	1080p, 720p, 1080i, 480p, 576p, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480
Frame Rates	60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions
Color Space	RGB, YCbCr, 4:4:4, and 4:2:2
Sampling Rate	297 MHz
Embedded Audio	Ch 1&2 48kHz LPCM
HDCP Copy Protection	INOGENI will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Output

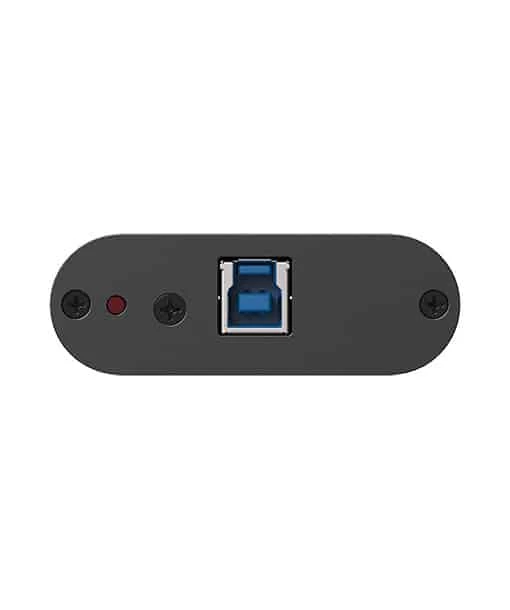

Connector	1 x USB 3.0
Codec	YUY2 4:2:2 8-bit for USB 3.0 MJPEG for USB 2.0
Video Scaler	Automatic hardware based
Color Space Conversion	Automatic hardware based
Sampling Conversion	Automatic hardware based
Frame Rate Conversion	Automatic hardware based
Audio	2-channel LPCM audio from HDMI
General
Operating System	NO driver installation necessary Windows 7 and above (32/64-bit) Mac OSX 10.10 and above Linux (kernel v2.6.38) and above
Host Requirements	USB 3.0
Cameras Supported	Cameras and camcorders with an HDMI output
Software Compatibility	UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation.
Dimensions & Weight	3.2” x 2.9” x 0.75” 120g
Operating Temperature	0° to 45° C
USB Power	5V, 580 mA

INCLUDED BY DEFAULT

• Inogeni HD2USB3
• USB3.0 Cable
