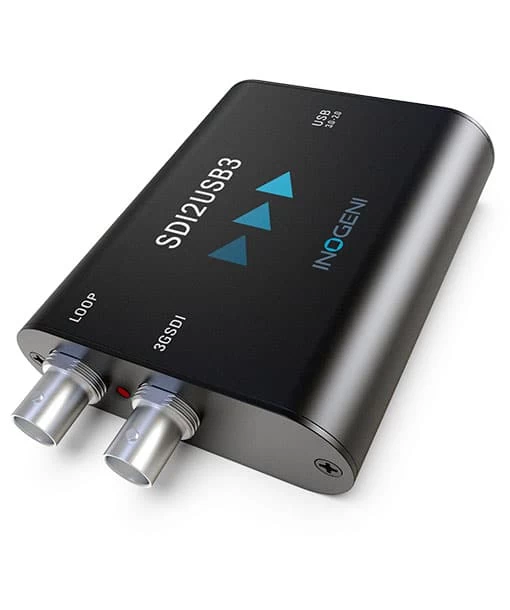

INOGENI SDI2USB3 – SDI To USB 3.0 Converter

Inogeni SDI2USB3 – SDI to USB Converter

The Inogeni USB 3.0 SDI Video Capture Card allows you to capture uncompressed video with audio from your camera or deck’s SDI output on your PC for recording, editing, videoconferencing, and streaming applications. No driver installation is necessary and it will work on all motherboard and USB 3.0 chipsets. It features a 3G-SDI input and output and a USB 3.0 output. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. This capture card is backward compatible with USB 2.0 devices. However, due to bandwidth restrictions, the card will only be able to operate at resolutions below 1080p.

The converter supports SD and HDTV video formats up to 1080p60. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0. The embedded audio in the SDI signal is extracted and output as two-channel LPCM. A USB 3.0 cable comes included.



KEY FEATURES

• 3GSDI video capture to USB 3.0
• Active loop output connector
• Supports 1080p, 1080i, 720p, 480p, 576p, NTSC and PAL at up to 60 fps
• All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0
• Embedded audio extraction and output as two-channel LPCM
• Digital Fluid technology: Internal frame buffers maximize frame rate with any PC
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion
• Customizable video processing functions
• Supports multiple devices on the same PC
• Compatible with Barco ClickShare Conference

SPECIFICATIONS INOGENI SDI2USB3 SDI to USB3.0 Converter

Specs
Model	Inogeni SDI2USB3
Host Connection	USB Type-B (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)
Input
Video Input Connectors	1 x BNC (3G-SDI)
Input Video Format	SDI 480p: 23.98/24/25/29.97/30/50/59.94/60 fps 576p: 23.98/24/25/29.97/30/50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 23.98/24/25/29.97/30/50/59.94/60 fps WUXGA (1920 x 1200): 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Input	SDI: 2-Channel
Hardware
OS Compatibility	Windows 7 or Later macOS 10.10 or Later Linux
General
Operating Temperature	0 to 45°C
Weight	120 g

INCLUDED BY DEFAULT

• INOGENI SDI2USB3
• USB 3.0 cable
