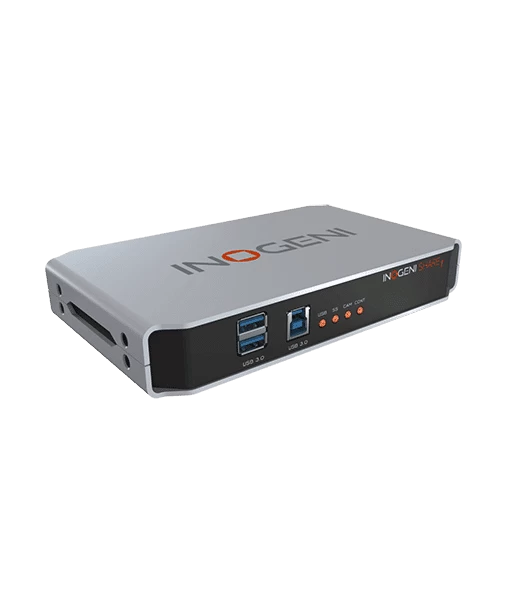

INOGENI Share1 Video Converter

INOGENI Share1 Video Converter

KEY FEATURES

• Simultaneous capture of two uncompressed HD video streams into one single USB 3.0 link.
• HDMI, DVI, VGA or CVBS video input connectors.
• Line level stereo audio support.
• Digital Fluid technology: Internal frame buffers maximize frame rate with any host.
• Hardware-based color space and sampling conversion.
• Automatic scaling and frame rate conversion.
• Customizable video processing functions.
• Image controls: Brightness, contrast, saturation and hue settings.
• Supports multiple devices on the same host.
• Compatible with Windows and Linux.

Interface

Fully tested and compatible with vMix

If you want to create your own video mixing, you can use the SHARE 1 which offers to the user two video interfaces. The vMix® and Wirecast® applications can manage two video sources simultaneously like shown below. The two video interfaces will show up as “INOGENI Camera” and “INOGENI Content“.



SPECIFICATIONS INOGENI SHARE1 Video Converter

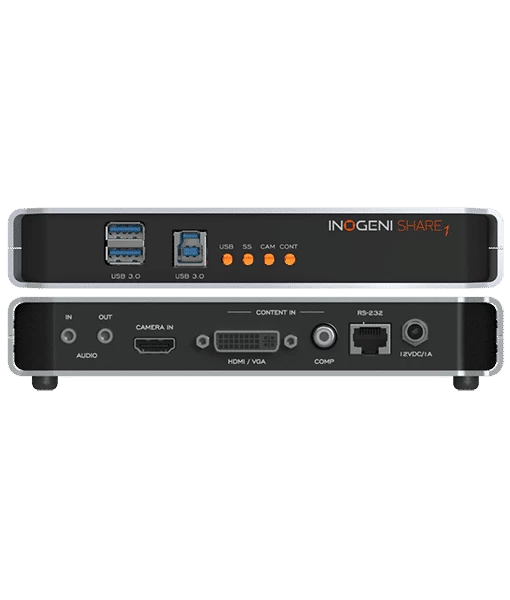

I/O	Video Input 1: 1 x HDMI Video Input 2: 1 x DVI/1 x RCA (selectable)Audio Input: 1 x 3.5mm stereo line-level Audio Output: 1 x 3.5mm stereo line-levelUSB: 1 x host connection, 2 x hub connection
Supported Resolutions	HDMI/DVI: 1080i/p, 720p, 480p, 576p, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 VGA: 1080p, 720p, 480p, 576p, 1920×1200, 1680×1050, 1400×1050, 1600×1200, 1280×1024, 1360×768, 1280×768, 1280×800, 1024×768, 800×600, 640×480 CVBS (RCA): NTSC, PAL
Frame Rates	Up to 60 Hz, all formats (simultaneous 60 Hz inputs not supported, second input will be limited to 30 Hz maximum)
Audio Format	2-channel LPCM 48 kHz (for both analog and and HDMI audio)
Color Space	Input: RGB, YCbCr 4:4:4 and 4:2:2 Output: 8-bit YCbCr 4:2:2
Sampling Rate	165 MHz
HDCP Support	No
Camera Control	RS-232 via RJ45 connector (works with RS-232 and VISCA control)
System Requirements	Operating System: Microsoft Windows 7 or newer (32/64-bit) Mac OS X 10.10 or newer Note: OS X only supports one video stream per USB port Linux kernel v2.6.38 and newerHost: 1 x USB 3.0 port 4GB RAM (minimum) Intel Core i5 processor Dedicated graphics cardMotherboard: Compatible with Intel, Renesas, ASMedia, and Fresco LogicSoftware: Runs with all software compatible with DirectShow, and V4L2
Power Input	1 x 12 V @ 500 mA
Dimensions	7.2 x 4.3 x 1.2″ / 185 x 110 x 30 mm
Weight	1 lb / 466 g

INCLUDED BY DEFAULT

• INOGENI SHARE1 VIDEO CONVERTER
