INOGENI SHARE2 Dual Video USB 3.1 Gen 1 Capture Device

INOGENI SHARE2 HDMI Mixer to USB3.0 – HDMI mixer for Zoom and Teams

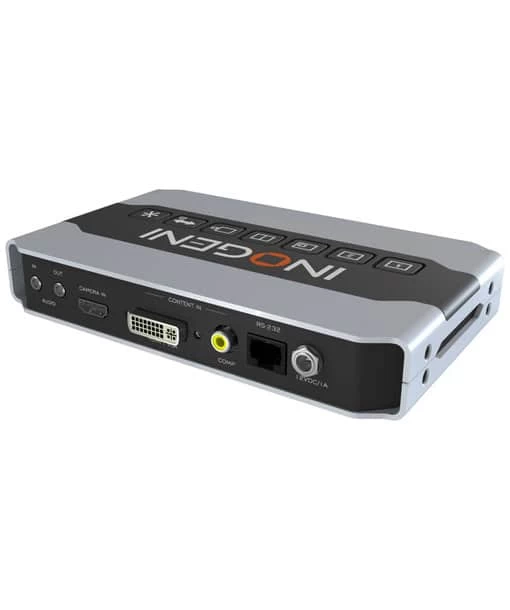

The INOGENI SHARE 2 is a dual video to USB 3.0 converter. It’s an easy-to-use solution for capturing two video sources simultaneously and running them via USB to your computer for streaming in applications like Zoom or Teams. Built-in IP control allows you to control the SHARE 2 over a network. It provides Web-based control using HTTP or TCP/IP.

For those familiar with the original SHARE, SHARE 2 offers the same features but with no USB bandwidth limitations, as well as with full Mac support, and support for multiple mixer control interfaces. With no bandwidth limits, two 1080p60 signals can now be streamed at the same time. SHARE 2 requires no driver installation and works with all motherboards and USB 3.0 chipsets.

SHARE 2 features a mixer that allows you to send your two video sources as one source, which is the only way supported by most video conferencing applications, like Skype, Zoom, Teams, Webex, and GoToMeeting. You can assign the two sources to appear in the application as side-by-side, big-and-small, or picture-in-picture, or you can designate input 1 or input 2 to appear individually in full screen. The designations are set in advance, and can be done via panel controls, RS-232, the optional INOGENI REMOTE, or HID via USB connection.

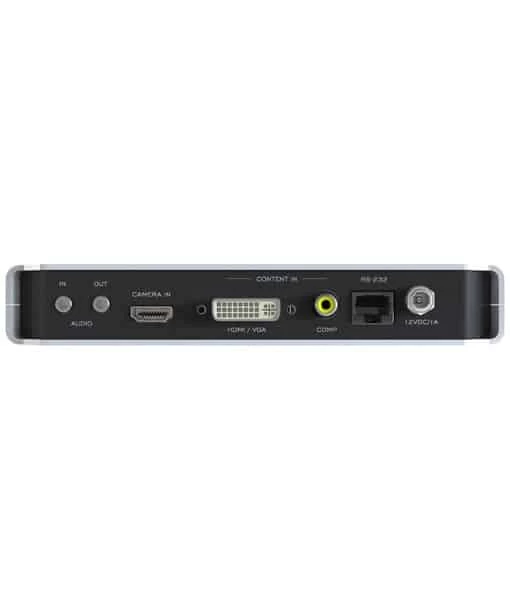

SHARE 2 has an HDMI input as video input 1, and DVI-I and composite inputs that you can select between for input 2. (The DVI and composite inputs cannot be used at the same time.) It also comes with DVI to VGA and DVI to HDMI adapters for use on input 2. SHARE 2 supports up to 1080p60 via HDMI, DVI, and VGA. In addition, there are 3.5mm analog audio input and output ports for connecting a microphone and speaker for two-way communication, an RJ45 port for RS-232 connection, and two USB 3.0 ports for expansion purposes.





OEM and system developers friendly

The device may be controlled by the Control App or via an included API so you can design your own. You can read the sources status, presence, format, modify the EDID, update the firmware, etc. and ask for custom functionalities.

You can also get Crestron modules in order to control the device using the LAN or serial interface. You can get a look at the interface of the Crestron module below. Visit the Software Update page under the INOGENI SHARE 2 section for more details.

SHARE Remote

When the SHARE2 or SHARE2U is positioned in an inconvenient area of the room because of your computer and video source cables, you can connect the Inogeni SHARE2 wired remote (not included) and change sources from a better place in the room.

KEY FEATURES INOGENI SHARE2

• Dual-video to USB 3.0 converter
• Send 2 video sources to your computer as 1 stream, the only way recognized in applications like Skype
• Stream up to two 1080p60 signals at the same time
• No USB bandwidth limitations, full Mac support, support for multiple control interfaces
• Designate the two sources to appear as side-by-side, big-and-small, or picture-in-picture
• Or designate input 1 or input 2 to appear individually in full screen
• Make assignments via panel controls, RS-232, optional INOGENI REMOTE, or HID via USB connection
• HDMI input as video input 1; DVI and composite inputs as input 2 (selectable)
• DVI to VGA and DVI to HDMI adapters included
• 3.5mm audio input and output for connecting a microphone and speaker
• RJ45 port for RS-232 connection
• Two USB 3.0 ports for expansion
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion

SPECIFICATIONS INOGENI SHARE2

Model	Inogeni Share2
Input
Video Input 1	1 x HDMI 1080p, 720p, 1080i, 480p, 576p, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480
Video Input 2	1 x DVI-I (Digital + Analog) DVI: 1080p, 720p, 1080i, 480p, 576p, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 VGA: 1080p, 720p, 480p, 576p, 1920×1200, 1680×1050, 1400×1050, 1600×1200, 1280×1024, 1360×768, 1280×768, 1280×800, 1024×768, 800×600, 640×480 or 1 x CVBS 480i, 576i
Frame Rates	Up to 60 Hz, all formats
Color Space	RGB, YCbCr, 4:4:4, and 4:2:2
Sampling Rate	165 MHz
Analog Audio Input	Analog stereo, line level, 3.5 mm jack
Analog Audio Output	Analog stereo, line level, 3.5 mm jack
RS232	Via RJ45 port
HDCP	The device will not decrypt BD/DVD movies, satellite/cable receivers, or other encrypted sources
Mixer	The Mixer feature can be controlled by the following interfaces: panel control buttons, RS-232, optional INOGENI REMOTE, or HID (Human Interface Device) via USB connection
Output
Connector	1 x USB 3.0
Color Space	YCbCr (YUY2) 4:2:2 8-bit
Video Scaler	Automatic hardware based
Color Space Conversion	Automatic hardware based
Sampling Conversion	Automatic hardware based
Frame Rate Conversion	Automatic hardware based
Audio Input	2-channel LPCM 48 kHz audio from line input or embedded in HDMI
Audio Output	2-channel LPCM 48 kHz audio line level
USB Expansion	2 x extra USB 3.0 ports for expansion purposes (The devices connected will appear to the host)
General
Operating Systems	No driver installation required Windows 7 and above (32-/64-bit) OS X 10.10 and above Linux (kernel v2.6.38) and above Android
Host Requirements	USB 3.0 port Minimum 4 GB RAM Intel Core i5 Graphic card with dedicated memory
Cameras Supported	Cameras and camcorders with an HDMI, DVI, VGA, or CVBS output
Software Compatibility	UVC-compliant; runs with all software compatible to DirectShow, AVFoundation, and V4L2
Power	12 V, 500 mA
Operating Temperature	0 to 45°C
Dimensions	18.5 x 11.2 x 3 cm

INCLUDED BY DEFAULT

• Inogeni Share2
• USB3.0 Cable
