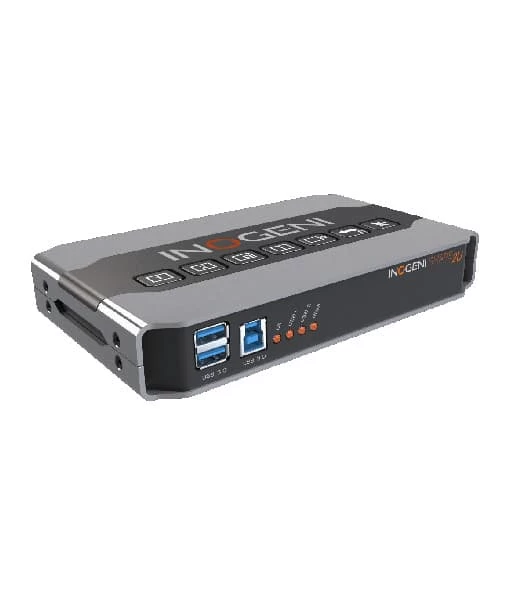

INOGENI SHARE2U USB/HDMI Mixer And Capture Device

Inogeni Share2U Dual USB Camera to USB 3.0 Multi I/O Capture

Mix two channels of HD video over USB or HDMI and capture them with the INOGENI SHARE 2U USB/HDMI Mixer and Capture Device. Dual USB inputs and single HDMI input are available (only two can be used simultaneously). Uncompressed 1080p30 video is accepted over HDMI, while MJPEG and H.264 video formats from POV and webcams are supported via USB.

The built-in video mixer can show one input or the other, or display both inputs in side-by-side, big and small, and picture-in-picture configurations. All video processing is done using hardware, so video quality remains high latency is minimal. The advantage of using a mixer like the SHARE 2U is the ability to show more than one video input on teleconferencing software such as Skype, Zoom, Teams, Webex, and GoToMeeting with one-touch controls. Unique to the SHARE 2U is the incorporation of an HDMI mixed output in addition to the USB connection. With this connection, you can send mixed feeds to your computer for recording or teleconferencing, while simultaneously sending video to a projector or monitor. Control over the device can be taken using the host PC, or remotely via RS-232 and Ethernet.

KEY FEATURES INOGENI SHARE2U

• No drivers required
• Compatible with all videoconferencing, streaming, and capture applications
• Mixer feature: Hardware mixer into a single USB 3.0 interface
• Control interface: LAN, RS-232, USB
• Local and remote keypad
• USB 2.0 cameras and HDMI capture
• HDMI output for preview
• Line level stereo audio support
• Digital Fluid technology: Internal frame buffers maximize frame rate with any host
• Compatible with Windows, OS X, Linux, and Android

SPECIFICATIONS INOGENI SHARE2U

Model	Inogeni Share2U
Input
Video Inputs	2 x USB 2.0 Type-A 1 x HDMI Type AOnly Two Inputs Can Be Active Simultaneously
Frame Rates	Up to 60 fps, All Formats
Color Space	RGB, YCbCr, 4:4:4, and 4:2:2 (USB Only Supports RGB)
Sampling Rate	165 MHz
Analog Audio Input	Analog stereo, line level, 3.5 mm jack
Analog Audio Output	Analog stereo, line level, 3.5 mm jack

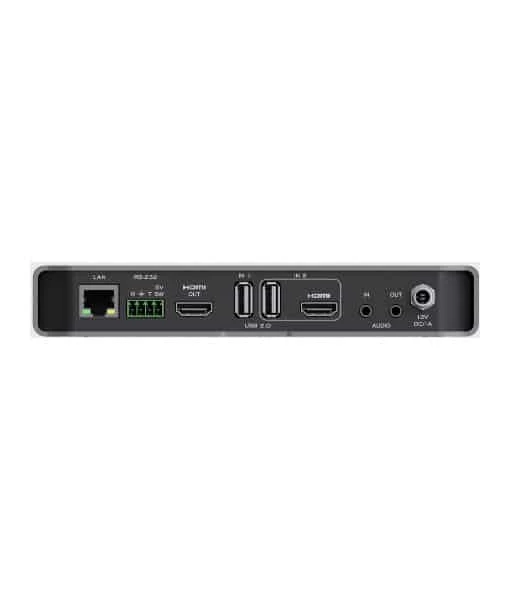

Remote Control	1 x Phoenix, RS-232 1 x RJ45, EthernetRemote Control via USB Connection Is Also Available
Output

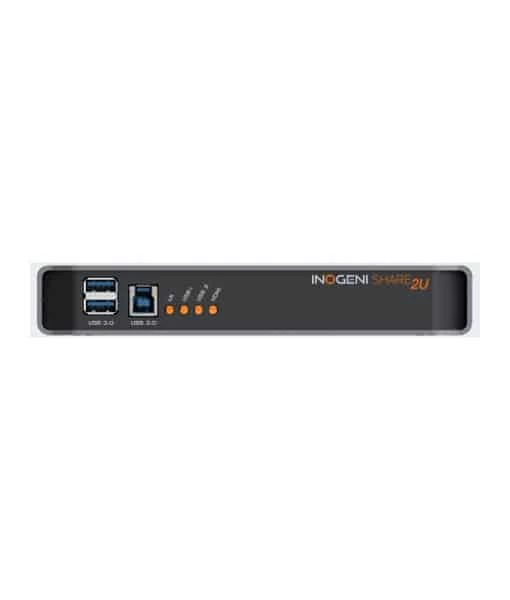

Connector	1 x USB 3.0 Type-B 1 x HDMI Type A
Color Space	YCbCr (YUY2) 4:2:2 8-Bit
Video Scaler	Automatic hardware based
Color Space Conversion	Automatic hardware based
Sampling Conversion	Automatic hardware based
Frame Rate Conversion	Automatic hardware based
Audio Input	2-Channel LPCM 48 kHz, Line Level Input or Embedded in USB or HDMI
Audio Output	2-Channel LPCM 48 kHz, Line Level Input
USB Expansion	2 x USB 3.0
USB Bandwidth	No Bandwidth Limitation
General
Operating Systems	No driver installation required Windows 7 and above (32-/64-bit) OS X 10.10 and above Linux (kernel v2.6.38) and above Android
Host Requirements	USB 3.0 port Minimum 4 GB RAM Intel Core i5 Graphic card with dedicated memory
Cameras Supported	Cameras and camcorders with an HDMI, DVI, VGA, or CVBS output
Software Compatibility	UVC-Compliant Compatible with DirectShow, AVFoundation, and V4L2
Power	12 V, 700 mA
Operating Temperature	0 to 45°C
Dimensions	18.5 x 11.2 x 3 cm

INCLUDED BY DEFAULT

• Inogeni Share2U
• USB3.0 Cable
