INOGENI TOGGLE ROOMS HOST BUTTON To Trigger A BYOM

INOGENI TOGGLE ROOMS HOST BUTTON to trigger a BYOM

Introducing the INOGENI HOST BUTTON—an elegant, high-quality metal-grade switch designed to subtly enhance conference tables. With a sleek, illuminated design, this button effortlessly toggles between room PC and laptop hosts, providing a seamless and sophisticated solution for BYOM scenarios. It is easy to install and designed for aesthetic integration into modern conference spaces.

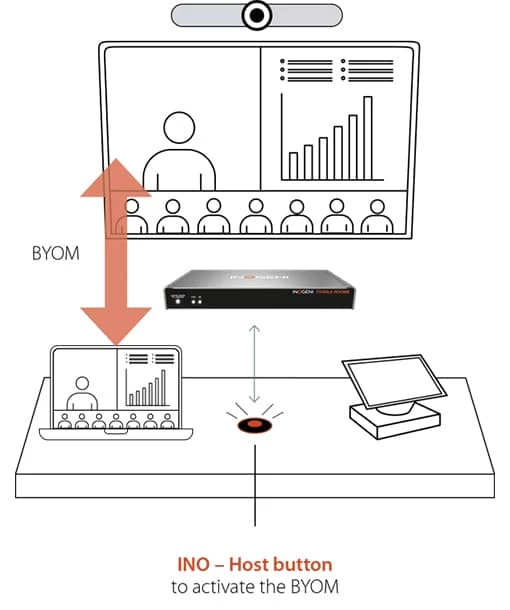

Function: A simple button interface to activate BYOM mode (laptop hosts the meeting)

• Requirements:
  • Connected to the unit with a simple CAT cable (CAT cable not included).
  • By default, the button will configure the device to operate in BYOM mode.
• To activate BYOM mode (laptop host)
  • The laptop needs to be connected via the USB-C cable or USB-B + HDMI cables.
  • When the button is pressed, the button will illuminate, indicating the peripherals (cameras, audio or videobar) are connected to the laptop for a BYOM meeting hosted by the laptop. (Only because the button doesn’t actually connect the peripherals – TOGGLE ROOMS does).
  • By pressing the button again, BYOM to the laptop will be disabled and the host will return to the room PC as indicated by no illumination.
• User controls:
  • The button controls the device through GPI interface.
    • The device automatically detects new connections.
    • Physical button on the unit itself for installation with a technician.

GPI for controlling BYOM mode

KEY FEATURES

• Enables easy switching between two PCs—from the room PC to the laptop and vice versa.

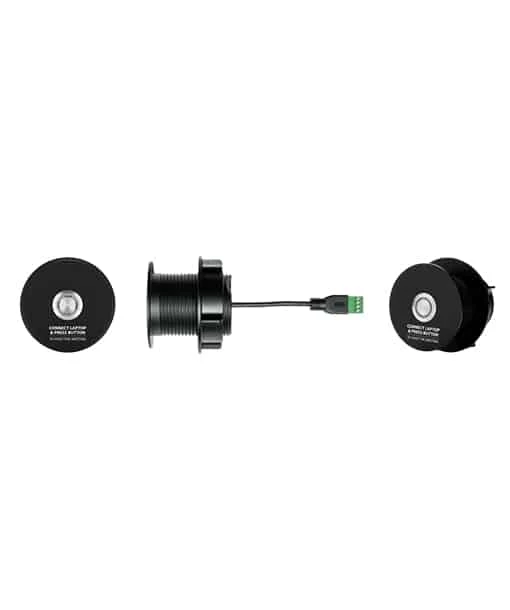

• Anodized metal button with LED ring and terminal block hardware.
• Connectivity: Linked to TOGGLE ROOMS through a simple CAT cable (not included) using terminal block connections.
• Default configuration: By default, the button configures the device to operate in BYOM mode.
• Activation process: To activate BYOM mode, the laptop must be connected via USB-C or USB-B + HDMI cables.
• Illumination indicator: When activated, the button’s LED ring illuminates, indicating the peripherals (cameras, audio,videobar and display) are connected to the laptop for a BYOM meeting.
• User controls: Operates the device via the GPI interface.
• GPI control: Manages device modes, including PC selection/BYOM activation.

SPECIFICATIONS INOGENI HOST BUTTON

Main feature
	Backlit switch button with hardware for tables
Physical details
Dimensions (W x L x H)	21 cm x 16 cm x 2 cm 6.5″ X 8.5″ X 1″
Power supply	Powered by external device
Weight	100 g (0.2 lbs)
Construction	Stainless
Mounting	Flush tabletop 53.95 mm [2.124 in] round hole
LED colour	White
LED resistance	No resistance in button Need to put an external resistance on the + connection if used with a system different than the TOGGLE ROOMS
Rated voltage	3 @ 24VDC
Maximum current	20mA

INCLUDED BY DEFAULT

• 1x button with assembled cable with screw and nut hardware
• 1x terminal block plug
• Installation Guide
