INOGENI Toggle USB 3.0 Switcher

INOGENI Toggle USB 3.0 Switcher

The Inogeni Toggle USB 3.0 Switcher is  an excellent tool to leave set up in a room ready to go, the Toggle will automatically switch to a laptop when connected, and then when the laptop is disconnected, it will switch back to the computer in the room, a simple and easy way for allowing visitors with their own laptop to access the USB devices in a room without having to connect to hubs and multiple ports, just connect one cable and you are ready to go.

The toggle can be set to switch automatically as above, and you can also switch between computers manually with a push button, or remotely via RS-232 connection or GPI. The included 12 V power supply not only powers the Toggle, but it also enables the Toggle to power the connected USB devices.

KEY FEATURES

• Switch Between 2 x USB 3.0 Host Systems
• 3 x USB Device Support
• Automatic, Manual, or Remote Control
• Can Power USB Devices
• Supports USB 2.0 and 3.0
• RS-232 and GPI Control

SPECIFICATIONS INOGENI Toggle USB 3.0 Switcher

Model	INOGENI TOGGLE
Dimensions (W x L x H)	70 x 83 x 23 mm
Power supply	12V
Power consumption	Up to 1.2A
Weight	113g
Package content	2 x USB 3.0 Type-B to Type-A cables. 1 x terminal block connection. 1 x 12V power supply.
Operating temperature	0° to 45° C (32° to 113° F)
Storage temperature	-40° to 105° C (-40° to 221° F)

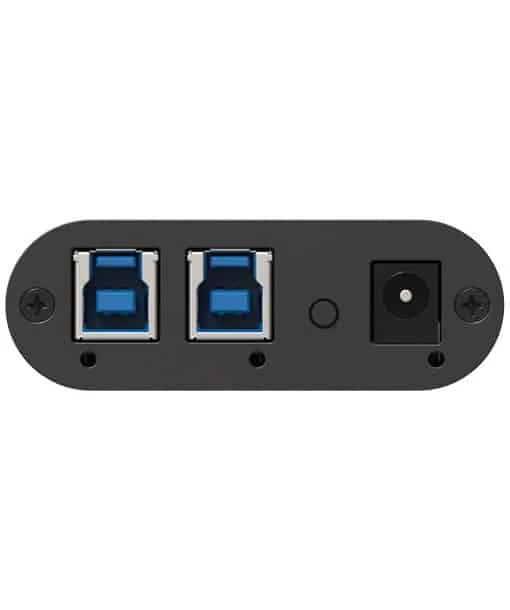

USB host ports	2 x Type-B USB 3.0/2.0 compatible.

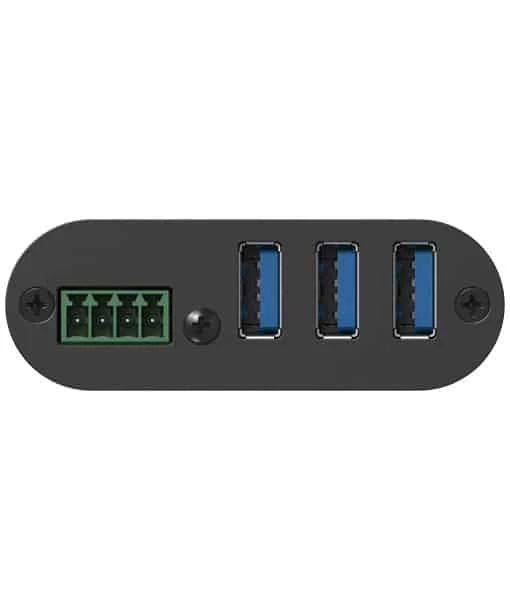

USB device ports	3 x Type-A USB 3.0/2.0 compatible.
Serial interface	Baud rate: 9600 For control purpose. See Serial communication protocol section for more details.
Push-button	Physical switch to select host.
GPIN	Contact-closure control. Controlled by open-drain IO (short to ground) or driven IO. Supported voltage range: 0V to +12V max.
Device current limit	1.8A shared current limit for all 3 x USB device ports. You can monitor current consumption through RS232 and our Control App.
Operating systems	Compatible with any operating system Windows 7 and above macOS 10.0 and above Linux
Upgrade	Field upgradable through our INOGENI Control App.
Control	Automatic, manual or remote control. Current configuration is saved onboard.

INCLUDED BY DEFAULT

• 2 x USB 3.0 Type-B to Type-A cables.
• 1 x terminal block connection.
• 1 x 12V power supply.
