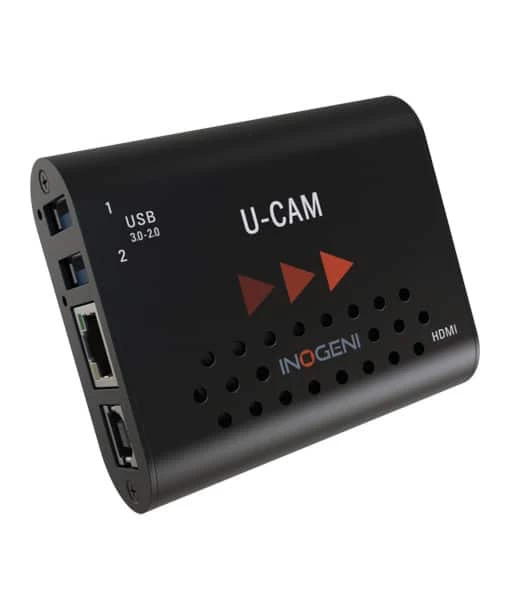

INOGENI U-CAM – USB 3.0 Camera to HDMI converter

The Inogeni U-CAM Converts & connects your USB camera and audio to an HDMI input – CODEC, matrix or display. A proven technology device that captures uncompressed USB 3.0/2.0 video (up to 4K) and audio,
then converts it to HDMI with embedded audio.

KEY FEATURES

• Capture video & audio from USB 3.0 and 2.0 cameras
• IP control
• Field upgradable
• RS-232 control
• Compatible with Windows, macOS and Linux laptops
• Video input capabilities
  -Up to 1080p60 uncompressed with USB 3.0 (YUYV)
  -Up to 4K30 uncompressed with USB 3.0 (I420/YV12 and NV12)
  -Up to 1080p30 MJPEG with USB 2.0/3.0
• Video output capabilities
  – HDMI 1.4 up to 4K30
  – USB 2.0 720p30 MJPEG

SPECIFICATIONS INOGENI U-CAM

USB INPUT
2x USB 3.0 inputs	Capture video and audio from USB 3.0 and 2.0 cameras Capture is done from a single camera at a time
Video capabilities	MJPEG: Up to 1080p30 using USB 2.0/3.0
Video capabilities	YUYV: Up to 1080p60 using USB 3.0, 1080p10 using USB 2.0
HDMI OUTPUT
Resolution	3840x2160p23.98/24/25/29.97/30 fps, 1080p50/60 fps, 720p50/60 fps
Connector	HDMI
Video passthrough to USB 2.0 connector
Output USB 2.0	Device will expose a UVC interface over USB 2.0 up to 720p30 MJPEG
COMPATIBILITY
Operating System	NO driver installation necessary
	Windows 7 and above (32/64-bit)
	macOS 10.10 and above,
	Linux (kernel v2.6.38) and above
Cameras Supported	Cameras (or video Source) with an USB output
Software Compatibility	UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation.
Dimensions & Weight	(L x W x H) 7,0cm x 8,3cm x 2,3cm   /   2.75” x 3.25” x 0.9”      138 g   /   0.30 lb
Operating Temperature	0° to 45° C (32° to 113° F)
Storage Temperature	-40° to 105° C (-40° to 221° F)
Relative Humidity	0% to 90% non-condensing
Power	12VDC
UPC Code	UPC Code: 040232609015
Origin	Canada
Warranty	2 years
IP INTERFACE
100 mbps
CAMERA CONTROL
Connectors



INCLUDED BY DEFAULT

• 1 x INOGENI U-CAM
