INOGENI VGA2USB3 – VGA To USB 3.0

INOGENI VGA2USB3 – VGA to USB 3.0 Converter

The INOGENI VGA to USB 3.0 Video Capture device allows you to capture uncompressed video with analog audio from a composite or component video source, or your computer’s VGA output on your computer for recording, editing, videoconferencing, and streaming applications. No driver installation is necessary and it will work on all motherboard and USB 3.0 chipsets. It features a VGA input (which will also accept component video), composite video input, 3.5mm analog stereo audio input, and a USB 3.0 output. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OS X, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. This capture card is backward compatible with USB 2.0 devices. However, due to bandwidth restrictions, the card will only be able to operate at resolutions below 1080p.

The converter supports SD and HDTV video formats up to 1080p60 and most computer graphic formats. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0. Analog stereo audio from the 3.5mm input is converted and output as two-channel LPCM. A USB 3.0 cable comes included.

KEY FEATURES

• VGA/CVBS capture to USB3.0
• VGA/component/composite capture to USB 3.0 (backward compatible with USB 2.0)
• Supports 1080p, 1080i, 720p, 480p, and 576p video formats
• Supports 1920 x 1200, 1280 x 1024, 1280 x 960, 1024 x 768, 800 x 600, and 640 x 480 graphic formats
• 3.5mm Analog Stereo Audio Support
• Fluid technology—internal frame buffers maximize frame rate regardless of computer
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion
• Customizable video processing functions
• Image controls: Brightness, contrast, saturation, and hue settings
• Bus powered from the USB port
• Compatible with Windows, macOS, Linux, and Android

SPECIFICATIONS INOGENI VGA2USB3

Model	Inogeni VGA2USB3

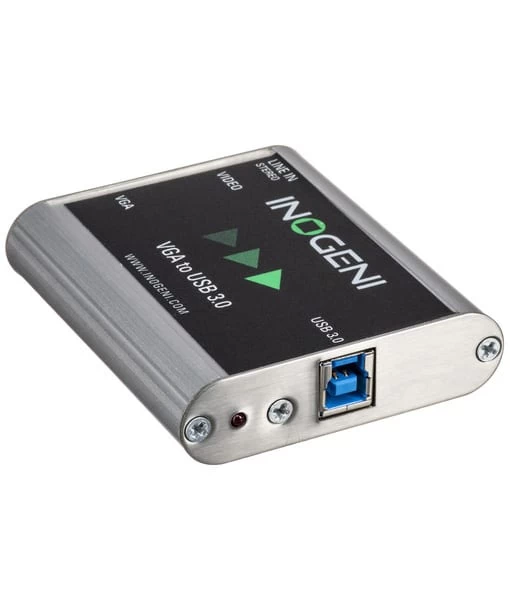

Host Connection	USB Type-B (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)
Input

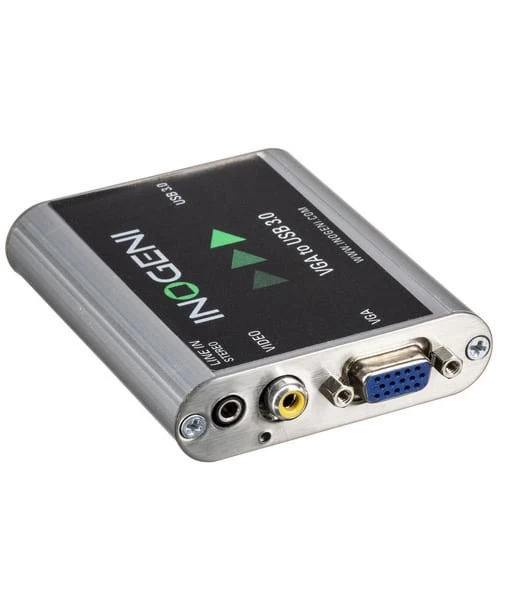

Video Input Connectors	1 x DE-15/DB-15 (VGA) Female 1 x RCA (Composite) Female
Input Video Format	Component / Composite / VGA (8-Bit 4:2:2 RGB) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 23.98/24/25/29.97/30/50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps WUXGA (1920 x 1200): 23.98/24/25/29.97/30/50/59.94/60 fps 480p: 23.98/24/25/29.97/30/50/59.94/60 fps 576p: 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Input Connectors	1 x 3.5 mm TRS Stereo Analog Female
General
OS Compatibility	Windows 7 or Later macOS 10.10 or Later Linux Android
Power	1 x USB Type-B (5 VDC) Input
Operating Temperature	0 to 45°C
Dimensions	8.13 x 7.37 x 1.91 cm
Weight	126 g

INCLUDED BY DEFAULT

• Inogeni VGA2USB3
