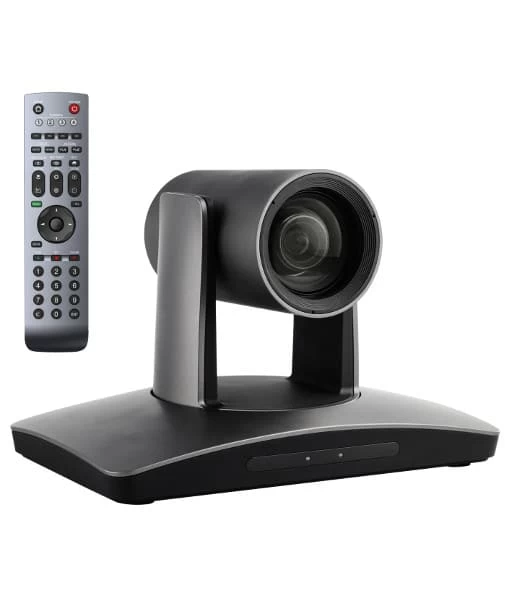

iSmart AMC-E200NV2 IP/SDI HD PTZ Camera

• H.265 video compression, dual stream
• Compatible with ONVIF, RTSP, RTMP protocols
• 72.5°FOV, 12x optical zoom, 12x digital zoom
• Simultaneously output of HD and SD videos
• OSD menu, support image flip
• IR remote controller
• Support standard VISCA & Pelco communication protocols
• RS232IN/IR & RS232OUT/RS485 control interface, support daisy chain
• Special mechanical PTZ driving system, ensure precise positioning



Specifications

Model	AMC-E200NV2
Image Sensor	1/2.8″ CMOS, 2.14MP
Video Standard (HD)	1080p/60, 1080p/30, 1080i/60, 720p/60, 720p/30 1080p/50, 1080p/25, 1080i/50, 720p/50, 720p/25
Focal	3.9mm – 46.8mm
Iris	F1.6 – F2.8
Optical Zoom	12X
Digital Zoom	12X
Field of View	72.5°- 6.3°
Focus	Auto, Manual, PTZ Trigger AF, One Push
Min. Illumination	0.5Lux(Color)，0.1Lux(B/W)
Shutter Speed	1/1 to 1/10.000s
Gain	Auto/Manual
White Balance	Auto, Indoor, Outdoor, One push, Manual, Automatic tracking, Sodium , Fluorescent
AE Control	Auto, Manual, Shutter Priority, Iris Priority, Intelligence
BLC	Yes
WDR	Yes
Noise Reduction	2D/3D
Pan & Tilt
Pan Range	-170°~ +170°
Tilt Range	-30°~ +90°
Pan Speed	0.1°~120°/s
Tilt Speed	0.1°~80°/s
Presets Number	256
OSD	Yes
Image Flip	Yes
Network
Max. Image Size	1920 × 1080, @60fps
Video Compression	H.265, H.264
Audio Compression	AAC
Protocol	HTTP, RTSP, RTMP, RTP, TCP, UDP, ONVIF
Dual Stream	Support
Simultaneous Users	Up to 10 users
Interface
Video Output(HD)	DVI-D, HD-SDI
Control Interface	RS-232IN/IR, RS-232OUT/RS-485
Ethernet	RJ45, 100M
General
Control Protocol	VISCA and Support Daisy Chain, Pelco-D, Pelco-P
Address	0~63
Power Supply	DC12V
Dimension	243mm x 145mm x 163mm
Weight	1.2KG
Body Colour	Grey
