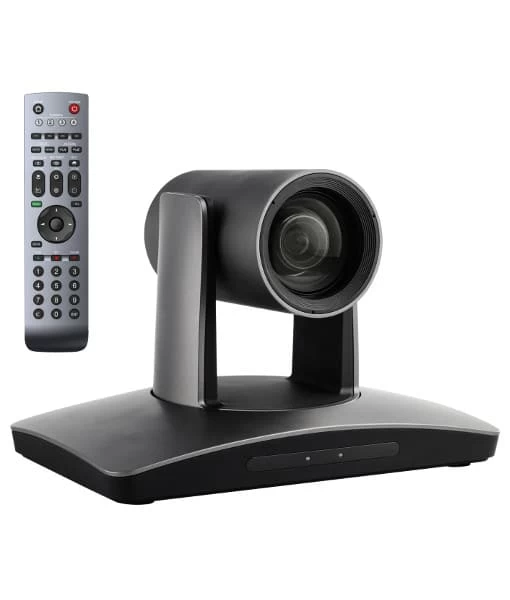

iSmart USB HD PTZ Camera

The iSmart USB 3.0 HD PTZ Camera is an easy to use video conferencing camera that can be installed in every boardroom. Just plug-and-play through USB or DVI

Features

• Up to 72.5°FOV;
• USB3.0 interface, raw data output;
• Support standard UVC protocol;
• Up to 1080p60 HD video format;
• Up to 12x optical zoom, 12x digital zoom;
• With OSD menu, supports image flip;
• Support standard VISCA & Pelco communication protocols;
• RS232IN/IR & RS232OUT/RS485 control interface, support daisy chain;
• Special mechanical PTZ driving system, ensure precise positioning.

Specifications

Model	AMC-E200U3	AMC-E210U3
Image Sensor	1/2.8″ CMOS, 2.14MP
Video Standard	1920x1080P/60/50/30/25/20/15/10/5 1280x720P/60/50/30/25/20/15/10/5 1024x768P/60/50/30/25/20/15/10/5 800x600P/60/50/30/25/20/15/10/5 640x480P/60/50/30/25/20/15/10/5
Focal	3.9mm – 46.8mm	4.7mm – 47mm
Iris	F1.6 – F2.8	F1.6 – F3.0
Optical Zoom	12X	10X
Digital Zoom	12X
Field of View	72.5°- 6.3°	60.9°- 6.43°
Focus	Auto, Manual, PTZ Trigger AF, One Push
Min. Illumination	0.5Lux(Color)，0.1Lux(B/W)
Shutter Speed	1/1 to 1/10.000s
Gain	Auto/Manual
White Balance	Auto, Indoor, Outdoor, One push, Manual, Automatic tracking, Sodium , Fluorescent
AE Control	Auto, Manual, Shutter Priority, Iris Priority, Intelligence
BLC	Yes
WDR	Yes
Noise Reduction	2D/3D
Pan & Tilt
Pan Range	-170°~ +170°
Tilt Range	-30°~ +90°
Pan Speed	0.1°~120°/s
Tilt Speed	0.1°~80°/s
Presets Number	256
OSD	Yes
Image Flip	Yes

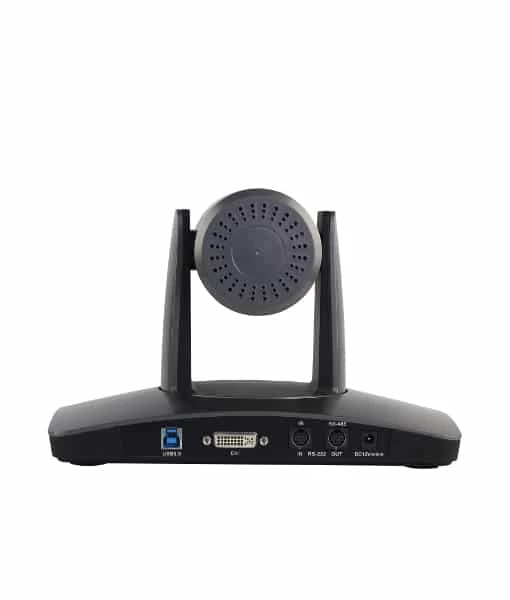

Interface
Video Output	USB3.0, DVI-D
Control Interface	USB3.0, RS-232IN/IR, RS-232OUT/RS-485
General
Control Protocol	VISCA and Support Daisy Chain, Pelco-D, Pelco-P
Address	0~63
Power Supply	DC12V
Dimension	243mm x 145mm x 163mm
Weight	1.2KG
Body Colour	Grey
