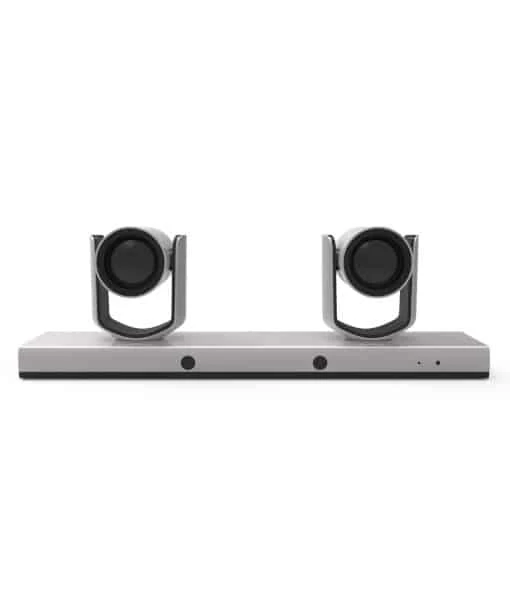

ISmart AMC-G200T Speaker Tracking Camera

iSmart AMC-G200T Speaker Tracking Camera

The iSmart AMC-G200T speaker tracking camera helps to achieve intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technology, it can automatically switch between
close-up image to frame speakers and full view image to frame the whole room,it frees of camera operation during a meeting and enables meeting attendees to focus more on discussion.



KEY FEATURES iSmart AMC-G200T

• 1/2.8” Exmor CMOS, 2MP;
• 12x optical zoom up to 72.5° Fov;
• Simultaneously output 3G-SDI,HDMI, Ethernet, Up to 1080p60 resolution;
• Support H.264/H.265 video compression;
• Implemented with both 3D voice positioning technology,body detection and recognition algorithm,
• it can precisely frame the speakers;
• Automatically switch between close-up image for speakers and wide angle image for meeting participants.

SPECIFICATIONS iSmart AMC-G200T

Model	AMC-G200T
HD Camera
Image Sensor	1/2.8″CMOS, 2.14MP
Signal Format(SDI)	1080P60, 1080P50, 080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50
Focal	f=3.9mm – 46.8mm
Iris	F1.6 – F2.8
Zoom	Optical: 12X; Digital: 12X
Field of View	72.5°- 6.3°
Focus	Auto, Manual, PTZ Push, One Push
Min. Illumination	0.5lux(Color), 0.1lux(B/W)
Shutter Speed	1/25 – 1/10,000s
AGC	Auto / Manual
White Balance	Auto, Indoor, Outdoor, One Push, Manual, Auto Track
AE Control	Auto, Manual, Shutter Priority, Iris Priority
S / N	≥50dB
DNR	2D / 3D
BLC	≥Support
PTZ
Pan Range	-90°~ +90°
Tilt Range	-30°~ +90°
Pan Speed	0.1° ~ 120°/s
Tilt Speed	0.1° ~ 80°/s
Presets Number	256
OSD	Yes
Image Flip	Yes
Network
Max.Image Size	1920 * 1080@60fps
Video Compression	H.265, H.264
Audio Compression	AAC
Protocol	HTTP, RTMP, RTSP, RTP, TCP, UDP, ONVIF
Dual Stream	Support
Interface
Video Output	1×HDMI Interface, 1×3G-SDI Interface
Audio Input	1×LINE IN
Audio Output	1×LINE OUT
Network Interface	1×10M/100M
USB Interface	1×USB2.0
Control Interface	1×RS-232
General
Control Protocol	PELCO-D, VISCA, PELCO-P
Address	0~ 63
Power Supply	DC12V
Power Consumption	＜50W
Working Temp	0°C ~ +40°C
Storage Temp	-20°C ~ +60°C
	500mm x 163mm x 145mm
Weight	3KG



INCLUDED BY DEFAULT

• iSmart AMC-G200T
• Power adapter
• Remote controller
• Power Cable
