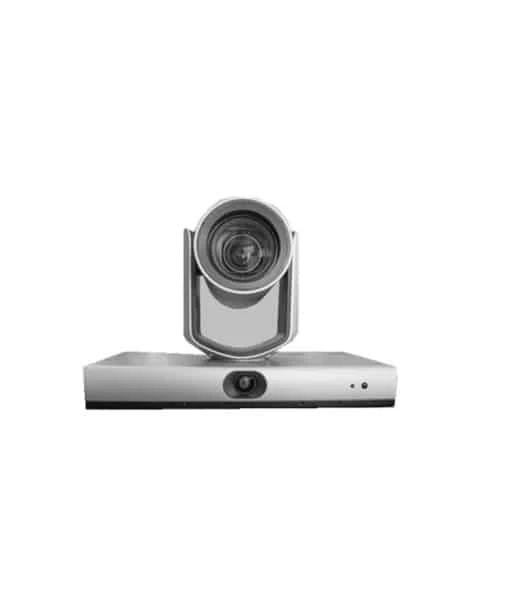

ISmart AMC-G200TH Speaker Tracking Camera

iSmart AMC-G200TH Speaker Tracking Camera

The iSmart AMC-G200TH speaker tracking camera helps to achieve intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technology, it can automatically switch between close-up image to frame speakers and full view image to frame the whole room, it frees of camera operation during a meeting and enables meeting attendees to focus more on discussion.



KEY FEATURES iSmart AMC-G200TH

• Camera: 1/2.8” 2MP CMOS, 12X optical zoom, horizontal FOV up to 72.5degree;
• Full view EPTZ camera: 1/2.5” 8.57MP CMOS, 4X digital zoom, horizontal
• FOV up to 98degree & an EPTZ 4K full-view camera;
• Resolution up to 1080p60;
• MJPEG/H.264/H.265 video compression;
• Support HDMI, USB2.0, 3G-SDI & network interfaces. Implemented with audio positioning and intelligent face detection algorithm;
• Support echo cancellation;
• Auto framing of all meeting participants;
• Auto switch between close-up image and EPTZ full-view image.

SPECIFICATIONS iSmart AMC-G200TH

Model No.	AMC-G200TH
Image Sensor	1/2.8″Exmor CMOS, 2 MP
Video Standard(HD)	1080p60,1080p50,1080p/30,1080p/25,1080i/60,1080i50,720p/60,720p/50
Focal	f = 3.9mm – 46.8mm
IRIS	F1.6 – F2.8
Zoom	Optical: 12X, Digital: 12X
Field of View	72.5° – 6.3°
Focus	Auto, Manual, PTZ Trigger AF, One push
Min.Illumination	0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed	1/25 – 1/10,000s
AGC	Auto/Manual
White Balance	Auto, Indoor, Outdoor, One push,Manual, Auto Track
AE Control	Auto, Manual, Shutter Priority, Iris Priority
S/N Ratio	Above 50dB
DNR	2D/3D
BLC	Support
Full-View Camera
Image Sensor	1/2.5″4K CMOS, 8.57MP, 2.8mm
Lens	Prime lens, 4X Digital Zoom
Field of View	98°
Video Adjustments	Support EPTZ
PTZ
Pan/Tilt Range	-90° – +90°; -30° – +90°
Preset Number	64
Network
Max,Image Size	1920×1080 @ 60fps
Video Compression	H.265,H.264
Audio Compression	AAC
Protocol	HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Steam	Support 1 Tracking, 1 Full-view, 1 Switching, three steams in total

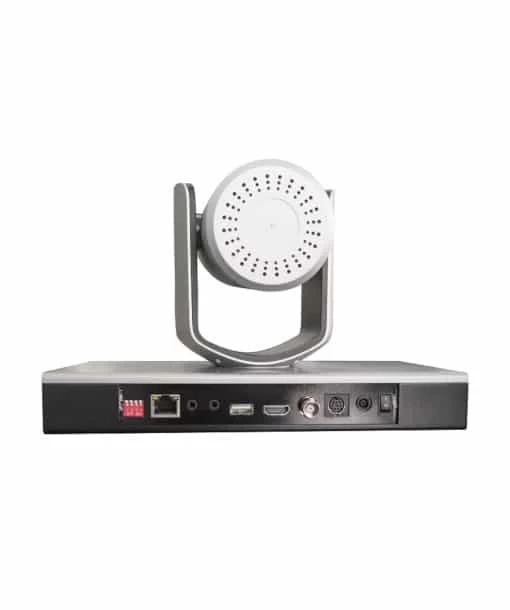

Interface
Video Output Audio Input	1 x HDMI interface, 1 x 3G-SDI Interface, 2 x LINE IN, including one channel with EC
Audio Output	1 x Line out
Network Interface	1 x 10M/100M
USB Interface	1 x USB2.0, Support UVC/UAC
Control Interface	1 x RS-232
General
Control Protocol	VISCA
Address	1 – 6
Power Supply	DC12V
Power Consumption	Below 20W
Working Temp	0°C – +40°C
Storage Temp	-20°C – +60°C
Dimension	245mm x 145mm x 165mm
Weight	Below 2kg



INCLUDED BY DEFAULT

• iSmart AMC-G200TH
• Power adapter
• Remote controller
• Power Cable
