ISmart BLS-200 Board Writing Detection Camera

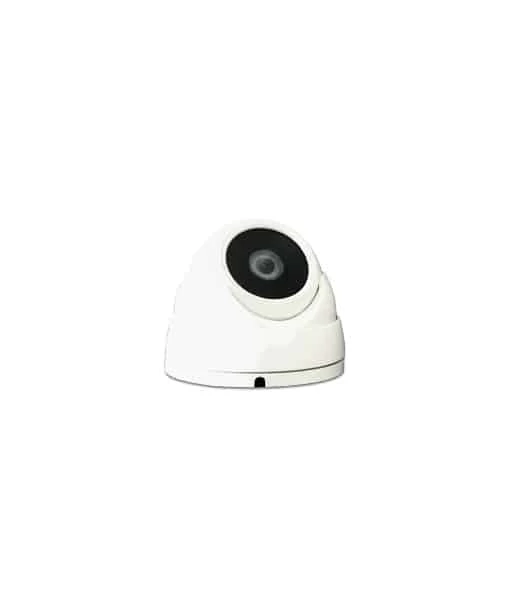

iSmart BLS-200 Board Writing Detection Camera

The iSmart Board Writing Detection Camera detects actions on a whiteboard and, triggers the lecturer tracking camera to automatically move to pre-defined board position and start tracking lecturer there. If undetected, tracking camera can either stay or return to pre-defined position.

SPECIFICATIONS iSmart BLS-200 Board Writing Detection Camera

Model	BLS-200
Image Sensor	1/3″ Exmor CMOS
Effective Pixel	4.00MP
Min. Illumination	[email protected]
S/N Ratio	≥50dB
Gain	Auto
Shutter Speed	1/30 – 1/10,000s
White Balance	Auto
Focal	2.4mm
View Angle	90°(Wide), 50°(Tele)
Aperture	F2.0
Video Compression	H.264
Kbps	32Kbps – 8Mbps
Video Frame Rate	720p30, 1080p30
Ethernet	10-100M, Support POE
Power Supply	DC12V, POE
Power Consumption	＜5W
Working Temp	0°C ~ +40°C
Humidity	≤90%（No Condensation）
Dimension	φ93mm x 81mm
Weight	0.33Kg

INCLUDED BY DEFAULT

• iSmart BLS-200
• Power adapter
• Power Cable
• Mounting screws
