ISmart LTC2-NA2001NV4 USB 3G-SDI Auto Tracking PTZ Camera (B-STOCK)

iSmart LTC2-NA2001NV4 USB 3G-SDI Auto Tracking PTZ Camera

The iSmart LTC2-NA2001NV4 is an high quality tracking camera for lecture capture or conference recording. The iSmart tracking camera features IP connections to provide remote management and advanced software for seamless operation. With enclosed software you are able to customize advanced tracking parameters to meet your needs.

KEY FEATURES iSmart LTC2-NA2001NV4

• USB2.0 Output
• Precise lock and track capability
• Unmanned and standalone tracking
• Smart tracking performance
• Easy connection, configuration and communication
• Streaming Valley is Official iSmart Partner offering support and training

SPECIFICATIONS iSmart LTC2-NA2001NV4

Model	LCT2-NA2001NV4
HD Camera
Image Sensor	1/2.8″Exmor CMOS, 2.14MP
Focal Lens	f=3.9mm – 46.8mm
Iris	F1.6 – F2.8
Zoom	Optical: 20X; Digital: 12X
Field of View	59.2°- 2.9°
Focus	Auto, Manual, PTZ Trigger AF, One Push
Min. Illumination	0.5 lux (Color), 0.1lux (B/W)
Shutter Speed	1/1 – 1/10,000s
Gain	Auto / Manual
White Balance	Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking
Exposure Control	Auto, Manual, Shutter Priority, Iris Priority
Full View Camera
Image Sensor	1/2.8″ Exmor CMOS
Effective Pixel	2.14MP
White Balance	Auto
Exposure	Auto
Focus Lens	2.4mm
Field of View	Horizontal:68°, Vertical:41°
PTZ
Pan Range	-170° ~ +170°
Tilt Range	-30°~ +90°
Pan Speed	0.1° ~ 120°/s
Tilt Speed	0.1° ~ 90°/s
Presets	256
Control Interface	RS-232/RS-485/USB2.0
Ethernet	Rj45 100M
Control Protocol	PELCO-D / VISCA / UVC
Network
Image Resolution	1920 * 1080@60fps
Video Format	1080P60 / 1080P50 / 1080P30 / 1080P25 1080I60 / 1080I50 / 720P60 / 720P50
Image Compression	H.264
Audio Compression	AAC
Network Protocol	RTMP, RTSP, TCP, UDP, ONVIF, NDI|HX2
Simultaneous Users	Up to 10 users
Dual Stream	Support

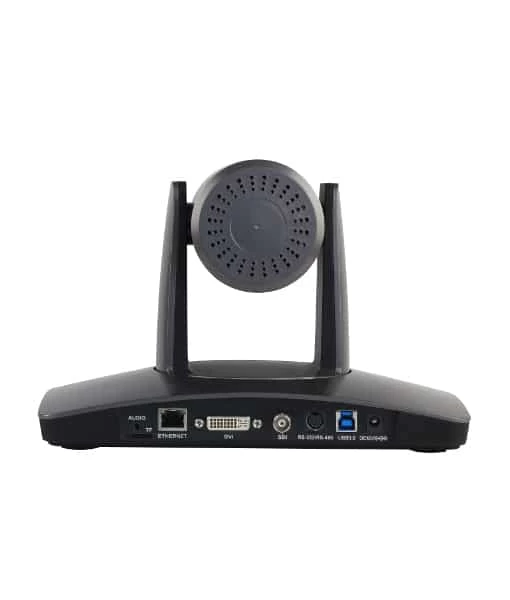

Video Interface	3G-SDI / DVI-D / USB2.0 / IP/ NDI|HX2
General
Power Supply	DC12V
Power Consumption	＜20W
Working Temperature	0°C ~ +40°C
Storage Temperature	-20°C ~ +60°C
Dimension	243mm x 145mm x 163mm
Body Color	Grey

INCLUDED BY DEFAULT

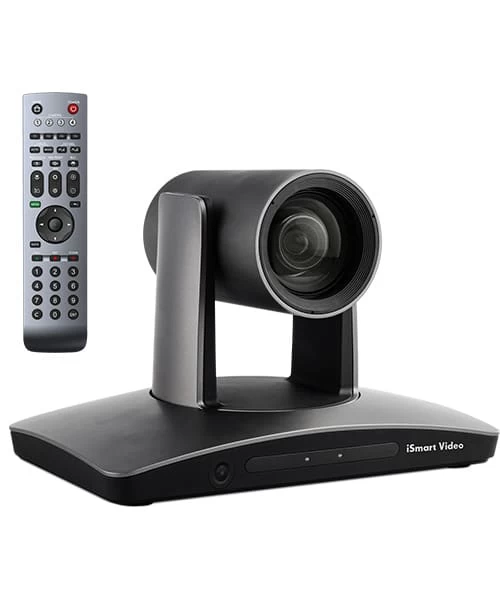

• iSmart LTC tracking camera
• Power adapter
• Remote controller
• Power Cable
