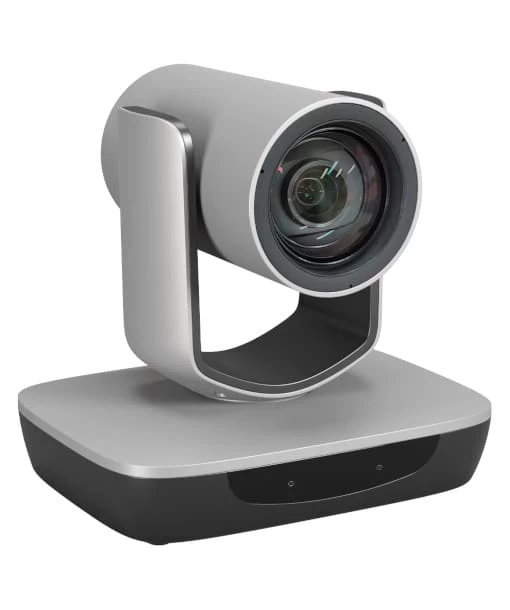

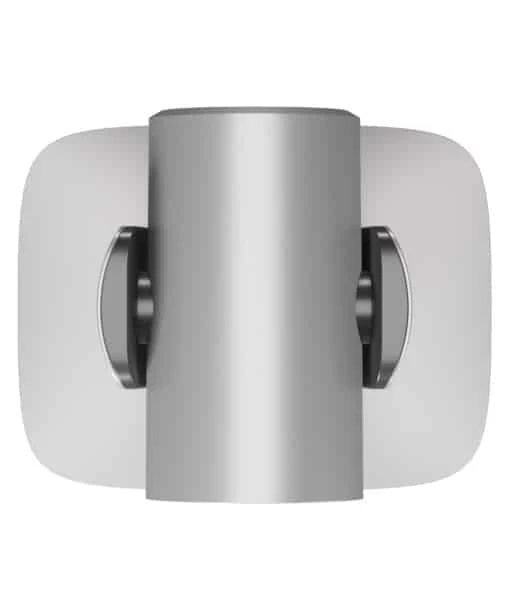

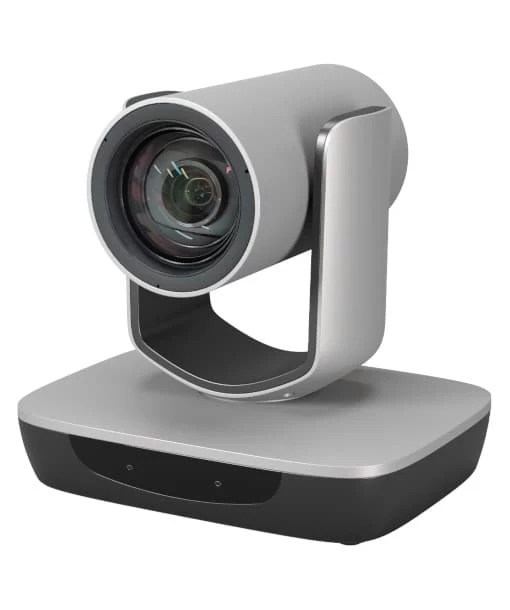

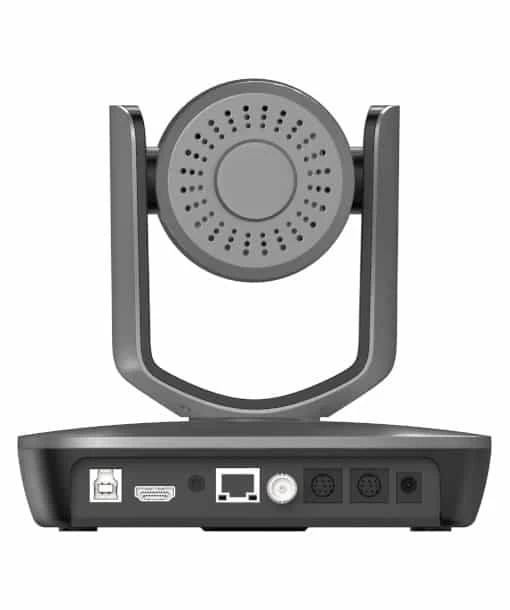

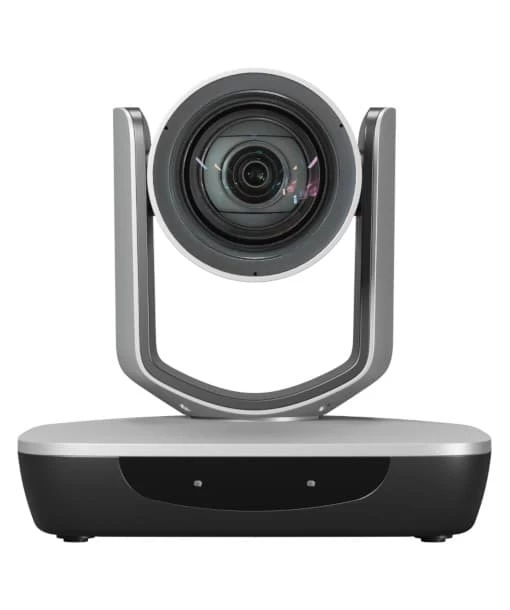

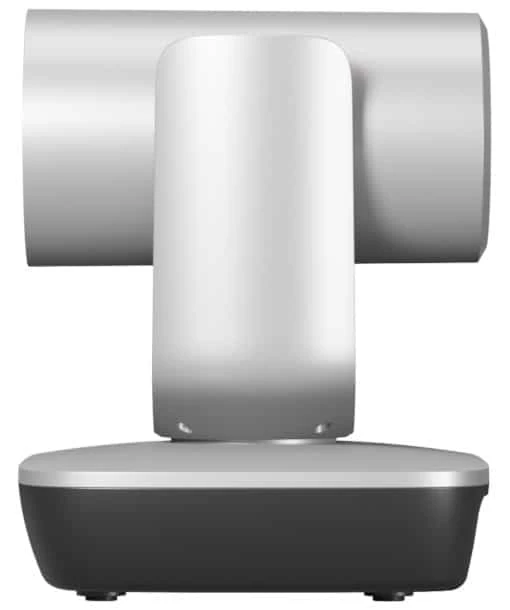

iSmart LTC5-NA2001N NDI|HX2 Full HD Tracking Camera

Based on industry-leading face detection and lock tracking algorithm the iSmart LTC5-NA2001N realizes smooth tracking performance, free from interference of other moving objects, even if the target turns around, stands still for a long time. Other small gestures will neither affect the tracking. Track lecturer all around the classroom, even if lecturer walks into student area. Auto adjust as per the height of lecturer.

KEY FEATURES iSmart LTC5-NA2001N

• 1080P60
• H.265/H.264 video compression
• Support dual stream
• NDI®|HX
• Support HDMI, 3G-SDI, Ethernet, USB 3.0
• 1 channel audio LINE IN, AAC compression
• POE

SPECIFICATIONS iSmart LTC5-NA2001N

Model	LTC5-NA2001N
Image Sensor	1/2.8″ CMOS, 214MP
Optical Zoom	20X
Digital Zoom	12X
Focal	f=4.7mm ～ 94 mm
Iris	F1.6 ～ F3.5
FOV	59.5° ~ 2.9°
Focus	Auto, Manual, PTZ Trigger, One Push Trigger
Exposure	Auto, Manual, Shutter Priority, Iris Priority
Shutter Speed	11~ 1/10,000s
AGC	Auto, Manual
White Balance	Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking
S/N	≥50dB
Digital Noise Reduction	2D/3D
BLC	Yes
Wide Dynamic	Yes
PTZ
Pan Angle	-170° ~ +170°
Tilt Angle	-30° ~ +90°
Pan Speed	0.2° ~ 100°/s
Tilt Speed	0.2° ~ 60°/s
Preset Number	64
SDI/ RJ45/HDMI Output
Video output	1080P60/P50/P30/P25，1080I60/I50, 720P60/P50
Network
Resolution	Max. 1080P60
Image Compression	H.265, H.264
Audio Compression	AAC
Protocols	HTTP, TCP, UDP, RTSP, RTMP, ONVIF
Dual Stream	Support
Interface
Power	DC12V
HDMI Interface	1×HDMI1.4 output，Max.1080P60
3G-SDI Interface	1×3G-SDI output，Max.1080P60
USB Interface	1×USB2.0 Type-B
Network Interface	1×10M/100M RJ-45，optional POE/NDI/HX
Audio Interface	1×LINE IN
Control Interface	1×RS-232 IN/IR, 1×RS-232 OUT, 1×RS-485
General
Protocol	VISCA, PELCO-P, PELCO-D
Power Consumption	<15W
Working Temperature	0 ~ 40°C
Relatively Humidity	10% ~ 90 %
Dimensions (W×H×D)	176mm×169mm×136mm
Weight	<1.1KG
Color	Grey



INCLUDED BY DEFAULT

• iSmart LTC5-NA2001N
• Power adapter
• Remote controller
• Power Cable
