ISmart LTC6-G500S 4K60 Auto Tracking PTZ Camera

iSmart LTC6-G500S 4K60 Auto Tracking PTZ Camera

The iSmart LTC6-G500S is a 4K UHD tracking camera, its fast autofocus lens combined with smart algorithm can efficiently locate the tracked object, quickly focus, output HD pictures, to improve learning efficiency.

KEY FEATURES iSmart LTC6-G500S

• up to 4K60
• Precise lock and track capability
• Unmanned and standalone tracking
• Smart tracking performance
• Easy connection, configuration and communication
• HDMI 2.0, USB2.0 Output, 3G-SDI
• PoE
• Streaming Valley is Official iSmart Partner offering support and training



SPECIFICATIONS iSmart LTC6-G500S

Model	LTC6-G500S
Image Sensor	1/2.8″CMOS, 8.46MP
Lens	12X; f=3.4mm～40.3mm; F1.8 (Wide)～3.6 (Tele)
Field of View	81°～ 7.6°
Focus	Auto, Manual
White Balance	Auto, Manual
Exposure Control	Auto, Manual
S/N	≥50dB
DNR	2D/3D
BLC	Support
PTZ
Pan Range	-130° ～ +130°; 0.2° ～ 80
Tilt Range	-30° ～ +90°; 0.2° ～ 60°/s
Image Flip	Support
Presets	64

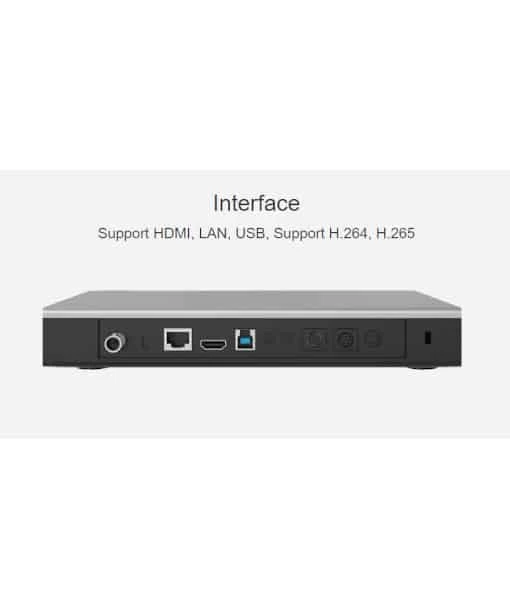

Interface
HDMI 2.0	4KP60/P50/P30/P25, 1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50
Network	RJ45 (10M/100M), POE; 1.Support 4KP30/P25, 1080P30/P25, 720P30/P25, 360P30/P25 2.Image compression H.264/H.265
USB 2.0	UVC 1.1, Image compression H.264/MJPEG; support 4KP30/P25, 1080P30/P25, 720P30/P25, 360P30/P25
3G-SDI	1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50
Audio Input	LINE IN, 3.5mm audio interface
Control Interface	RS-232 IN,  RS-232 OUT
DIP Switch	Rotating DIP switch to set video format
Power	DC12V
General
Control Protocol	VISCA
Power Consumption	＜18W
Working Temperature	Temperature: 0 ～ 40°C, Relative Humidity: 10%RH ～ 90 %RH
Storage Temperature	Temperature: -20℃ ～ +60°C, Relative Humidity: 10%RH ～ 95 %RH
Dimension	243mm x 145mm x 163mm
Weight	2KG
Body Color	Grey

INCLUDED BY DEFAULT

• iSmart LTC6-G500S
• Power adapter
• Remote controller
• Power Cable
• RS232 Cable
• Manual
