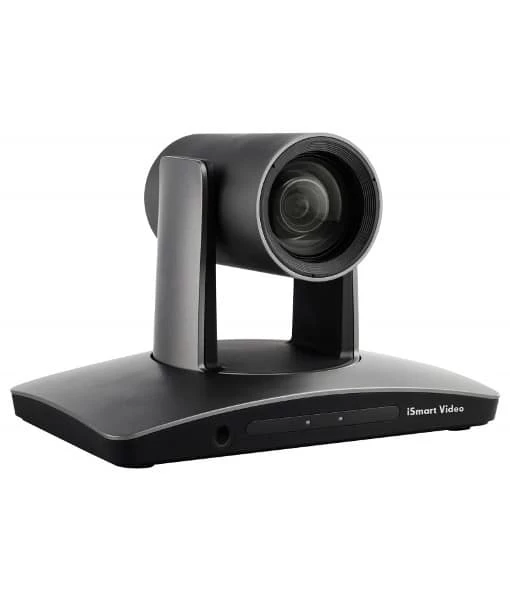

iSmart Room Tracker PTZ Camera for Huddle Room

The iSmart Video Room Tracker AMC2-E200TV2 has two cameras, the small HD wide angle camera detects conference attendee(s), it covers a horizontal FOV of 86 degree; the tracking camera frames the appropriate position based on numbers of attendee(s), it has 12x optical zoom. The RoomTracker itself does everything, free of manpower or any additional equipment, it is easy enough to install and manage.

The RoomTracker keeps constantly detecting attendee(s) in the conference room, then automatically pan tilt and zoom to the appropriate positions to frame all attendee(s); once number of attendee(s) changes, the camera will adjust framing positions accordingly.

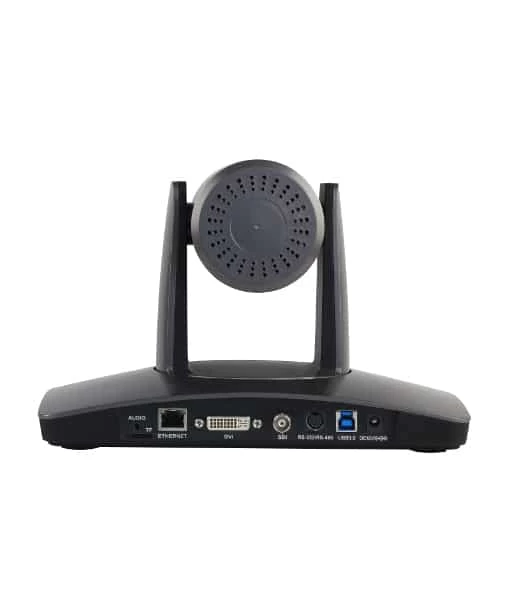

The RoomTracker comes with USB3.0, HD-SDI, DVI-D video interfaces and RS232 / RS485 control interface running Visca / Pelco-D protocols, giving the RoomTracker powerful compatibility with your existing video conferencing systems.

KEY FEATURES

• Automatically Frame Meeting Participants
• Standalone operation
• Plug and Play USB Connectivity
• 3G-SDI, USB3.0, DVI-D outputs
• 12x optical zoom

SPECIFICATIONS ISMART ROOM TRACKER PTZ

Model: AMC-E200TV2
Image Sensor	1/2.8″ Exmor CMOS, 2.14MP
Zoom	Optical: 12X; Digital: 12X
Lens	f=3.9mm – 46.8mm; F1.6 – F2.8
Field of View	72.5°- 6.3°
Focus	Auto / Manual / PTZ Trigger AF / One Push
Min. Illumination	0.5lux(Color), 0.1lux(B/W)
Shutter Speed	1/1 to 1/10,000s
AGC	Auto / Manual
White Balance	Auto / Indoor / Outdoor / One Push / Manual / Automatic Tracking
AE Control	Auto / Manual / Shutter Priority / Iris Priority
OSD	English
S/N Ratio	≥50dB
Full View Camera
Image Sensor	1/2.8″ CMOS
Effective Pixel	2.14MP
White Balance	Auto
Exposure	Auto
Field of View	Horizontal: 86°; Vertical: 52°
Lens	2.4mm
Pan & Tilt
Pan Range	-170°~ +170°/s
Tilt Range	-30°~ +90°/s
Pan Speed	0.1° ~ 120°/s
Tilt Speed	0.1° ~ 90°/s
Presets Number	256
Control Interface	RS-232 / RS-485 / USB3.0
Ethernet	RJ45, 100M
Control Protocol	PELCO-D / VISCA / UVC
Network
Image Resolution	1920 * 1080@60fps
Video Compression	H.264
Audio Compression	AAC
Protocol	RTMP / RTSP / TCP / UDP / ONVIF
Simultaneous Users	Up to 10 users
Dual Stream	Support
Video Interface	3G-SDI / DVI-D / USB3.0
Video Format	1080P60 / 1080P50 / 1080P30 / 1080P25 / 1080I60 / 1080I50 / 720P60 / 720P50
General
Power	DC12V
Working Temperature	0°C ~ +40°C
Storage Temperature	-20°C ~ +60°C
Dimension	243mm x 145mm x 163mm
Weight	1.2KG
Body Colour	Grey
