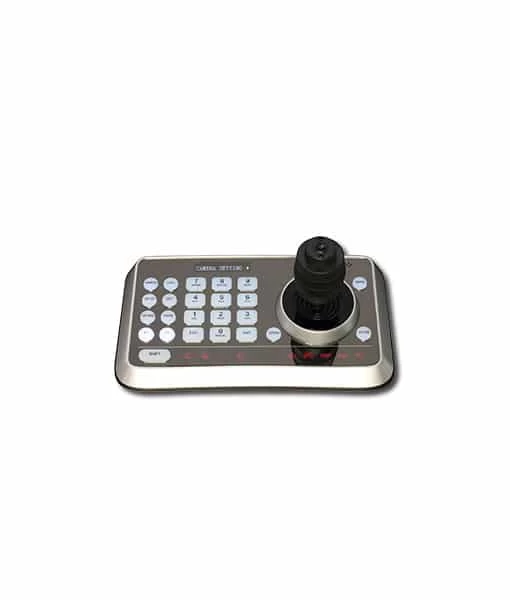

Ismart Video CKB-02 Serial PTZ Joystick Controller

Ismart Video CKB-02 serial PTZ Joystick Controller

The iSmart CKB-02 serial controller PTZ joystick can be used with a broad range of camera’s.

The easy-to-use and affordable PTZ joystick controller is designed for PTZ control of VISCA and PELCO-D, PELCO-D compatible PTZ cameras. The joystick controller can be connected with a simple serial connection cable using the included crownstone connection. Use daisy-chaining if you would like to control multiple cameras with this PTZ controller.

KEY FEATURES

• 4D joystick for pan/tilt/zoom/focus control
• Compact design
• High brightness OLED display
• Auto backlight keys
• Shortcut keys customisation
• Pelco D/P Support
• VISCA Support
• Multilevel Protection for unauthorised operation

SPECIFICATIONS



Model	CKB-02
Comm. Interface	RS-485, RS-232
Protocol	Pelco-D, Pelco-P, VISCA
Address	0~255
Display	OLED
Joystick	4-axis (Left/Right, Up/Down, ZoomIn/Zoom Out, Focus Near/Focus Far)
Power	DC12V
Power Consumption	<2W
Working Temperature	0℃ ~ 40℃
Storage Temperature	-20℃ ~ +50℃
Humidity	≤90% (no condensation)
Dimensions	200mm(L) x 120mm(W) x 103mm(H)
Net Weight	0.5kg
Baud Rate	2400bps, 4800bps, 9600bps,19200bps, 38400bps

INCLUDED BY DEFAULT

• iSmart CKB-02 PTZ Joystick Controller
