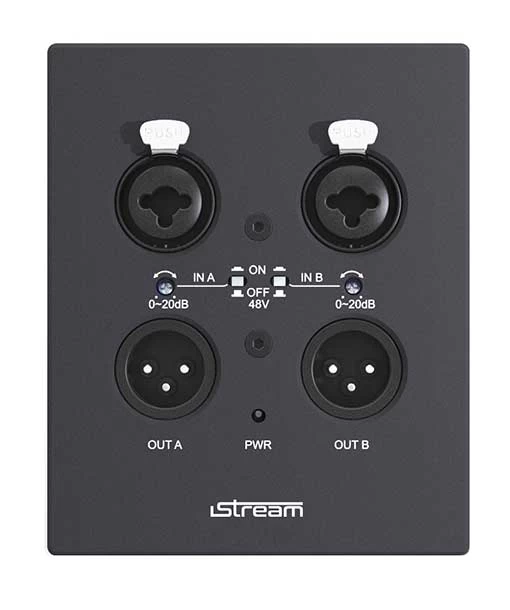

iStream AIO DW2X2 Dante Wall Plate XLR 2CH In x 2CH Out

The iStream AIO DW2X2 Dante Wall Plate Audio Network Interface facilitates analog input and output signals to Dante for easy audio routing including analog input phantom power support.

KEY FEATURES

• Connect your Analog Audio to Dante network
• Phantom power supply switchable 2x
• PoE
• Dual Channel input front gain adjustment (manual adjustment)
• Dual Channel 2-in-1 Canon input interface
• Embedded box installation

SPECIFICATIONS AIO DW2X2 DANTE WALL PLATE XLR

iStream
Model	AIO DW2X2
Sampling Rate	48KHz
Analog Channels	2 channels balanced input 2 channels balanced output
Dante Channels	2 inputs + 2 outputs
Phantom power supply	48V
THD + N	≦0.005% @4dBu
Phantom power supply (per input)	48V
Frequency response	20~20KHz, ±0.5dB
Input impedance (balanced)	20K ω
Output impedance (balanced)	100 ω
Channel isolation	100dB@1kHz
Common mode rejection	80dB@80Hz
Maximum line input	20dBu
Maximum line output	11dBu
Background noise	-90DBU
Power Supply	PoE power supply
Operating Temperature	-10 – 70℃
Dimensions	142(W) X 157(D) X 46mm(H)

INCLUDED BY DEFAULT

• iStream AIO DW2X2 Dante Wall Plate
