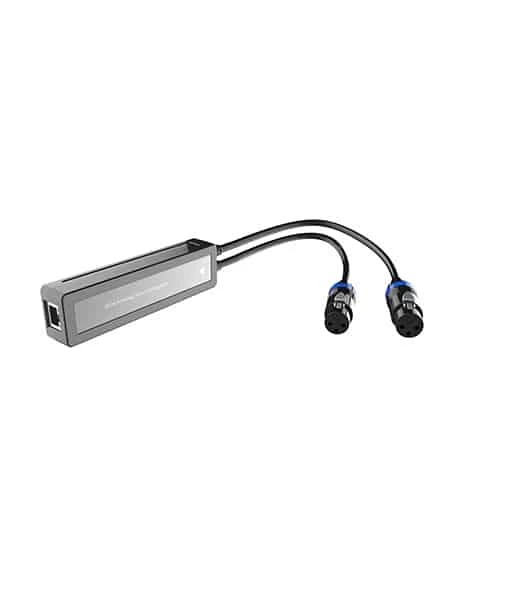

iStream AIO IACI1 2-Channel XLR Analog Input Adapter for Dante Audio Network

The iStream AIO 2-Channel Analog XLR Input Adapter for Dante supports two analog signal inputs converting to Dante digital signal output. Alllowing you to use the analog gear you already own with your Dante audio network and Streaming Gear. It provides a cost-effective solution for adapting analog mixers, DI boxes, analog compressors and equalizers, delivering the interoperability, performance, and scalability of Dante network connectivity.

The compact AIO is automatically discovered by the network and is ready to use when connected. It features two balanced line-level inputs equipped with XLR connectors and delivers high-quality audio at up to 24-bit/96 kHz with configurable gain and attenuation, low total harmonic distortion, and a 20 Hz to 20 kHz frequency response.

The AIO supports Dante audio over IP and AES67 RTP transport formats, and is compatible with Dante Domain Manager (DDM).

KEY FEATURES

• Cost-effective solution for adapting analog gear to your Dante network
• Plug-and-play operation
• Replaces multiple analog or multi-core cables with only a network cable
• Balanced, line-level dual-channel analog input adapter
• Compact design, easy to use
• Sample rates up to 96 kHz
• Extends uncompressed high-quality audio signal with near-zero latency
• Wide dynamic range
• High signal-to-noise ratio
• Low total harmonic distortion
• Configurable gain and attenuation
• Dante Audio over IP and AES67 RTP transport formats
• Power over Ethernet (PoE) support
• Compatible with Dante Domain Manager (DDM)

APPLICATIONS

• Connect analog mixers and consoles to a Dante network
• Connect your Streaming Gear to a Dante network
• Connect wireless mic receiver to a Dante network

SPECIFICATIONS

iStream
Model	AIO IACI1
Channel	2ch analog inputs, 2ch dante output
3 PIN XLR	2 x XLR Male connector
Network	1 x RJ45 port
Analog audio interface	XLR
Dante Network audio interface	RJ45
Frequency response	20Hz to 20kHz (-/+ 0.5dB)
Maximum signal level (balanced)	+18dBu / +4dBu / 0dBu
Dynamic range	> 100dB
SNR (signal to noise ratio)	> 100dB
THD (total harmonic distortion)	< 0.01% (+4dBu)
Size (LxWxH)	652mm x 32mm x 22mm
Weight	0.2 kg

SETUP

• Download and install the Dante controller from audinate website
• Connect the device to the switch using the Dante network with a network cable
• Connect your audio device through the XLR interface
• Search for devices in Dante controller software, and select your device to configure
• On the routing page match input with output column
• Once setup and configured your iStream Dante audio device will remember and save the settings

INCLUDED BY DEFAULT

• iStream AIO 2-channel analog xlr input adapter for Dante
