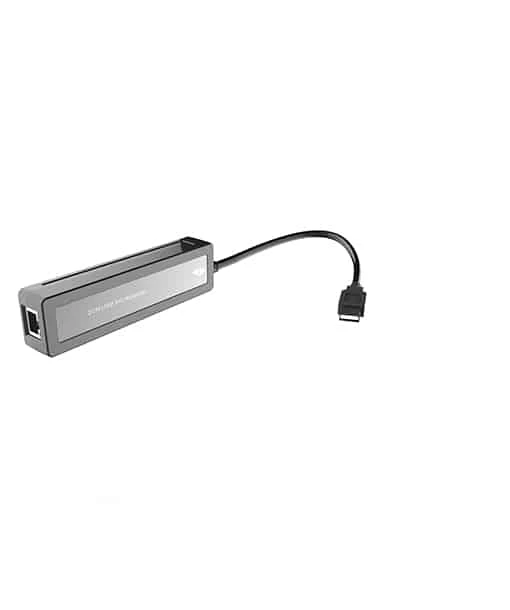

iStream AIO IACU1 Dante USB IO 2×2 Dante – USB Adapter

The iStream AIO IACU1 USB adapter for Dante supports 2×2 channels of 24-bit / 48 kHz bidirectional audio, It is easy to use with two-way channel signal transmission from USB signal input to Dante, or signal output from Dante to USB.

The iStream Dante USB Type-A adapter is auto-discovered and ready to use when connected, no separate power supplies are required, just use USB power and the adapter is ready to go.

KEY FEATURES

• Cost-effective solution to connect your computer to Dante network
• 2×2 Bidirectional Audio
• Plug-and-play operation
• Powered by USB
• Replaces multiple analog or multi-core cables with only a network cable
• Compact design, easy to use
• Sample rates up to 48 kHz
• Extends uncompressed high-quality audio signal with near-zero latency
• Wide dynamic range
• High signal-to-noise ratio
• RJ45 and USB Type-A Connectors
• Compatible with Dante Domain Manager (DDM)

APPLICATIONS

• Connect Computer to a Dante network
• Connect your Streaming Gear to a Dante network

SPECIFICATIONS

iStream
Model	AIO IACU1
RJ45 Port	1
Connection	RJ45 and USB A type
Power supply	USB
Sampling Rate	48kHz
Network transmission	Dante IP AES67 RTP Audio
USB	USB2.0
Operating Temparature	0-40C
Size	652mm x 32mm x 22mm
Weight	0.2kg
Input & Output	2 Channels

SETUP

• Download and install the Dante controller from audinate website
• Connect the device to the switch using the Dante network with a network cable
• Connect your computer through the USB interface
• Search for devices in Dante controller software, and select your device to configure
• On the routing page match input with output column
• Once setup and configured your iStream Dante audio device will remember and save the settings

INCLUDED BY DEFAULT

• iStream AIO IACU1 Dante USB IO 2×2 Adapter
