iStream AVC12 – 12 channel Atem vMix live production controller with poe

Live production of video content rely on advanced equipment and technology that can seamlessly integrate various video and audio sources into a cohesive production. Two popular options for controlling multiple video and audio sources are Blackmagic Design ATEM and vMix controllers.

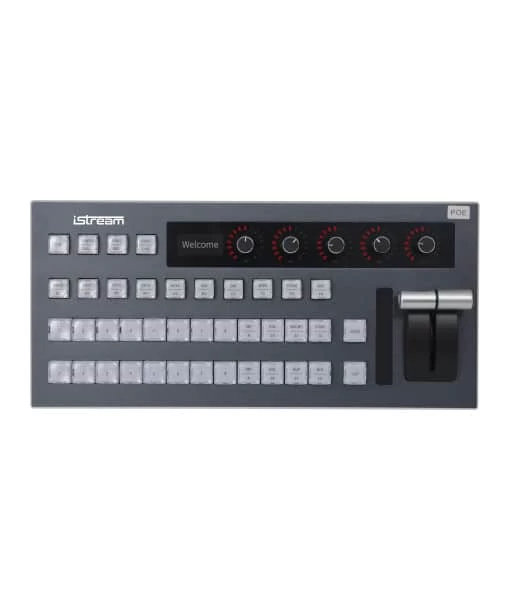

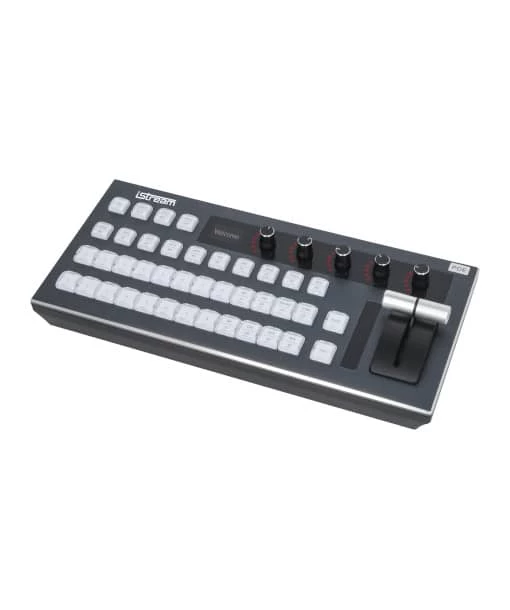

The iStream AVC12 is a live production controller for both your vMix-based software switcher or Blackmagic Design ATEM. Designed with bright LED backlit buttons and a professional T-bar that facilitates common commands, including crossfades, wipes, digital video effects, and downstream keying, the AVC12 is an ideal companion to any vmix or atem system and is suited for experienced and novice users alike. The AVC12 can be powered by POE or USB power supply and perfectly integrates your system with the functions of vMix and Blackmagic Design ATEM systems. Integrating switching, audio adjustments and special effects & transitions all in one.

Features iStream AVC12 Atem Vmix controller

vMix

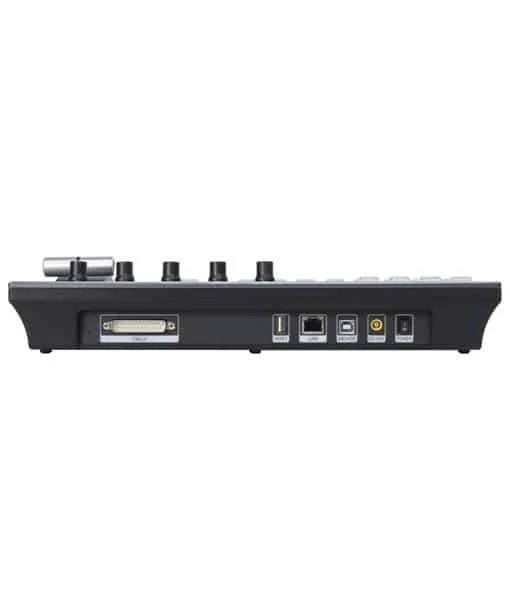

• Connection: IP connection via RJ45 LAN (POE 802.3af supported) and USB 2.0 cable direct connection
• Input Control: 12 channel preview/program
• Transitions: 4 transitions mappable to buttons
• Overlays: 4 overlay channels (R1 / R2 / R3 / R4)
• Playback Control: 2 playback channels (M1 / M2)
• Other Controls: Record, Stream
• Support 24-channel tally output function



ATEM

• Connection method: IP connection via RJ45 LAN (POE 802.3af supported)
• Input control: 12 channels
• Transition effects: 5 transition buttons (mix / dip / wipe / sting / DVE)
• Upstream keyer control: 4 key buttons (background / key 1 / key 2 / key 3 / key 4)
• Downstream keyer control: 2 DSK buttons
• FTB: supported
• Preview transition: supported
• Macros: supported
• S/SRC: supported
• M/E: supported
• AUX: supported
• Support 24-channel tally output function



Specifiations iStream AVC12 Atem Vmix controller

Model	iStream AVC12
Main Functions
Audio Control	1ch master+4ch input
Transition Control	Auto transitions, hard cuts, T-Bar
OLED Display	Set device parameters
Indicator Light	Indicate switcher status
Tally	12ch PGM+12ch PVW
ATEM Functions
Connection	RJ45 LAN with POE 802.3af support
Video Control	12ch inputs
Transition Effects	MIX / DIP / WIPE / STING / DVE
Upstream Keyboard	BKGD / KEY1 / KEY2 / KEY3 / KEY4
Downstream Keyboard	DSK1 / DSK2
FTB	Supported
PREV TRANS	Supported
T-BAR	Supported
S/SRC	Supported
MACRO	Supported
S/SRC	Supported
M/E	Supported
AUX	Supported
vMix Functions
Connection	RJ45 LAN with POE 802.3af support, USB
Video Control	12ch inputs
Transition Effects	4
Picture-in-picture Function	R1 / R2 / R3 / R4
Playback Setting	M1 / M2
REC	Supported
LIVE	Supported
T-BAR	Supported
General
Input Voltage	DC 12V
Input Current	0.3A
Power	4W
POE	POE 802.3af
Operating Temperature	10℃~40℃
Dimensions	(L)354*(W)165*(H)67mm
Weight	1.5KG

Included by default

• iStream AVC12 Control Panel for vMix and Blackmagic Design ATEM
• Power Adapter
• USB Cable
