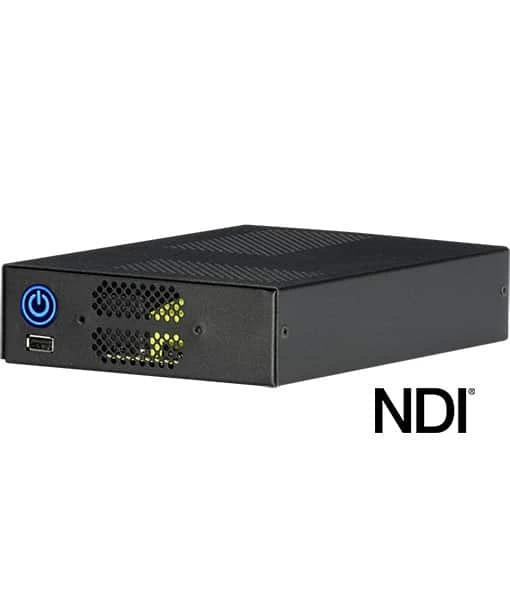

iStream One-U: Versatile and Compact vMix 1U Rackmount NUC for NDI Production

The iStream One-U redefines versatility in NDI production and switching with its advanced features and flexible mounting options. This powerful 1U Rackmount NUC, driven by an Intel i7 processor and an Intel Iris Xe GPU, is specifically tailored for demanding live production environments.

A standout feature of the iStream One-U is its dual port LAN, each offering a 2.5Gb connection speed. This high-speed connectivity is crucial for handling high-bandwidth demands in ndi live video production, ensuring smooth, uninterrupted streaming and data transfer. Such a feature is particularly beneficial in scenarios that require real-time video processing and streaming, providing the reliability and speed needed for professional-grade productions.

What sets the iStream One-U also apart is its adaptability to various installation needs. Recognizing that rack mounting a PC can be overly complex or unsuitable for certain settings, the iStream One-U offers an innovative solution. Its design is not only compact, making it ideal for space-sensitive installations, but it also provides the flexibility to mount in different ways to suit diverse operational requirements.

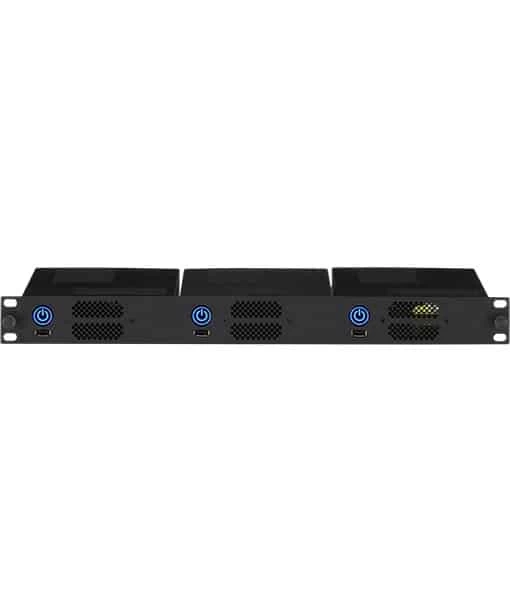

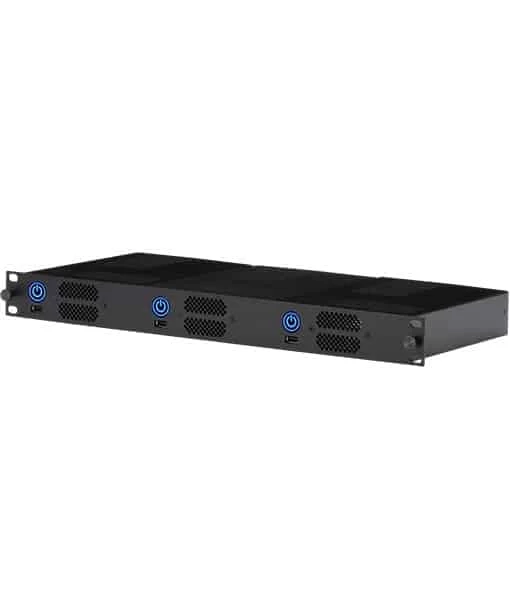

Furthermore, for installations requiring multiple units, the iStream One-U can be seamlessly integrated with a Rack Mount Panel, accommodating up to three units. This feature enhances its functionality in larger setups, allowing for a streamlined and efficient organization of multiple systems.

Equipped with vMix HD, the iStream One-U delivers a full spectrum of capabilities for live mixing, recording, and streaming. This makes it an excellent choice for broadcast studios, live events, and other professional video production scenarios, where flexibility, space efficiency, and top-tier performance are paramount. The iStream One-U stands as a revolutionary solution in video production technology, catering to a wide range of professional needs with its unique combination of power, compactness, and mounting versatility.



KEY FEATURES

• Pocket-Size 1U rackmount NUC
• 16GB DDR4 Memory
• Dual Lan Port (2.5Gb/s)
• Includes vMix HD Perpetual License
• Intel Iris XE GPU with 2 HDMI outputs
• Intel Core i7 Processor (Intel i7-1360P 3.7GHz 12C/16T)
• Integrated 500GB M.2 NVmE SSD
• NDI support
• Optional Rackmount Panel Set

SPECIFICATIONS

Processing

Switching Type	Software
Processing Resolution	1080p at 60

Input

Video Inputs	NDI, SRT, IP
Input Video Format	4K

Output

Video Outputs	2 x HDMI (HDMI 2.1) Female
Output Video Format	HDMI / RJ45 1080p at 60 fps
Embedded Audio Output	HDMI

Connectivity

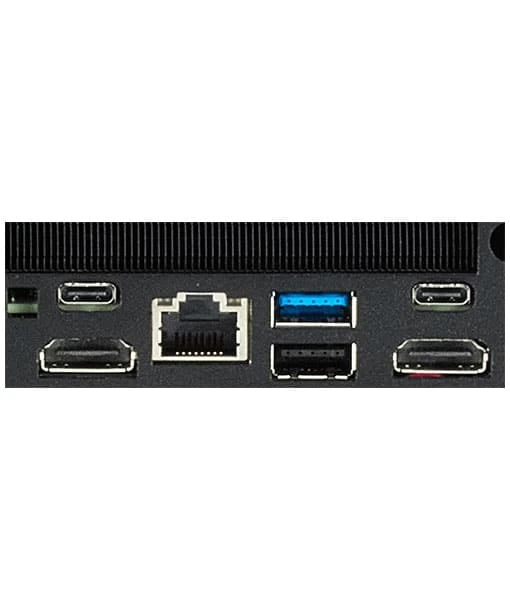

Other I/O	1x USB2.0 Front 1x USB2.0, 1x USB3.2 (Rear) 2 x Thunderbolt 4 Ports 1 x Thunderbolt 4 2 x RJ45 LAN Output 2.5Gb/s
HDCP Support	Version 2.2

Hardware

Processor	Intel i7
CPU	1360P 3.7GHz 12C/16T
GPU	Intel Iris Xe
RAM	16GB DDR4 (64GB MAX)
Harddrive	500GB M.2 NVmE SSD

Power

Power Supply

120W 100-240VAC 60-50Hz

Environmental

Operating Temperature

0 to 40°C

General

Windows
Dimensions	146(W) x200(D) x44.4(H) mm
Weight	3.5 kg

INCLUDED BY DEFAULT

• iStream One-U – Compact vMix 1U Rackmount NUC
• including vMix HD perpetual license
