IStream PRO2 Plus – Portable, All-In-One VMix 4K Live Production System With 4x 12G-SDI Inputs Inputs, VMix 4K And NDI

iStream PRO2 Plus – Portable, All-In-One vMix 4K Live Production System with 4x 12G-SDI, vMix 4K and NDI

Turnkey vMix mobile broadcast production with the iStream Pro2. This all-in-one mobile video studio features NDI, four 12G-SDI inputs/outputs that support cameras and other video sources to be switched onto a LAN for broadcast and streaming RTMP and SRT video formats to a variety of CDNs. It features a built-in 17″ display and runs vMix 4K software on Windows 10 to reliable switch and produce your broadcast.

The portable workstation allows you to control it with a separately available keyboard and mouse using the USB inputs, and it features a 1TB internal SSD for recording, a dual removable SSD bay, 16GB RAM, an Nvidia RTX A4000 GPU, and a fast 12-core Intel i7 processor. There are also DisplayPort outputs for multiview, preview, program, or software control in addition to the built-in monitor.

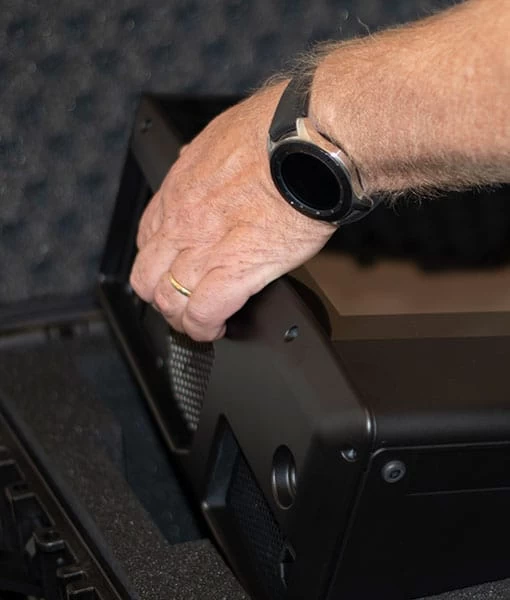

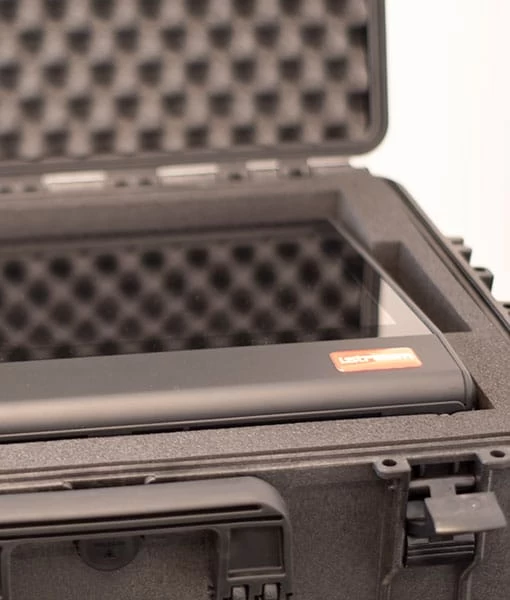

A soft carry case is included for storage and transporting the system when you’re on the road. Optional there is also an ATA approved rugged transit case with trolley available.

The iStream Pro2 Portable vMix switcher is a fully configured live video streaming production system that is reliable and easy to use. No need to build your own system, start streaming in minutes, with a turnkey vMix system configured specifically for your needs. The iStream PRO2 comes with all the live video streaming production features of vMix 4K, in a compact, powerful production system. Just plug in your cameras and start your live production.



Features

• Fully configured broadcasting and production system
• Includes vMix 4K Software
• Silent liquid cooling
• Integrated 17.3” (439.42 mm) LED LCD (1920×1080) with scratch-resistant glass
• 4x 12G-SDI inputs
• 12-core Intel Core i7 processor
• 1TB SSD
• 16GB RAM
• NVIDIA GF RTX A4000 GPU
• 2 Removable SSD Bays
• Carrying Case
• NDI Support
• Integrated 1TB Solid State Drive
• 2 removable SSD Bays

Specifications

Processing

Switching Type	Software
Processing Resolution	4K

Input

Video Inputs	4 x 12G-SDI Bidirectional NDI Unlimited inputs (depending on video and project settings) SRT Unlimited inputs (depending on video and project settings)
Input Video Format	Max 4096 x 2160
Audio Input	Analog 3.5mm Audio-In embedded: SDI NDI DANTE
Remote Callers (vMix call)	4 callers
Replay Channels (vMix Replay)	1 channel
Color Correction	Professional color correction on every input, including lift, gamma, gain, luminance, hue, saturation with real-time vectorscope monitoring

Output

Video Outputs	4 x 12G-SDI Bidirectional 4 NDI outputs 4 SRT outputs 3 RTMP streaming outputs (Facebook, YouTube, custom URL)
Recording	2 channel recording
Overlay Channels	4
Virtual Sets	Built-in and customizable virtual sets with full motion zoom and high-quality chroma keying
Playlists	Switch between multiple live inputs or prerecorded videos without manual intervention
Videolist	Create playlists of video files to play in sequence – a great way to stream prerecorded content when your event is offline

Connectivity

Other I/O	4 x USB-A Input 1 x USB-B Input 1 x 1/8″ / 3.5 mm Output
Network	1x 2.5G Ethernet / RJ45 Lan Port

Hardware



Processor	12-core Intel Core i7 processor
CPU	12C
GPU	NVIDIA RTX A4000 GPU
Hot Swap Bays	2 Removable SSD Bays
Harddrive	1TB SSD
RAM	16GB

Power

Power I/O

Power Supply: 120 to 240 VAC (700 W)

Environmental

Operating Temperature

0 to 40°C

General

Dimensions	6.67” (169.41mm) D  x  16.75” (425.45mm) W  x  13.69” (347.73mm) H
Weight	10kg

Included

• iStream PRO2 Plus
• vMix 4K perpetual license
• Windows 10 Pro
• Padded carrying case

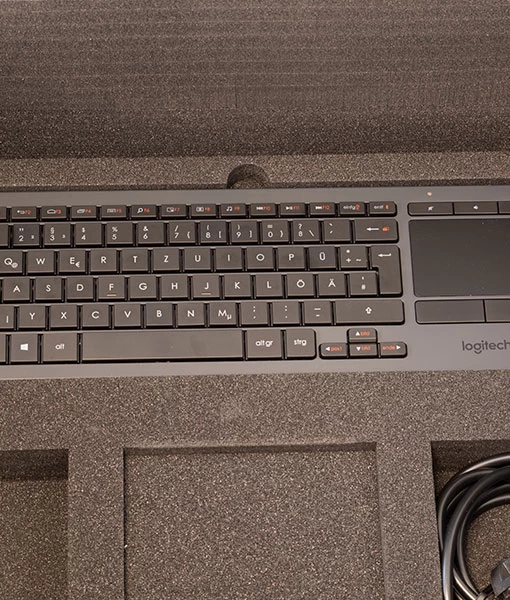

• USB wired keyboard
• USB wired 2-button mouse

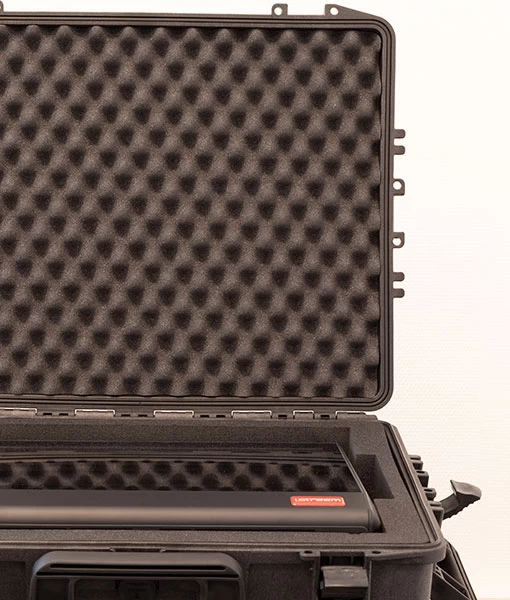

• Optional: Rugged transit case with trolley
