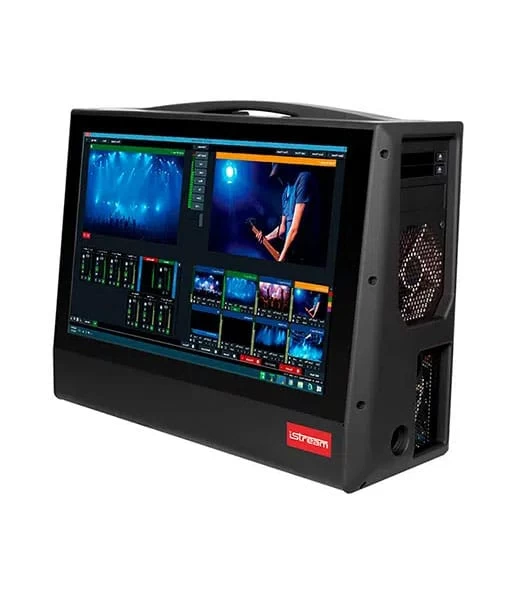

IStream PRO2X Plus – Portable, All-In-One VMix Pro Obsidian Live Production System

iStream PRO2X Plus – Portable, All-In-One vMix Pro Obsidian Live Production System

Turnkey vMix mobile broadcast production with the iStream Pro2X Plus. This all-in-one mobile video studio features NDI, 4x 12G-SDI I/O and 4x 12G-SDI Inputs that support cameras and other video sources to be switched onto a LAN for broadcast and streaming RTMP and SRT video formats to a variety of CDNs. Each input has its own color correction adjustments, allowing you to mix and match inputs from different sources for smooth transitions when cutting between sources.It features a built-in 17″ display and runs vMix Pro software on Windows 10 to reliable switch and produce your broadcast.

The portable workstation allows you to control it with a separately available keyboard and mouse using the USB inputs, and it features a 1TB internal SSD for recording, a dual removable SSD bay, 32GB RAM, an NVIDIA RTX A5000 GPU, and a fast 10 core Intel Core i9 processor. There are also DisplayPort outputs for multiview, preview, program, or software control in addition to the built-in monitor.

The iStream Portable vMix switcher is a fully configured live video streaming production system that is reliable and easy to use. No need to build your own system, start streaming in minutes, with a turnkey vMix Pro system configured specifically for your needs. The iStream PRO2X Plus comes with all the live video streaming production features of vMix Pro, in a compact, powerful production system. Just plug in your cameras and start your live production.



Features

• Fully configured broadcasting and production system
• Includes vMix Pro Software
• Silent liquid cooling
• Integrated 17.3” (439.42 mm) LED LCD (1920×1080) with scratch-resistant glass
• 4x 12G-SDI inputs and 4x 12G-SDI I/O
• 10-core Intel Core i9 processor
• 2x 1GB Lan Ports
• 1TB SSD
• NVIDIA RTX A5000 GPU
• 32GB Ram
• 2 Removable SSD Bays
• Carrying Case
• NDI Support
• Integrated 1TB Solid State Drive
• 2 removable SSD Bays
• vMix Obsidian Enterprise Grade – 4K Streaming and Recording

Specifications

Processing

Switching Type	Software
Processing Resolution	4K

Input

Video Inputs	4x 12G-SDI inputs and 4x 12G-SDI I/O NDI Unlimited inputs (depending on video and project settings) SRT Unlimited inputs (depending on video and project settings)
Input Video Format	4096 x 2160
Audio Input	Analog 3.5mm Audio-In embedded: SDI NDI DANTE
Remote Callers (vMix call)	8 callers
Replay Channels (vMix Replay)	4 channels
Color Correction	Professional color correction on every input, including lift, gamma, gain, luminance, hue, saturation with real-time vectorscope monitoring

Output

Video Outputs	4 NDI outputs 4 SRT outputs 3 RTMP streaming outputs (Facebook, YouTube, custom URL)
Recording	2 channel recording
Overlay Channels	4
Virtual Sets	Built-in and customizable virtual sets with full motion zoom and high-quality chroma keying
Playlists	Switch between multiple live inputs or prerecorded videos without manual intervention
Videolist	Create playlists of video files to play in sequence – a great way to stream prerecorded content when your event is offline

Connectivity

Other I/O	4 x USB-A Input 1 x USB-B Input 1 x 1/8″ / 3.5 mm Output
Network	2x 1Gb/s RJ45 Lan Port

Hardware



Processor	10-core Intel Core i9 processor
CPU	10C
GPU	NVIDIA NVIDIA RTX A5000 GPU
Hot Swap Bays	2 Removable SSD Bays
Harddrive	1TB SSD
RAM	32GB

Power

Power I/O

Power Supply: 120 to 240 VAC (700 W)

Environmental

Operating Temperature

0 to 40°C

General

Dimensions	6.67” (169.41mm) D  x  16.75” (425.45mm) W  x  13.69” (347.73mm) H
Weight	10kg

Included

• iStream PRO2X Plus
• vMix Pro perpetual license
• Windows 10 Pro

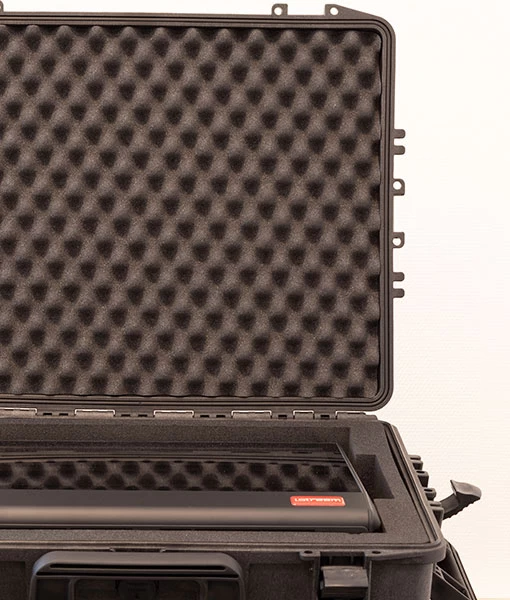

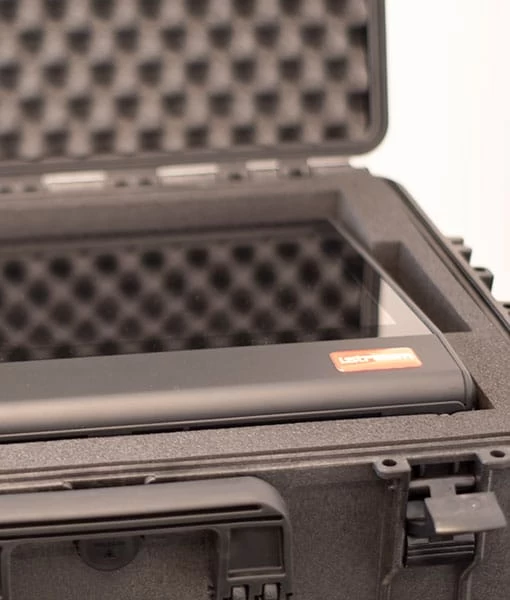

• Padded carrying case

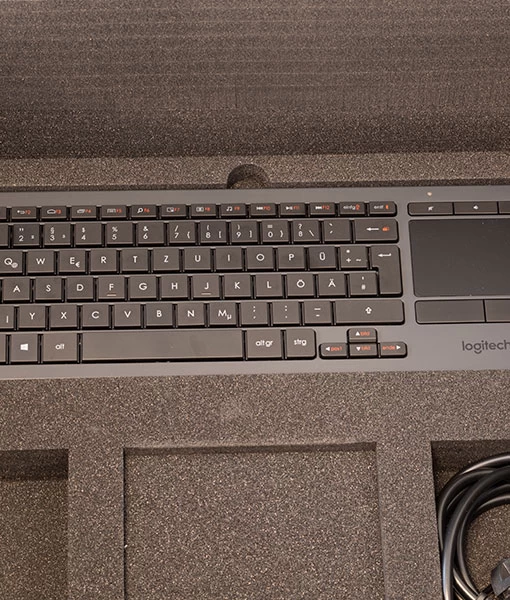

• USB wired keyboard
• USB wired 2-button mouse
• Optional: Rugged transit case with trolley
