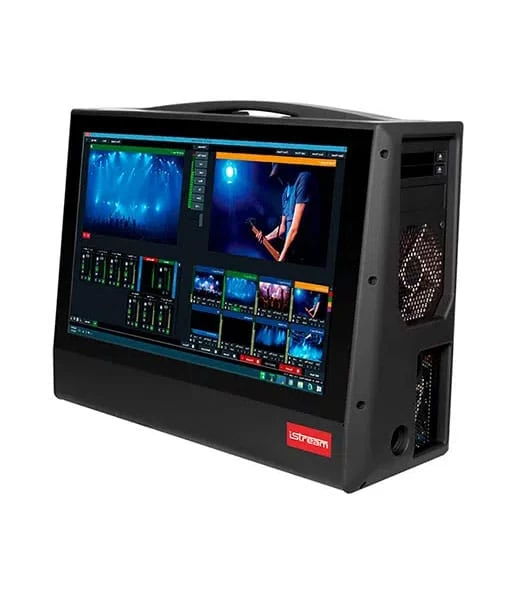

IStream PRO2X – Portable, All-In-One VMix Pro Live Production System

iStream PRO2X – Portable, All-In-One vMix Pro Live Production System

Turnkey vMix mobile broadcast production with the iStream Pro2X. This all-in-one mobile video studio features NDI, 4x 12G-SDI I/O, 8x 3G-SDI Inputs (may also used as 4x 6G-SDI or 2x 12G-SDI inputs) that support cameras and other video sources to be switched onto a LAN for broadcast and streaming RTMP and SRT video formats to a variety of CDNs. Each input has its own color correction adjustments, allowing you to mix and match inputs from different sources for smooth transitions when cutting between sources.It features a built-in 17″ display and runs vMix Pro software on Windows 10 to reliable switch and produce your broadcast.

The portable workstation allows you to control it with a separately available keyboard and mouse using the USB inputs, and it features a 1TB internal SSD for recording, a dual removable SSD bay, 32GB RAM, an NVIDIA RTX A5000 GPU, and a fast 12-core Intel i7 processor. There are also DisplayPort outputs for multiview, preview, program, or software control in addition to the built-in monitor.

The mixer also supports NDI and SRT inputs and outputs, and it supports three simultaneous RTMP streams for multiple destinations. It has 1TB of built-in storage and two removable SSD bays for extra storage. A soft carry case is included for storage and transporting the system when you’re on the road. Optional there is also an ATA approved rugged transit case with trolley available.

The iStream Portable vMix switcher is a fully configured live video streaming production system that is reliable and easy to use. No need to build your own system, start streaming in minutes, with a turnkey vMix Pro system configured specifically for your needs. The iStream PRO2X comes with all the live video streaming production features of vMix Pro, in a compact, powerful production system. Just plug in your cameras and start your live production.



Features

• Fully configured broadcasting and production system
• Includes vMix Pro Software
• Silent liquid cooling
• Integrated 17.3” (439.42 mm) LED LCD (1920×1080) with scratch-resistant glass
• 8x 3G-SDI inputs (or 4x 6G-SDI or 2x 12G-SDI), 4x 12G-SDI I/O)
• 12-core Intel Core i7 processor
• 1TB SSD
• 1x 2.5Gb Ethernet Port
• NVIDIA RTX A5000 GPU
• 32GB Ram
• 2 Removable SSD Bays
• Carrying Case
• NDI Support
• Integrated 1TB Solid State Drive
• 2 removable SSD Bays

Specifications

Processing

Switching Type	Software
Processing Resolution	4K

Input

Video Inputs	8x 3G-SDI inputs (or 4x 6G-SDI or 2x 12G-SDI), 4x 12G-SDI I/O) NDI Unlimited inputs (depending on video and project settings) SRT Unlimited inputs (depending on video and project settings)
Input Video Format	4096 x 2160
Audio Input	Analog 3.5mm Audio-In embedded: SDI NDI DANTE
Remote Callers (vMix call)	8 callers
Replay Channels (vMix Replay)	4 channels
Color Correction	Professional color correction on every input, including lift, gamma, gain, luminance, hue, saturation with real-time vectorscope monitoring

Output

Video Outputs	4 NDI outputs 4 SRT outputs 3 RTMP streaming outputs (Facebook, YouTube, custom URL)
Recording	2 channel recording
Overlay Channels	4
Virtual Sets	Built-in and customizable virtual sets with full motion zoom and high-quality chroma keying
Playlists	Switch between multiple live inputs or prerecorded videos without manual intervention
Videolist	Create playlists of video files to play in sequence – a great way to stream prerecorded content when your event is offline

Connectivity

Other I/O	4 x USB-A Input 1 x USB-B Input 1 x 1/8″ / 3.5 mm Output
Network	1x 2.5Gb/s RJ45 Lan Port

Hardware

Processor	12-core Intel Core i7 processor
CPU	12C
GPU	NVIDIA NVIDIA RTX A5000 GPU
Hot Swap Bays	2 Removable SSD Bays
Harddrive	1TB SSD
RAM	32GB

Power

Power I/O

Power Supply: 120 to 240 VAC (700 W)

Environmental

Operating Temperature

0 to 40°C

General

Dimensions	6.67” (169.41mm) D  x  16.75” (425.45mm) W  x  13.69” (347.73mm) H
Weight	10kg

Included

• iStream PRO2X
• vMix Pro perpetual license
• Windows 10 Pro
• Padded carrying case

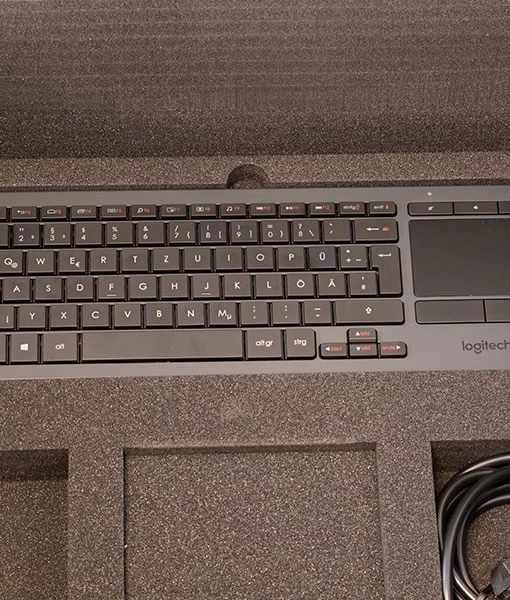

• USB wired keyboard
• USB wired 2-button mouse

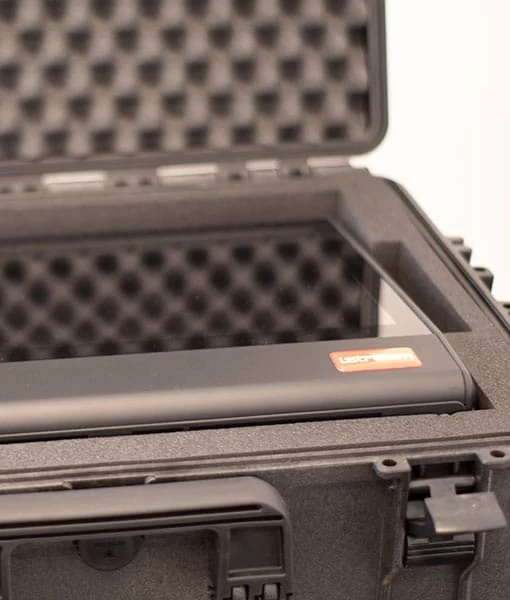

• Optional: Rugged transit case with trolley
