IStream PTZ Lift – Universal Motorized Telescopic Column 70 – 170 Cm Height For Cameras

iStream PTZ Lift – Universal motorized telescopic column 70 – 170 cm height for cameras

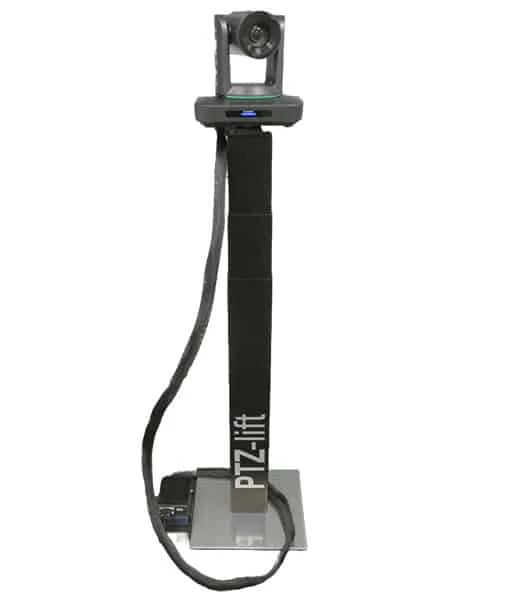

A camera lift is used to create vertical camera movements. The motorized lift can be used to achieve dramatic reveals or to add a sense of motion to an otherwise static shot. The iStream PTZ-lift is a telescopic camera column pedestal, that ranges in height between 70 and 170cm. The lift is controlled over a network via Visca over IP protocol – ideal in a studio setup.

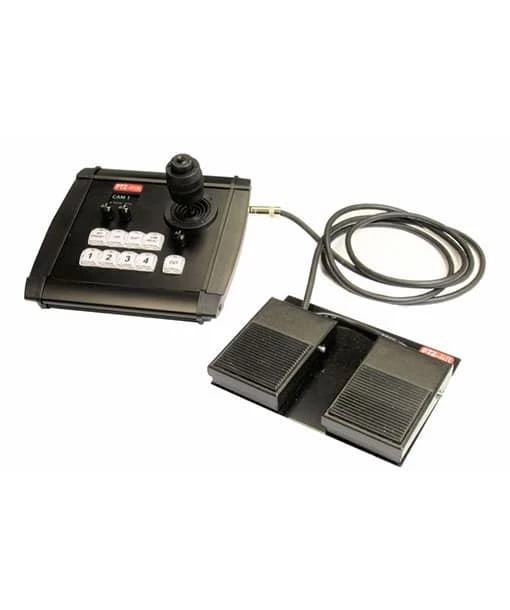

The PTZ lift motorized column comes with the iStream PTZ-link joystick and foot pedal, allowing to controll the lift with a dual footswitch, while at the same time adjusting the PTZ camera with the joystick.

KEY FEATURES

• uses Visca camera protocol
• Control with any Visca controller
• Optional PTZ-link controller with footswitches
• PoE camera and interface supply
• 230V ac column supply
• height 70-170cm
• height 120-220cm with optional column extender
• travel 100cm
• network rj45
• weight 10kg, controller 1kg
• floorplate 30x30cm
• payload: 20kg max
• cost effective solution



INCLUDED BY DEFAULT

• PTZ-lift column on floorplate
• camera quick release plate
• multicable SDI, motor and UTP
• column power supply
• column Visca interface
• PoE splitter
• ac adapter 7.5V dc
• iStream PTZ-link controller with foot-pedal extension
• Dual footswitch
