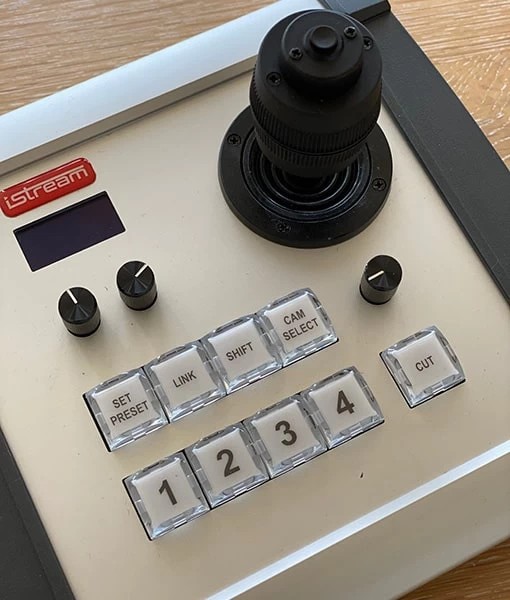

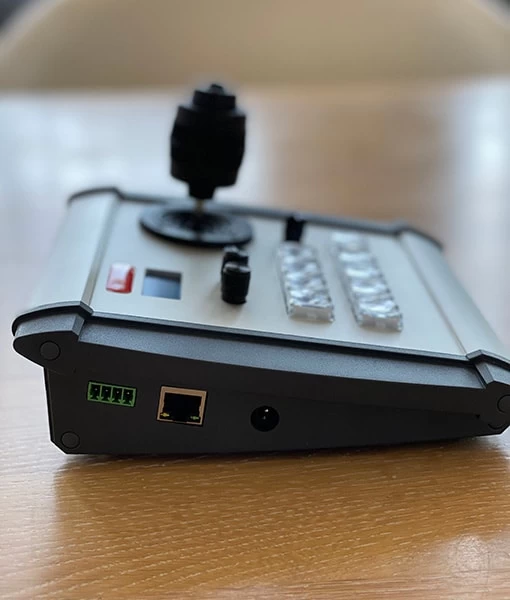

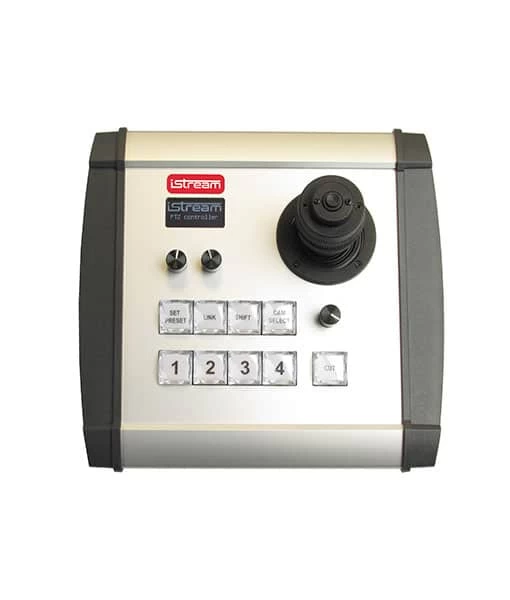

IStream PTZ Link – PTZ Camera IP Joystick Controller

iStream PTZ Link – PTZ Camera IP Joystick Controller

Smart and flexible remote camera controller for all major brands of serial and IP PTZ cameras.

Up to 8 cameras can be controlled, each with a maximum of 8 presets.  Protocols can be mixed. When linking the controller to a videoswitcher in slave mode, preview selection functions as camera selection. In master mode, the unit controls the switcher.

PTZ link serves as a complete control solution in small setups, or as an extra controller in larger settings. Its intuitive user interface makes it easy to operate, and to avoid mistakes.

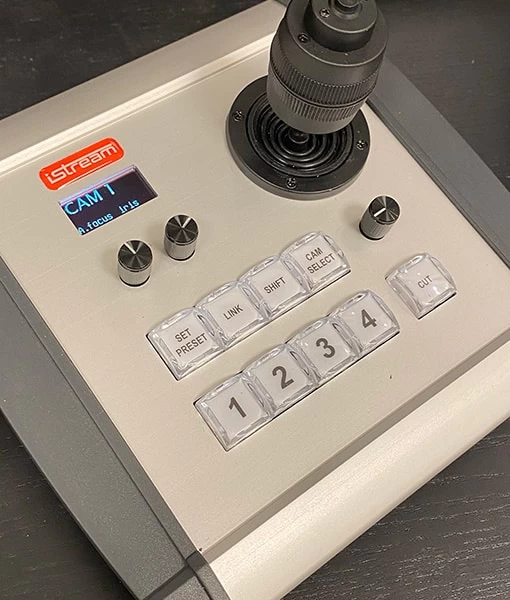

The controller is menu-configured via a rotary push-button and 1.3″ OLED display. It is connected to the network with PoE or a power adapter.

Features

• VISCA over IP PTZ controller
• Serial PTZ controller
• vMix and Blackmagic ATEM link option
• max 8 PTZ cameras, with 8 presets
• Link with videomixer/switcher in Master or Slave mode
• Cut button
• Visual feedback
• PoE
• PTZoptics, Everet, Panasonic ePTZ supported
