IStream PTZ Switch NDI – 8-channel NDI Switcher And PTZ Controller

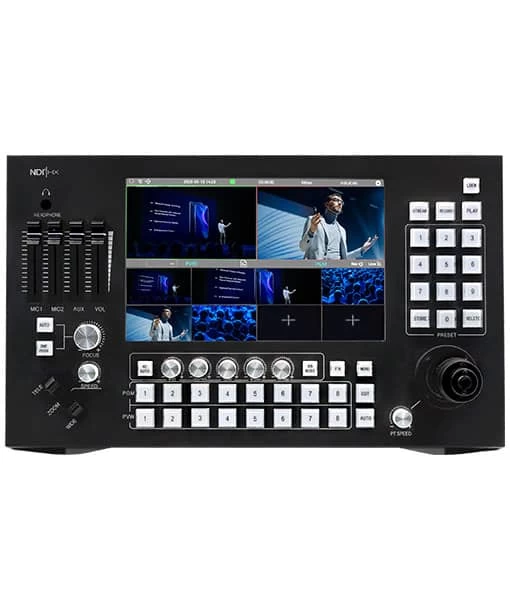

iStream PTZ Switch NDI

8-channel NDI Switcher and PTZ Controller

The iStream PTZ Switch NDI is an easy to use NDI HX2 Switcher with integrated PTZ controller and Touchscreen.

The PTZ Switch NDI gives you full control over a live production, simplifying live streaming setup and operation. Starting a  live broadcast with only one network cable and multiple NDI cameras supporting complete control of your PTZ cameras with presets, color correction, pan-tilt-zoom, audio, graphics, recording and streaming.

Switch, Stream and Record up to 8x NDI HX2 sources.

PTZ Camera Controller and Touch Screen NDI Switcher In One Device. The professional solution for simple setups.

With a few NDI cameras connected to the network you can bring in any video source and multiple angles for your board meetings, lectures, events and church services giving your streams a professional look. With the native NDI support, the PTZ Switch NDI supports any input device including cameras, encoders, computers and smart phones.

Create professional layouts with the build-in pip and side-by-side layouts and add custom logos and text.

KEY FEATURES

• Switch NDI|HX Cameras and Encoders (8 Channels)
• Switching Control Touchscreen, 10.1″ full HD display
• Integrated PTZ and Preset Control

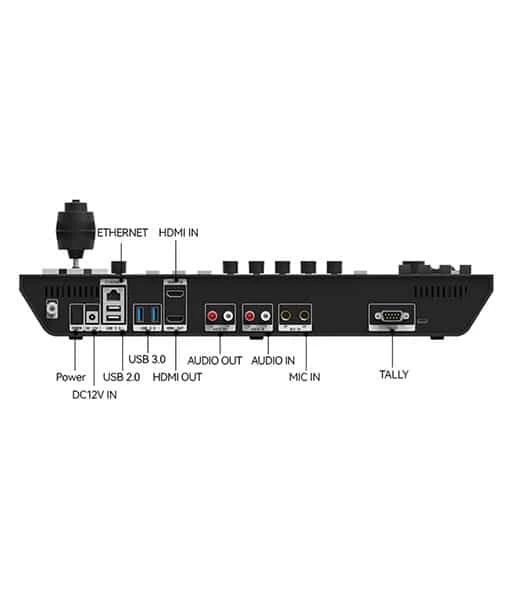

• 1X HDMI Input
• Local video file input
• 1X HDMI PGM Output

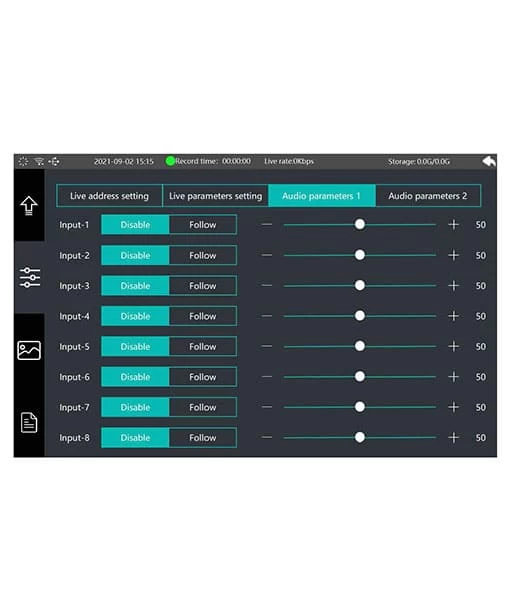

• Integrated 4-channel audio mixer
• Audio RCA IN L/R
• Audio RCA Out L/R
• 2CH Microphone IN
• Stream to Facebook, Youtube, and more
• 2 channel RTMP streaming
• Record to USB Sticks and Drives
• Monitor Audio Out
• Transition effects fade-in, fade-out
• Custom overlays; subtitles, logos

SPECIFICATIONS

iStream PTZ Switch NDI
Video Standard	FHD
Video Processing Capability	input： Up to :1920x1080p60 * 8 output： Up to 1920x1080p60（HDMI）+1920x1080p60（IP）+1280x720p60（IP）
Video Input	8 channel IP video streaming +1 channel HDMI+ local video
Video Output	2 channel IP video streaming +1 channel HDMI+ local recording
Live Video Encoding Format	H.264、H.265
Live Video Bitrate	512Kbps~16384Kbps
Live Video Bitrate Mode	CBR
Network Input Protocol	NDI|Hx, RTSP、RTMP
Network Output Protocol	RTSP、RTMP
Audio Input	RCA*1 TRS6.3mm*2: Compatible with active and passive signals Video embedded
Audio Output	RCA*1 Video embedded
Mixer	4 physical tuning + 8 digital tuning
Transition Control	button, touch control
Subtitle Overlay	supported
Logo Overlay	supported
Tally	DB9 output
USB Port	USB3.0*2+USB2.0*2
Camera Control	Support PTZ, focus, exposure, white balance, preset position control
Power Supply
Input Voltage	DC 12V
Input Current	3A
Rated Power	36W
POE	Optional 802.3AT
Others
Use Environment	Indoor
Operating Temperature	0℃~40℃
Storage Temperature	-10℃~50℃
Dimensions	420*257.52*121.2mm

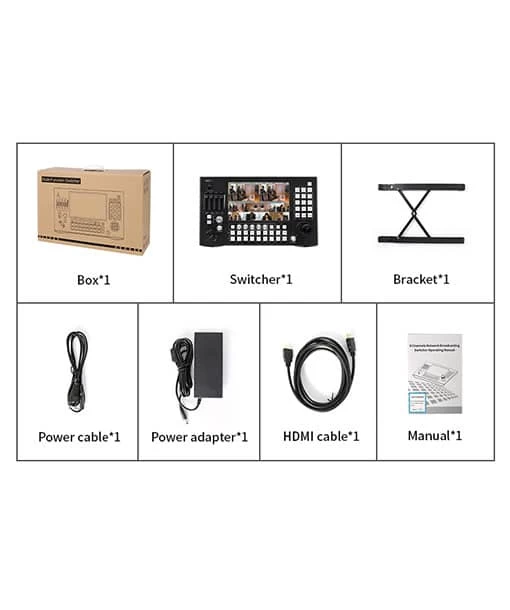

INCLUDED BY DEFAULT

• iStream PTZ Switch NDI
• Bracket
• Power adapter and cable
• HDMI cable
