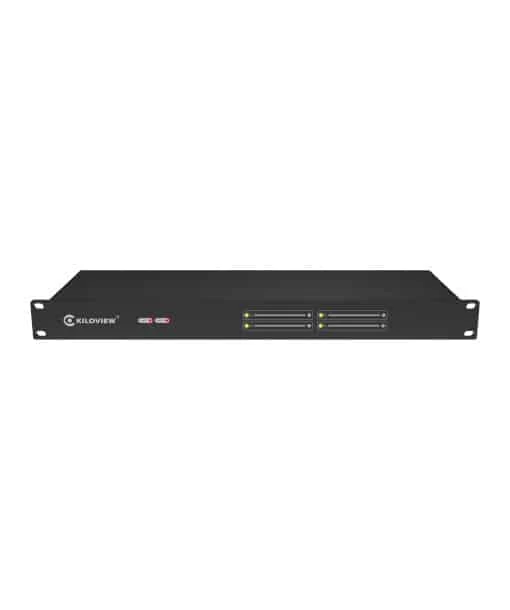

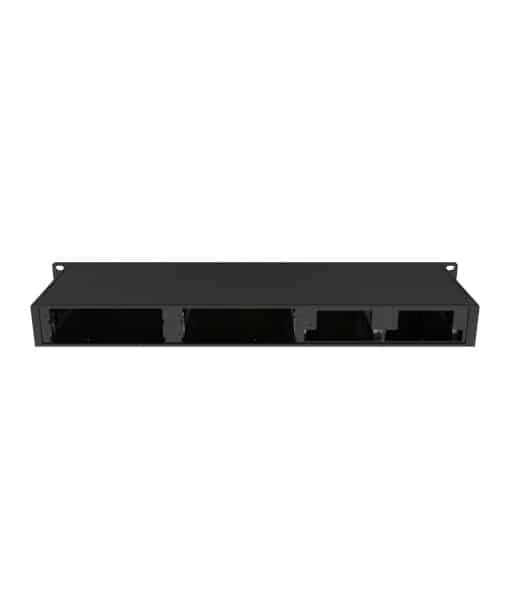

Kiloview Cradle series RU01 4Channel rackmount
The Kiloview Cradle Series include 1RU or 3RU rack-mounted frame, freely mixed with 4 channels (1RU),16 channels/32 channels (3RU) codec modules. It comes with redundant power modules, centralized heat dissipation, ensuring longtime stable operation, and benefits your IP video deployments of any size and complexity.
COMPATIBILITY
- Kiloview RE-3
- Kiloview RE-2
- Kiloview RD-230
- Kiloview RD-300
- Kiloview RD-260
- Kiloview RD-350
SPECIFICATIONS KILOVIEW CRADLE SERIES ENCODERS AN DECODERS
| Model | RE-1 | RE-2 | REN-1 | REN-2 |
| Input | 1*BNC SDI | 1*HDMI | 1*BNC SDI | 1*HDMI |
| Loop | 1*BNC SDI | 1*HDMI | 1*BNC SDI | 1*HDMI |
| NDI|HX | Not supported | NDI|HX 1.0 and 2.0 | ||
| Video encoding | H264/AVC, Motion-JPEG | |||
| Resolution | Up to 1080P60Hz | |||
| Analog audio port | 2*3.5mm | |||
| Audio encoding | AAC/G.711 | |||
| Network | 1*100M RJ45 Ethernet | |||
| Image and text overlay | User-defined text and image overlay | |||
| Video rotation/cropping | Support | |||
| Recording | NAS network storage | |||
| Protocols | SRT/RTP/RTMP/ RTMPS/HLS/TS over UDP/RTSP /Onvif | |||
| Management | Android APP/ | |||
Â
| Module name | RD-230 | RD-300 |
| Network | 1*100M/1000M RJ-45 adaptive Ethernet port | 2*100M/1000M RJ-45 Ethernet ports |
| Video output | 3G-SDI+DVI dual interface, can output the same or different content | 3G-SDI+HDMI 2.0dual interface, can output the same or different content |
| Audio decoding | AAC/G.711 | |
| Audio output | SDI/HDMI embedded, or 3.5mm analog audio output | |
| Screen preview | Preview either with image or video | |
| Overlay | Background,logo andtext overlay | |
| Video decoding | H.264 | H.265/H.264 |
| Decoding ability | Up to 4 channels of video decoding simultaneously (4 channels of 1080P30 or 2 channels of 1080P60 and below) | Up to 9 channels of video decoding simultaneously (9 channels of 1080P30 or 8 channels of 1080P60), customized multi-screen split output |
| NDI|HX | / | NDI|HX 2.0 |
| Media protocols | SRT/RTMP/RTMPS/RTMP Server/HLS/TS over UDP/RTSP | |
| Management | Web | |
Â
INCLUDED BY DEFAULT
- Kiloview RU01
- 35W power supply module for 1RU rackmount device
