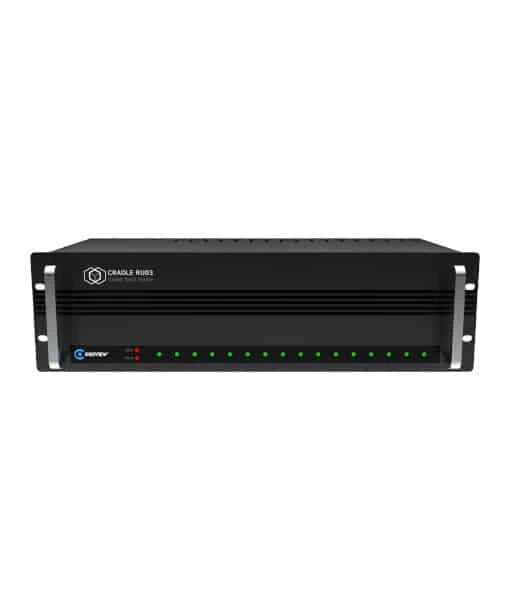

Kiloview Cradle Series RU03 16 Channel Rackmount

Kiloview Cradle series RU03 16 Channel rackmount

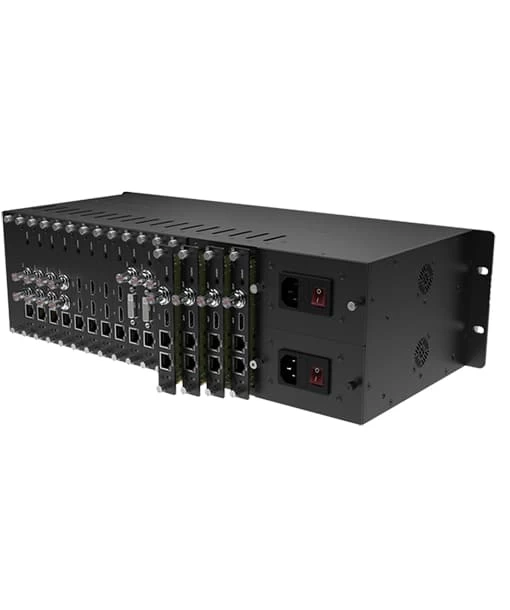

The Kiloview Cradle Series include 1RU or 3RU rack-mounted frame, freely mixed with 4 channels (1RU),16 channels/32 channels (3RU) codec modules. It comes with redundant power modules, centralized heat dissipation, ensuring longtime stable operation, and benefits your IP video deployments of any size and complexity.

COMPATIBILITY

• Kiloview RE-3
• Kiloview RE-2
• Kiloview RD-230
• Kiloview RD-300
• Kiloview RD-260
• Kiloview RD-350

SPECIFICATIONS KILOVIEW CRADLE SERIES RACKMOUNT ENCODERS AND DECODERS

Model	RE-1	RE-2	REN-1	REN-2
Input	1*BNC SDI	1*HDMI	1*BNC SDI	1*HDMI
Loop	1*BNC SDI	1*HDMI	1*BNC SDI	1*HDMI
NDI|HX	Not supported		NDI|HX 1.0 and 2.0
Video encoding	H264/AVC, Motion-JPEG
Resolution	Up to 1080P60Hz
Analog audio port	2*3.5mm
Audio encoding	AAC/G.711
Network	1*100M RJ45 Ethernet
Image and text overlay	User-defined text and image overlay
Video rotation/cropping	Support
Recording	NAS network storage
Protocols	SRT/RTP/RTMP/ RTMPS/HLS/TS over UDP/RTSP /Onvif
Management	Android APP/



Module name	RD-230	RD-300
Network	1*100M/1000M RJ-45 adaptive Ethernet port	2*100M/1000M RJ-45 Ethernet ports
Video output	3G-SDI+DVI dual interface, can output the same or different content	3G-SDI+HDMI 2.0dual interface, can output the same or different content
Audio decoding	AAC/G.711
Audio output	SDI/HDMI embedded, or 3.5mm analog audio output
Screen preview	Preview either with image or video
Overlay	Background, logo and text overlay
Video decoding	H.264	H.265/H.264
Decoding ability	Up to 4 channels of video decoding simultaneously (4 channels of 1080P30 or 2 channels of 1080P60 and below）	Up to 9 channels of video decoding simultaneously (9 channels of 1080P30 or 8 channels of 1080P60), customized multi-screen split output
NDI|HX	/	NDI|HX 2.0
Media protocols	SRT/RTMP/RTMPS/RTMP Server/HLS/TS over UDP/RTSP
Management	Web



INCLUDED BY DEFAULT

• Kiloview RU03
• Dual 35W power supply module
