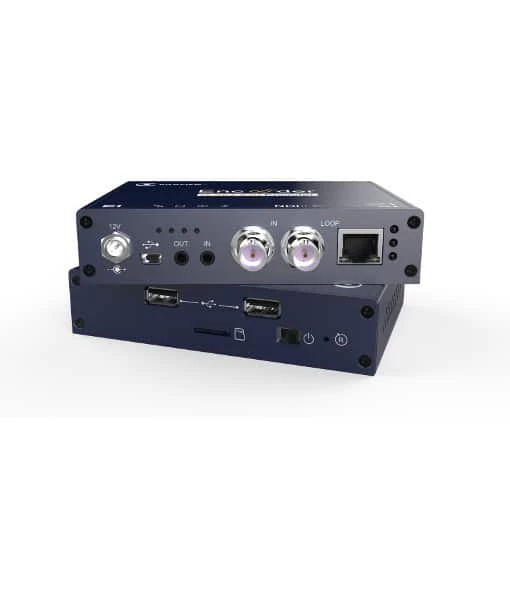

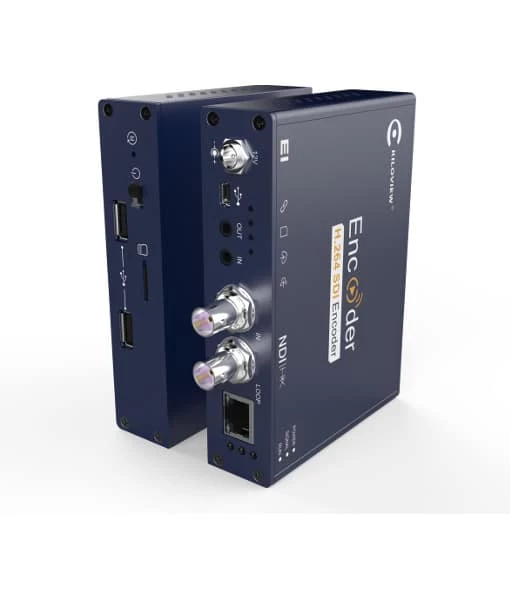

Kiloview E1N-s 3G-SDI To NDI|HX H.264 SRT Video Encoder

Kiloview E1N-s 3G-SDI To NDI|HX H.264 SRT Video Encoder - Afbeelding 2

Kiloview E1N-s 3G-SDI To NDI|HX H.264 SRT Video Encoder - Afbeelding 3

Kiloview E1N-s 3G-SDI To NDI|HX H.264 SRT Video Encoder - Afbeelding 4

Oorspronkelijke prijs was: 301,00 €.Huidige prijs is: 97,99 €.

The Kiloview E1N-s NDI|HX HD/3G-SDI H.264 Video Encoder delivers any digital video source to the network in full HD, with high-efficiency NDI® output via NDI|HX and native support for resolutions up to 1080p. It supports RTP/RTSP/RTMP/RTMPS/HLS/TS streaming media protocols for live broadcast on Facebook, YouTube, Vimeo, Dacast, Wowza etc.

Convert 3G-SDI to NDI
Supports NDI|HX
Resolutions up to 1080p60
Stream to 16 Simultaneous Platforms

Artikelnummer: KI-E1NS Categorieën: Encoders for Live Streaming, Live Streaming, Small Form Factor Encoders

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

Kiloview E1N-s 3G-SDI to NDI|HX H.264 SRT Video Encoder

Share your Full HD video over an NDI IP network with the SDI to NDI HX Encoder from Kiloview. The small, portable unit inputs 3G- or HD-SDI video up to 1080p60 and outputs the signal over Ethernet for use in your NDI workflow. It supports RTMP/HLS/SRT/TS streaming media protocols, allowing it to work with a variety of platforms. The encoder supports SDI-embedded audio and 3.5mm analog audio input and output in ACC or G.711 format. It is compatible with 128 and 512 GB microSDXC cards. Also featured is an SDI loop-through for monitoring.

KEY FEATURES

Convert 3G-SDI to NDI
Supports NDI|HX
Resolutions up to 1080p60
Stream to 16 Simultaneous Platforms
SDI Embedded and Analog Audio In/Out
Full Range of Streaming Protocols
Web-Based Interface
microSD Card Slot
USB Tally Support
Portable Form Factor
H.264 live video encoder
Supports RTMP/RTSP/HLS/SRT/TS streaming media protocols
Supports global live video platforms including YouTube, Ustream, and Twitch
Supports streaming media server platforms and CDN systems including Wowza, FMS, RED5, and SRS
Image rotation, cutting, gray scale, and other image processing functions
Character/image overlay
FPGA, video co-processor, and video encoding chip
10/100M self-adaptive Ethernet interface
Low-power consumption at 4W (typical max)
Up to 50 simultaneous users
ONVIF compliant
Management via web-based interface
Suitable for live production, broadcast, TV, interactive media, medical, network education, and surveillance applications

SPECIFICATIONS KILOVIEW E1-NDI VIDEO ENCODER

Video input	HD/3G-SDI (Level A)
Video loopout	HD/3G-SDI (level A)
Analog audio input	3.5mm
Analog audio output	3.5mm
USB interface	2USB 2.0 Type-A; 1USB 2.0 Mini-USB
Micro SD	Micro SD/TF Card
Video resolution	1080p23.98/24/25/29.97/30Hz 1080p50/59.94/60Hz 1080i50/59.94/60Hz 720p23.98/24/25/29.97/30Hz 720p50/59.94/60Hz, 576i, 480i 720480(NTSC)，720576(PAL)
Transmission mode	NDI\|HX and SRT Supported
Video Encoding	H.264/AVC High profile
Audio encoding	AAC/G.711
Encoding latency	≤67ms
Streaming media protocols	RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP
Management	Android App or Web
Power	DC 12V 1A
Operating temperature	-4°F to 160°F /-20℃ to 6℃
Dimensions	4.9 x 3.5 x 1.125″/1258928mm
Weight	13.4oz /380g
