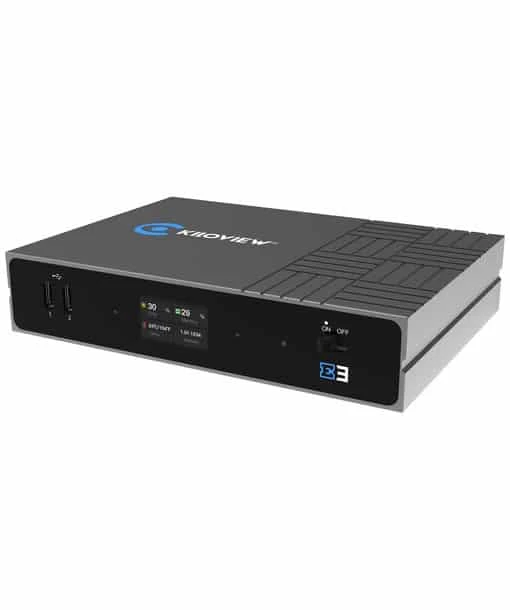

Kiloview E3 HDMI & SDI Dual Channel Video Encoder

Kiloview E3 HDMI & SDI Dual Channel Video Encoder

The Kiloview E3 HDMI & SDI Encoder streams up to 16 platforms simultaneously. The new generation encoder features an HDMI input and loop output that can handle up to UHD 4K30 and a 3G-SDI input and loop output that supports up to 1080p60. Encoding of both inputs in H.264 and/or H.265 is possible at up to 1080p60 with multiple streaming protocols including NDI|HX2, NDI|HX3, SRT, RTMP, RTSP, UDP, and HLS.

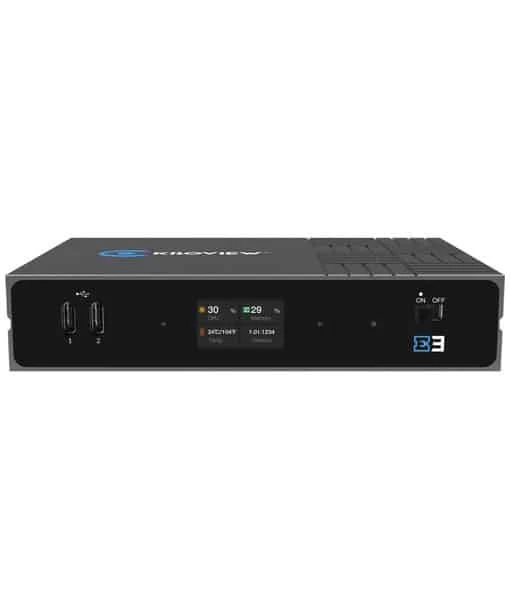

Boasting a low <100ms latency, the E3 is Ideal for a variety of live production applications including remote transmission and live streaming. It features an up-to-date chipset that provides simultaneous streaming to up to 16 different destinations with eight main stream 1080p signals and eight sub stream 720p signals. A 3.5mm line input can ingest analog audio while digital audio can be brought in embedded via HDMI and 3G-SDI and converted into multiple formats including AAC, MPEG-4, MPEG-3, MPEG-2, Opus, or G.711. A 1.14″ LCD screen allows you to monitor information regarding connectivity, IP address, CPU, memory, resolution, temperature, and tally status all in real time. A single Ethernet cable can provide PoE (Power over Ethernet) and reduce cable clutter around the unit.

Encodes Both Video Inputs of HDMI and 3G-SDI
The E3 allows encoding video sources from either port of 3G-SDI or HDMI, mixing both video sources into one output in PIP or PBP mode, or even encoding video sources into up to 1080p60 from both ports of HDMI and 3G-SDI simultaneously for high-quality live streaming.

Flexible Formats Selection
For all IP-based video transmission processes, the E3 supports the high efficiency video codec HEVC as well as H.264. With support of HEVC, the E3 maintains video image quality with lower bitrates, saving more than 50% of your bandwidth.

Wide Streaming Protocol Compatibility
For broad applications, the E3 supports a complete range of streaming protocols including NDI|HX3, NDI|HX2, SRT, RTMP, RTMPS, HLS, and TS over UDP, RTP, RTSP, and ONVIF. It can be used for live production with NDI|HX, remote production with SRT, live streaming with RTMP or HLS, or any transmission with all different protocols.

Powerful Multi-Channel Audio Encoding
The E3 supports eight-channel embedded audio encoding of SDI inputs and four-channel embedded audio encoding of HDMI inputs, along with more functions including audio de-embedding, channel selection, alternate channel, and audio output mapping.

Reliable Recording and Streaming
All inputs of the E3 can be recorded in .MOV or.MP4 through the USB ports or NAS storage.

KEY FEATURES Kiloview E3 Dual Channel 4K HDMI SDI Video Encoder

• Up to UHD 4K30 via HDMI
• Supports Multiple Streaming Protocols
• H.265 and H.264 Support
• Streams to up to 16 Platforms
• Built-In LCD Screen
• Low <100ms Latency
• PoE Support

SPECIFICATIONS Kiloview E3 Dual Channel 4K HDMI SDI Video Encoder

Model	E3
Video Input	1*3G-SDI(SMPTE 424M), compatible with HD-SDI(SMPTE 292M) and SD-SDI(SMPTE 259M)
Video Output	Loop-out: 1*3G-SDI(SMPTE 424M), compatible with HD-SDI(SMPTE 292M) and SD-SDI(SMPTE 259M) Loop-out: 1*HDMI 1.4b
Audio Input	8-channel of SDI embedded audio 4-channel of HDMI embedded audio 1*3.5mm Line In
Video Formats	Supported in HDMI input&loop-out： 3840×2160p 30fps 1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps 1920×1080i 50/59.94/60fps 1280×720p 29.97/30/50/59.94/60fps 720×576i 50fps (PAL SD) 720×480i 59.94fps (NTSC SD) Supported in SDI input&loop-out： 1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps 1920×1080i 50/59.94/60fps 1280×720p 25/29.97/30/50/59.94/60fps 720×576i 50fps (PAL SD) 720×480i 59.94fps (NTSC SD)
Encoding Formats	H.264(AVC): Baseline/Main/High profile, Level 5.1 H.265(HEVC): Main profile, Level 5.0
Streaming Protocols	NDI|HX2/NDI|HX3/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP Onvif(Extensible for SIP/GB-T2818)
Intercom	Yes
PTZ Control	Yes
Network Connections	1*10/100M/1000M RJ45 Ethernet Port PoE supported(802.3af class 3)
USB Interfaces	2*USB 2.0 Type-C 1*USB 2.0 Type-A
Display	AC Inp1.14” LCD display and touch buttons
DHCP	Yes
Management	WebRTC/KiloLink Server
Power Consumption	≤5W
Power Supply	DC 12V/1A
Size	140mm x 100 x 28mm
Weight
Operating Temperature	-20℃~45℃
Storage Temperature	-40℃~50℃

INCLUDED BY DEFAULT

• Kiloview E3 Dual Channel 4K HDMI SDI Video Encoder
