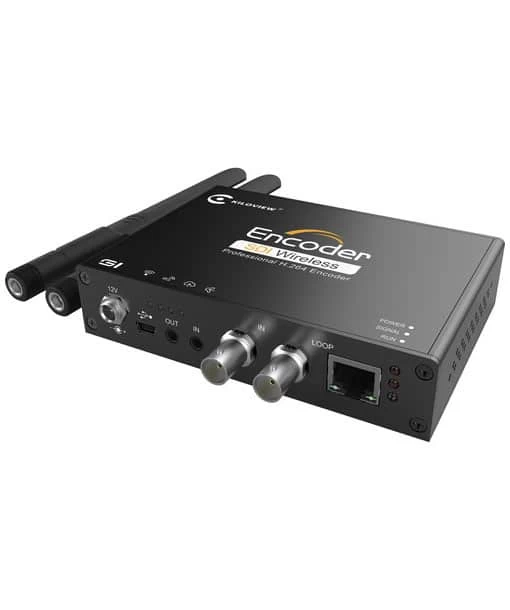

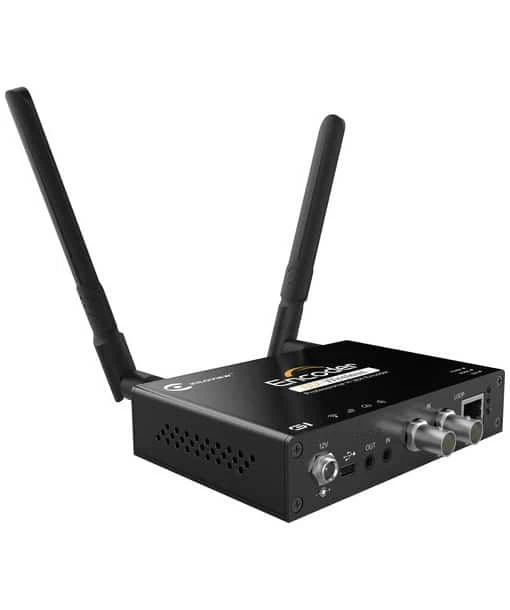

Kiloview G1-S 3G-SDI SRT H.264 4G Wireless Video Encoder

Kiloview G1-S 3G-SDI SRT H.264 4G Wireless Video Encoder

The Kiloview wireless video encoder can convert the full 1080P HD/3G-SDI video source to IP signal without loss and push to internet streaming broadcast platforms through Ethernet. It has a built-in Wifi or 4g network to realize video transmission, which makes live broadcasting available at anytime and anywhere.

KEY FEATURES

• Convert 3G-SDI to H.264
• Resolutions up to 1080p60
• Full Range of Streaming Protocols
• Dual-Stream Output
• Dual-Band Wi-Fi, Ethernet & Optional 4G
• SDI Embedded and Analog Audio In/Out
• Web-Based Interface
• microSD Card Slot
• Low Latency
• Portable Form Factor

SPECIFICATIONS KILOVIEW G1-S 3G-SDI SRT H.264 4G/Wifi Video Encoder

Video input	HD / 3G-SDI
Video loopout	HD / 3G-SDI
Analog audio input	3.5mm
Analog audio output	3.5mm
USB interface	2*USB  2.0 Type-A; 1*USB 2.0 Mini-USB
Micro  SD	Micro  SD/TF  Card
Video resolution	1080p23.98/24/25/29.97/30Hz 1080p50/59.94/60Hz 1080i50/59.94/60Hz 720p23.98/24/25/29.97/30Hz 720p50/59.94/60Hz, 576i, 480i 720*480(NTSC)，720*576(PAL)
Transmission mode	4G-LTE、WiFi 、Ethernet
Video Encoding	H.264/AVC High profile
Audio encoding	AAC/G.711
Encoding latency	≤67ms
Streaming media protocols	H.264, HLS, MJPEG, RTMP, SRT, TS, UDP: 1920 x 1080 (256 to 25,000 Kb/s)
Management	Android App or Web
Power	DC 12V 1A
Operating temperature	-20℃ to 6℃
Dimensions	125*89*28mm
Weight	380g

INCLUDED BY DEFAULT

• Kiloview G1
• Antennas
• Power adapter
• Quickstart Guide
