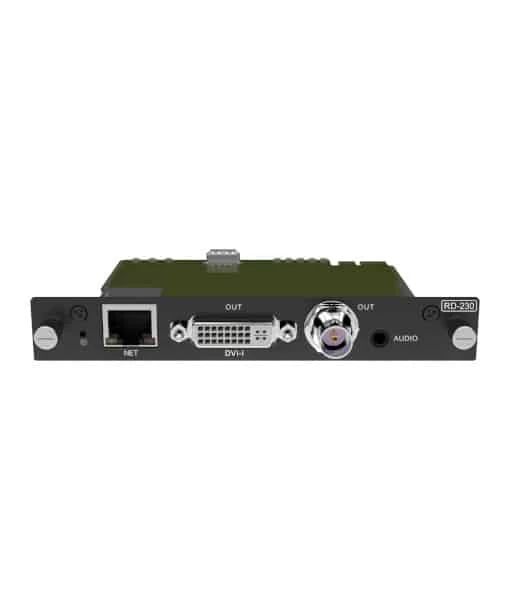

Kiloview RD-230 SRT & IP To SDI/HDMI/DVI Video Decoder

Kiloview RD-230 SRT & IP to SDI/HDMI/DVI Video Decoder

The Kiloview Cradle Serie RD-230 is an IP & SRT decoder that can output SDI, DVI-I/ HDMI signals simultaneously including audio through 3.5mm. Each decoding module includes a network port, SDI, HDMI/DVI-I interface and 3.5mm audio output. The modules are independent of each other. The input supports up to 1080P60 IP & SRT streams, which is backward compatible and adjustable. Sound can be output with HDMI / SDI, or independently from 3.5mm audio port.

KEY FEATURES

• H.264 video decoding
• Up to 2CH 1080p60 (H.264) video decoding simultaneously
• Supports SRT/ RTMP/ HLS/ TS over UDP, RTSP / SIP/ VOCP and IP cameras.
• Outputs of SDI/ HDMI can be up to 1080p60, 1080p/1080i 59.9
• Multi streams decoding
• 7*24 Working mode
• Image scaling/ frame rate conversion

SPECIFICATIONS KILOVIEW RD-230 VIDEO DECODER

Module name	RD-230	RD-300
Network	1*100M/1000M RJ-45 adaptive Ethernet port	2*100M/1000M RJ-45 Ethernet ports
Video output	3G-SDI+DVI dual interface, can output the same or different content	3G-SDI+HDMI 2.0dual interface, can output the same or different content
Audio decoding	AAC/G.711
Audio output	SDI/HDMI embedded, or 3.5mm analog audio output
Screen preview	Preview either with image or video
Overlay	Background，logo andtext overlay
Video decoding	H.264	H.265/H.264
Decoding ability	Up to 4 channels of video decoding simultaneously (4 channels of 1080P30 or 2 channels of 1080P60 and below）	Up to 9 channels of video decoding simultaneously (9 channels of 1080P30 or 8 channels of 1080P60), customized multi-screen split output
NDI|HX	/	NDI|HX 2.0
Media protocols	SRT/RTMP/RTMPS/RTMP Server/HLS/TS over UDP/RTSP
Management	Web

INCLUDED BY DEFAULT

• Kiloview RD-230
