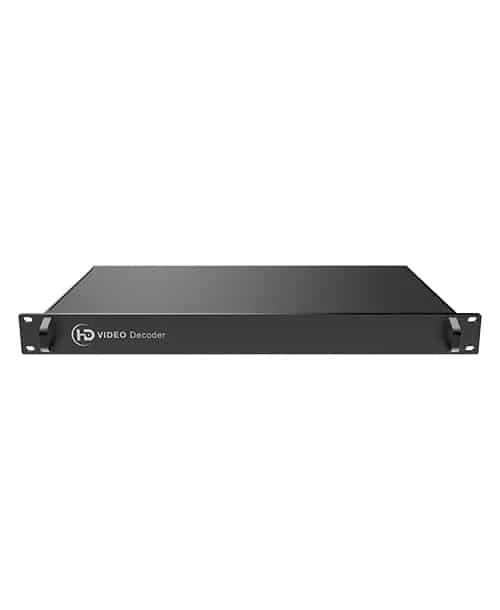

Kiloview RD-230R 4 Channel SRT & IP To SDI/HDMI/DVI Video Decoder

Kiloview RD-230R 4 channel SRT & IP to SDI/HDMI/DVI Video Decoder

The Kiloview RD-230 is a 4 channel IP & SRT decoder that can output 4 SDI, DVI-I/ HDMI signals simultaneously including audio through 3.5mm. Each decoding module includes a network port, SDI, HDMI/DVI-I interface and 3.5mm audio output. The modules are independent of each other. The input supports up to 1080P60 IP & SRT streams, which is backward compatible and adjustable. Sound can be output with HDMI / SDI, or independently from 3.5mm audio port.



Key Features

• Decode up to 1080p60
• Support SRT/RTMP/HLS/TS over UDP/RTP/RTSP/HLS protocol
• Image scaling/ frame rate conversion
• 4 Channel SDI and HDMI output signal simultaneously
• Audio de-embedding



Specifications

Model	RD-230
Input	4*RJ45
Output	4*SDI + 4*HDMI
Resolutions	SDI/HDMI: Up to 1080P60Hz SDI:  1080P60/50, 1080P30/25/24, 1080I60/50, 720P60/50, 570I50, 480I60 HDMI: 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50 compatible with VESA standard format.
Audio output	SDI/HDMI embedded or 3.5mm audio output
Media protocols	SRT/RTMP/HLS/TS over UDP/RTP/RTSP
Video decoding	H.264
Audio decoding	AAC/G.711
Working mode	24H
Delay	<200ms
Decoding ability	Up to 4CH
Power	Dual 220V
Power consumption	20W
Operation Temperature	-20℃~60℃
Dimensions	440mm*270mm*50mm
