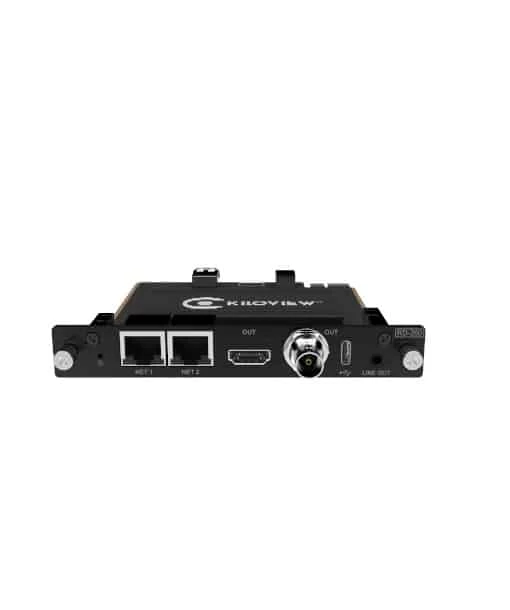

Kiloview RD-260 SRT NDI|HX2 & IP To SDI/HDMI Video Decoder

Kiloview D260 Full HD IP and NDI|HX2 to HDMI/SDI Decoder

The Kiloview RD-260 is a H.265 1x 3G-SDI + 1x HDMI decoder which is built on the capabilities of our original decoder DC230 with expanded new features including upgraded decoding performance, extended ports, more protocols supported and a new LCD screen. Everything your need about decoding is packaged in this single unit.

As an upgraded version of RD-230, RD260 adds a couple more interfaces for advanced application. Now D260 is equipped with one HDMI 2.0 ports, one 3G-SDI port and 2 USB ports(one USB Type-A and one USB Type-C)to ensure the scalability, It’s capable for outputting in three ways: Independently, Combine multi-channel video flows or replicate of one single flow to stream simultaneously.

The D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.

KEY FEATURES

• NDI|HX2 decoding
• 1080p60
• Decode up to H.264/H.265 IP Video
• 1 x 3G-SDI & 1 x HDMI 2.0 Outputs
• Dual Gigabit Ethernet, Up to 1080p60 Out
• 4-Channel Decoding, 16 x Preview Streams
• Built-In LCD Screen
• Independent, Multichannel, Replication
• 3.5mm Line Out, Audio On/Off
• USB-A for Intercom/USB-C for SSD Storage
• Customizable Grids, Frames & PIP
• Compatible with Kiloview Cradle series RU03 and Kiloview Cradle series RU01

SPECIFICATIONS KILOVIEW RD-260

Model	RD-260
Input	2 x 1000M RJ45 Ethernet port
USB interface	1 x USB Type-A，1 x USB Type-C
Video output	1xHDMI，up to 1920×1080@60Hz (1080p60), 1xSD/HD/3G-SDI，up to 1920×1080@60Hz (1080p60)
LCD screen	0.96 ” OLED display
Audio output	SDI/HDMI embedded or built-in Line out analog audio
Media transmission protocols	NDI|HX2.0, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP and RTSP
Video decoding	H.264/H.265
Audio decoding	AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM and other software expansion
Decoding delay	NDI|HX2：<150ms； SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, RTSP: 100~200ms(adjustable)
Decoding ability	Up to 4 channels decoding simultaneous (1080p60fps H.264(AVC)/H.265(HEVC)
Management	Web page/ Kiloview KiloLink Server
Power supply/Consumption	12V, 1A/7w (MAX)
Dimensions/Weight	162.85×104.00×25.00mm/328.18g
Operation temperature	-20 ~60°C

INCLUDED BY DEFAULT

• Kiloview RD-260
