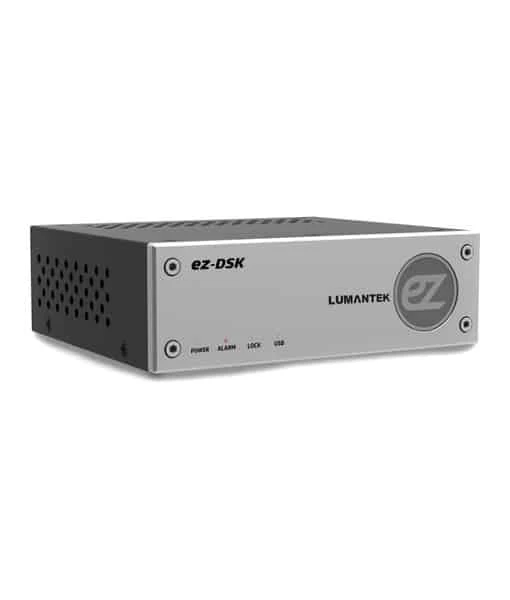

Lumantek ez-DSK Live CG Generator

ez-DSK allows easy application of computer graphics like subtitles, images, sequences, videos and widgets into your outgoing video source. Overlay method of ez-DSK doesn’t take any extra video ports like conventional Fill/Key generators and allows zero delay transmission. It is equipped with fail safe trigger mechanism to prevent any disruption if any malfunction occurs. All outgoing ports reclock the video source for better quality video. ez-DSK distributes the outgoing source into 4 SDI and 1 HDMI, so it works as a distributor and a converter at the same time.



KEY FEATURES

• One SDI Input
• Four SDI & One HDMI Outputs
• Reclocked Outputs
• User Friendly Interface
• Easy Connection Through USB 3.0
• Easy connection through USB 3.0
• Complimentary CG software “ez-CGER” for Windows OS
• Fail-safe mechanism

SPECIFICATIONS

Data Input
SDI Input	(BNC 75 Ohms) x 1
	1080p30/ 1080p29/1080p25/ 1080p24/ 1080p23/ 1080i60/ 1080i59/ 1080i50/ 720p60/ 720p59/ 720p50
CG Input	(USB3.0) x 1
	1080p30/ 1080p29/1080p25/ 1080p24/ 1080p23/ 1080i60/ 1080i59/ 1080i50/ 720p60/ 720p59/ 720p50



Data Output

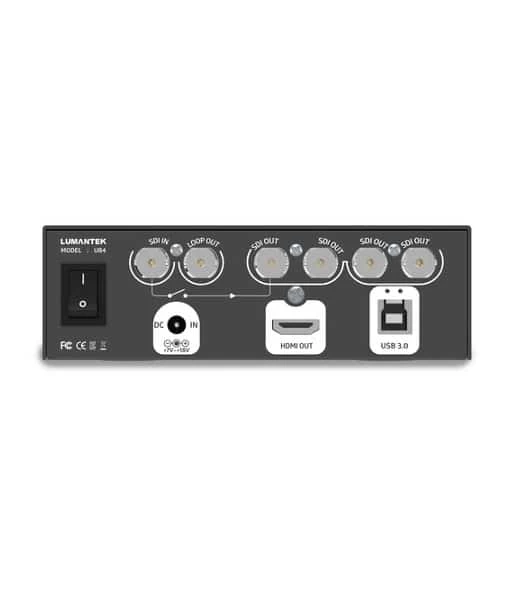

SDI Output	(BNC 75 Ohms) x 4
	1080p30/ 1080p29/1080p25/ 1080p24/ 1080p23/ 1080i60/ 1080i59/ 1080i50/ 720p60/ 720p59/ 720p50
SDI Loop Output	(BNC 75 Ohms) x 1 – Same as input resolution – Overlay feature is not supported
HDMI Output	(BNC 75 Ohms) x 1
	1080p30/ 1080p29/1080p25/ 1080p24/ 1080p23/ 1080i60/ 1080i59/ 1080i50/ 720p60/ 720p59/ 720p50

* ez-DSK cannot overlay graphic on 480i, 625i, Full HD (1080p50, 1080p59, 1080p60) formats.







INCLUDED BY DEFAULT

• Lumantek ez-DSK Live CG Generator
