Lumantek Ez-MD+ HDMI SDI Cross Converter With Audio Mux/Demux And Scaler

Lumantek Ez-MD+ HDMI/SDI Cross Converter with Audio Mux/Demux and Scaler

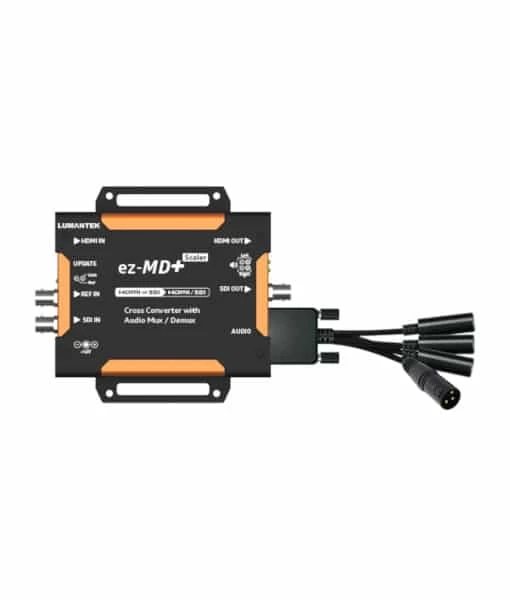

The compact HDMI/SDI Cross Converter from Lumantek converts HDMI to SDI signals or SDI to HDMI signals. The converter can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60 and lets you choose between a 16:9 or 4:3 video displaying ratio. A 9-pin serial port allows embedding and de-embedding of audio with the included external 9-pin to XLR breakout cable. A 10-step rotary switch controls the audio delay of the video source at 50ms steps.





KEY FEATURES

Converts HDMI to SDI & SDI to HDMI

Up / Down Scaling and Screen Ratio Control

ez-MD+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement. All these functions are controlled by ‘dip switch’

Audio embedding/De-embedding with external XLR Audio

9 pin serial port to XLR * 4 is complimentary.

Audio Delay control

Use the rotary switch to control the audio delay of the video source (50ms Step).

Frame Synchronization

There is a “Free Running”, “Input Lock”, and “Genlock” mode to synchronize your video signal. Genlock system ensures proper synchronizing of the signals when aligning the source with external signal

SPECIFICATIONS

Data Input
SDI Video Input	SD/HD/3G-SDI (BNC 75Ω) x1
HDMI Video Input	SD/HD/3G (HDMI Type A) x1
Reference Input	B.B , TRI  (BNC 75Ω) x1
Audio Input	D-SUB 9PIN (Female) x1
Video Formats	– [email protected]/60 – 720x576i@50 – 1280x720p@50/59.94/60 – 1920x1080i@50/59.94/60 – [email protected]/24/25/29.97/30 – 1920x1080p@50/59.94/60
Data Output
SDI VIdeo Output	SD/HD/3G-SDI (BNC 75Ω) x1
HDMI Video Output	SD/HD/3G (HDMI Type A) x1
Audio Output	D-SUB 9PIN (Female) x1
Video Formats	– [email protected] (DIP SW : 1111) – 720x576i@50 (DIP SW : 0111) – 1280x720p@50 (DIP SW : 1011) – [email protected] (DIP SW : 0011) – 1280x720p@60 (DIP SW : 1101) – 1920x1080i@50 (DIP SW : 0101) – [email protected] (DIP SW : 1001) – 1920x1080i@60 (DIP SW : 0001) – [email protected] (DIP SW : 1110) – 1920x1080p@24 (DIP SW : 0110) – 1920x1080p@25 (DIP SW : 1010) – [email protected] (DIP SW : 0010) – 1920x1080p@30 (DIP SW : 1100) – 1920x1080p@50 (DIP SW : 0100) – [email protected] (DIP SW : 1000) – 1920x1080p@60 (DIP SW : 0000)
Connections
Power	DC Power Input (DC Jack) x1
Update	Debus (Micro-USB) x 1

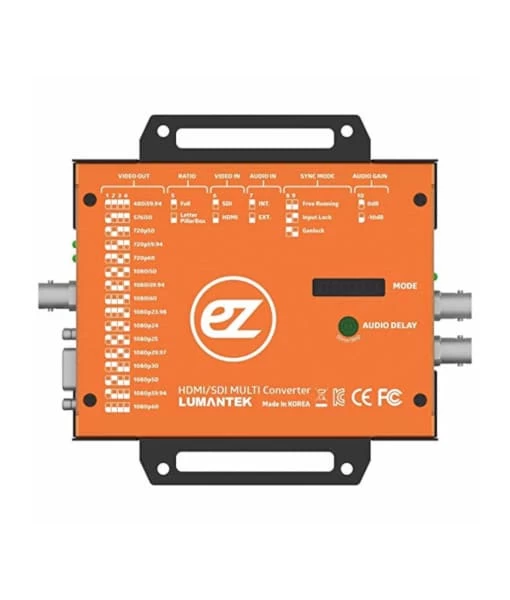

DIP Switch	(10 Pole) x 1 Video Output Resolution, Video Output Ratio, Video Input(SDI or HDMI),Audio(INT or EXT), Sync Mode : Free Running, Input lock, Genlock (B.B or TRI-Level), Audio Gain(0 or -10dB)
Rotary Switch	(10 step) x 1
Audio Delay Control	(50ms Step)
Display
Link (Green x 1)	HDMI or SDI Input video Detect
Ref (Green x 1)	REF Input Signal Detect
Left (Green x 1, Red x 1)	Input Audio Level Meter (Left)
Right (Green x 1, RED x 1)	Input Audio Level Meter (Right)
Electrical
Power Input	DC +11V to +13V
Power consumption	8W(max.)
Operation Temperature	0~45℃
Physical
Dimension	130×100.4×26.9 (include connector)
Weight	0.4kg (Typ.)

INCLUDED BY DEFAULT

• Lumantek HDMI/SDI Cross Converter with Audio Mux/Demux and Scaler
• 9-Pin to XLR Breakout Cable
• 12 VDC, 1 A Power Adapter
