Lumantek Ez-Pro VS10 3G-SDI HDMI Video Switcher With Touchscreen



Lumantek ez-Pro VS10 3G-SDI HDMI Video Switcher with Touchscreen

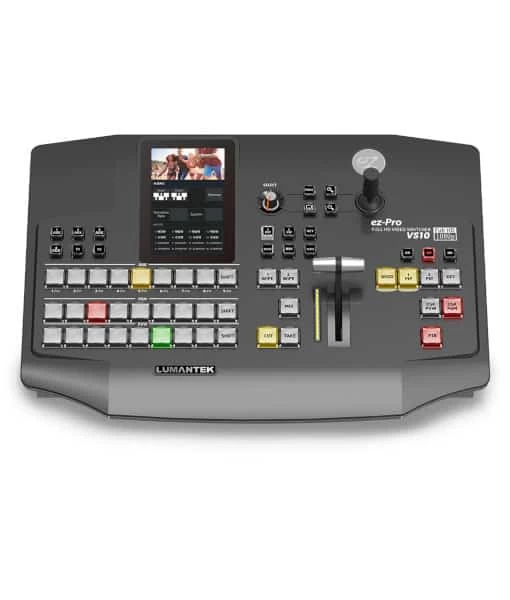

The Lumantek ez-Pro VS10 is a standalone 3G-SDI/HDMI Video Switcher designed for live events. Integrated scaling enables you to mix and match up to ten SD, HD, 3G-SDI, and HDMI signals. All key menu functions can be adjusted with the integrated TFT-LCD touchscreen and operated with the rotary switch or joystick. The 5″ screen displays program and multiview. Features of the ez-Pro VS10 include two PiP (picture-in-picture) functions and chroma/luma keying.

Use the console buttons and T-bar to switch, cut, mix, wipe, and transition between sources. The ez-Pro VS10 switcher supports video resolutions up to Full HD 1080p60. A USB 2.0 port is provided for transferring settings, media, and new firmware. Other ports include two 3-pin XLR analog audio inputs and outputs, a remote port for control, and an Ethernet port.

KEY FEATURES

• Mix and match 3G/HD/SD-SDI and HDMI sources
• Supports up to 1080p60 HD video
• Multiview and program outputs via HDMI
• Internal scaler in all ten inputs
• LCD 5″ touchscreen
• Two PiP function buttons
• Luma and chroma functions
• SDI ports can be set as fill or key
• Diverse transition effects
• USB 2.0 port for transferring settings, media, and new firmware
• Quiet fan
• Wipe, Mix & Cut + Additional Transitions
• 2 x 3-Pin XLR Audio Inputs & Outputs
• Supports Level A & B 3G-SDI
• USB, Ethernet & Remote Ports

SPECIFICATIONS

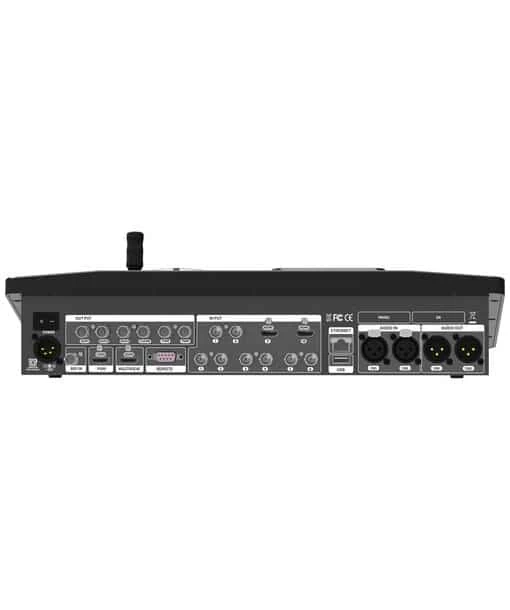

Connections	• 3G/HD/SD-SDI Input : BNC 75Ω 8ea (with Scaler) • HDMI Input : 2ea (with Scaler) • 3G/HD/SD-SDI Output : BNC 75Ω 6ea (AUX1/AUX2/AUX3/CLEAN/PGMx2) • HDMI Output : 2ea (MULTIVIEW/PGM) • Remote: 1ea • Reference Input: 1ea • USB2.0: 1ea • External Analog Audio Input : XLR 2ea • External Analog Audio Output : XLR 2ea • DC 12V: 1ea
Video Format Support	• 480i59/576i50 1080p30/1080p29/1080p25/1080p24/1080p23 1080i60/1080i59/1080i50/720p60/720p59/720p50 1080p60/1080p59/1080p50
Video Switcher	• Mix & Effect: 1ea • PIP: 2ea • KEY: 1ea(LUMA/CHROMA) • Downstream Keyer: 1ea(FILL/KEY) • Pattern Generator: 2ea • Still Image: 2ea • Multiview: 10view 1ea • Audio Mixer: 10 stereo input mixer 1ea
Management	• TFT LCD
Physical	• Dimension: 400(W) x 89(H) x 294(D) (mm, Excluding Connector) • Weight: 3.7kg (8.2lbs)
Environmental	• Operating Temperature: 0 ~ 45℃
Power Requirement	• Power Input: DC 12V • Power Consumption: 00W(max)

INCLUDED BY DEFAULT

• Lumantek ez-Pro VS10 3G-SDI/HDMI Video Switcher with 5″ LED Touchscreen
• Power Supply
• Power Cord
• USB Memory Drive
