Lumantek Ez-Pro VS4 4×1 Multiview Switcher For 3G-SDI And HDMI

Lumantek ez-Pro VS4 4×1 Multiview Switcher for 3G-SDI and HDMI

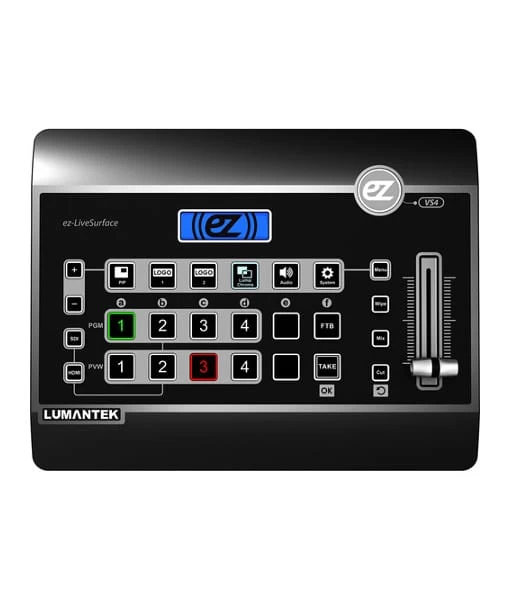

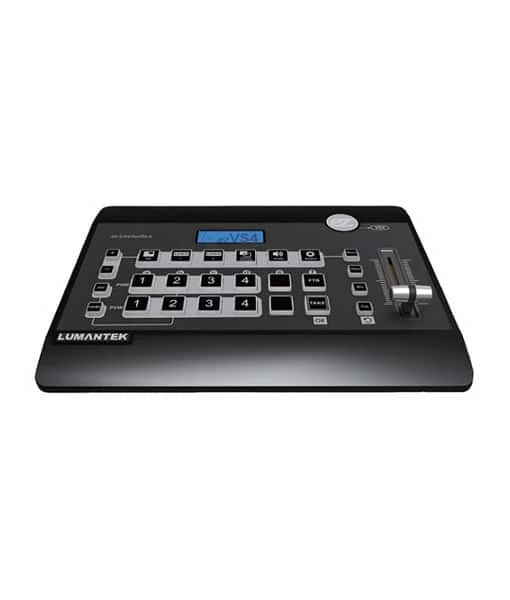

The Lumantek ez-Pro VS4 4×1 Multiview Switcher is a standalone console switcher designed for corporate, educational, event, and house-of-worship applications. Integrated scaling enables you to mix and match up to four SD, HD, 3G-SDI, and HDMI signals. Program is output via HDMI or SDI, and a multiview display is available via HDMI. Features of the ez-Pro VS4 include an adjustable PiP (picture-in-picture) function, chroma/luma keying, embedded-audio volume control, and dual-logo insertion. Use the console buttons and T-bar to switch, cut, mix, wipe, and otherwise transition between sources.

The compact ez-Pro VS4 switcher supports video resolutions up to Full HD 1080p60 with 8/10-bit 4:2:2 processing, and both Level A and Level B 3G-SDI transmission. Up to four channels of embedded audio are supported, plus external audio via stereo RCA inputs. An integrated USB 2.0 interface is provided for firmware upgrades, logo input, and a GUI application.



KEY FEATURES

• 4-Input, 1-Channel HD Video
• 3G/HD/SD-SDI Inputs & Outputs
• Adjustable PiP, 2 x Logos, Luma Keyer
• Embedded I/O & External RCA Audio Input
• Multiview Output through HDMI
• Supports Level A & Level B 3G-SDI
• Wipe, Mix, Cut & Additional Transitions
• Embedded Audio Volume Control

SPECIFICATIONS

Input Ports

Video:

• 3 x HDMI
• 1 x SDI
• 1 x HDMI/SDI interchangeable

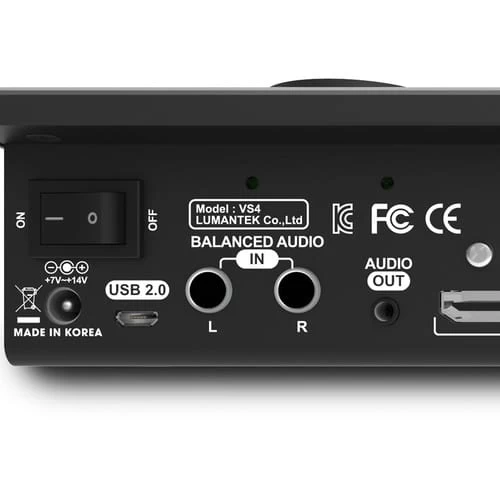

Audio:

• TS type 6.35mm (1/4″) Balanced External Audio

[/col]

Output Ports

Video:

• 1 x HDMI (Multiview)
• 1 x HDMI (Program)
• 1 x SDI (Program)

Audio:

• 3.5mm Stereo port.

INCLUDED BY DEFAULT

• Lumantek ez-Pro VS4 4×1 Multiview Switcher for 3G-SDI and HDMI
• Power Supply
• Power Cord
