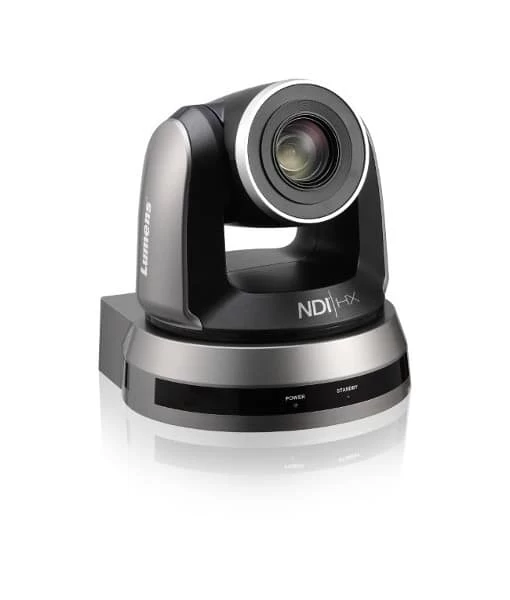

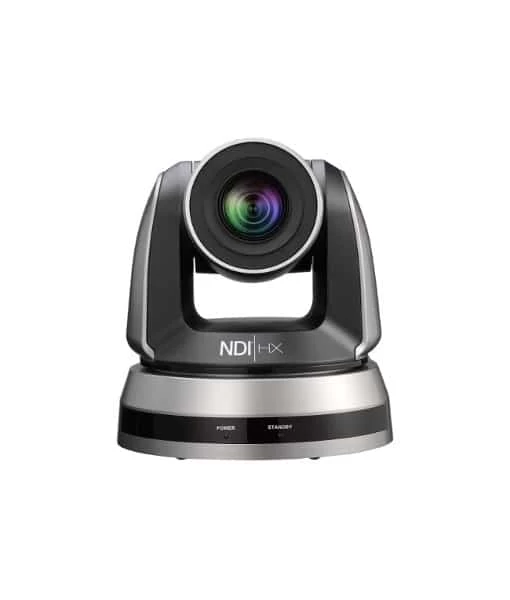

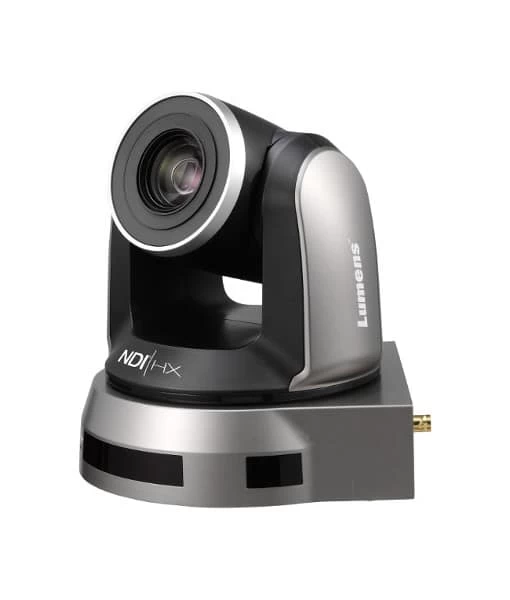

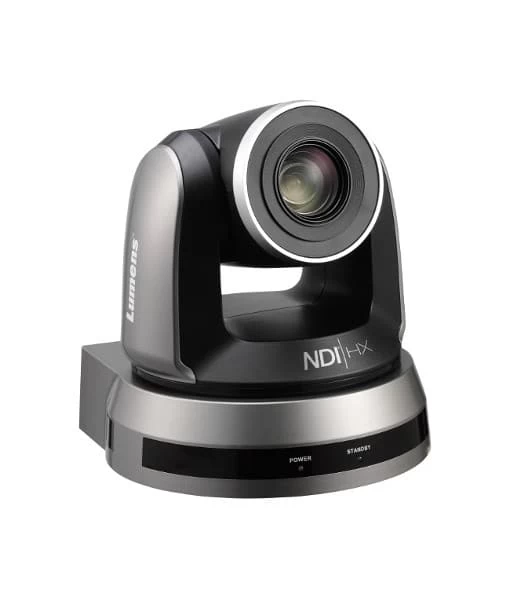

Lumens VC-A50PN IP PTZ camera with NDI

Equipped with a professional 1/2.8 inch image sensor, Lumens VC-A50PN produces excellent video output. The camera excels in difficult lighting conditions thanks to WDR (wide dynamic range), 3D noise reduction, advanced auto-focus, auto-exposure, and auto-white balance algorithms. These enable the A50PN to maintain a consistent output even while the camera is in motion or when the zoom angle changes.

NDI Ready

Newtek’s NDI|HX was developed to allow video and audio sources to be shared bi-directionally across an Ethernet network. By leveraging standard IT and network infrastructures, NDI reduces the cost of installation while accelerating the time required to set up and connect devices. Once installed on the network, each device is instantly available as a video and audio source.

Installation and Power

Power is supplied through PoE+ (Power over Ethernet) or via a 12v DC input. Perfect for use in theaters, studios, conference rooms, and public meeting spaces, the VC-A50PN can be mounted to a floor stand, or suspended from the ceiling. The camera’s image flip mode instantly corrects the output when the camera is inverted.

Camera Control

The camera’s settings and PTZ control functions can be managed via the IP, RS-232, and RS-422 ports. Supporting industry-standard NDI, VISCA, and PELCO-D protocols, the camera is compatible with a range of control hardware, making it easy to integrate the camera into your video and AV network.

Presets

For consistent results and faster operation, the camera stores up-to 128 presets. Activating a preset instantly applies user-defined settings for pan, tilt and zoom position, focus, exposure, and white balance. This allows the operator, for example, to automatically trigger a panning movement across a stage, a close-up focus on the presenter at the lectern, or a wide-angle shot.

KEY FEATURES

• Full HD 1080p signal output format with a high frame rate of 60 fps
• 20x optical zoom
• Supports live broadcasting (MJPEG, H.264 supports SVC)
• Supports Power Over Ethernet (PoE)
• Supports NDI technology for NDI-based video production
• Supports SRT protocol that optimizes streaming performance
• Ethernet low latency ( < 120 ms)
• Ethernet, HDMI, and 3G-SDI synchronous image outputs
• Maximum horizontal/vertical speed of rotation:120 degrees/second
• Audio input supports AAC encoding with 44.1/48 K sampling frequency

SPECIFICATIONS

Sensor	1/2.8” 2MP CMOS
Video Output	1080p 60 / 59.94 / 50 fps, 1080i 60 / 59.94 / 50 fps, 1080p 30 / 29.97 / 25 fps, 720p 60 / 59.94 / 50 fps
Optical Zoom	20x
Panning Angle	-170° ~ +170°
Tilting Angle	-30° ~ +90°
Preset Positions	128
Video Output(HD) Interface	HDMI, 3G-SDI, Ethernet
Video Stream	RTSP / RTMP / NDI
PoE	PoE+ (IEEE802.3at)
Camera Control Interface	RS-232 / RS-422 / Ethernet
Camera Control Protocol	VISCA / PELCO D / NDI
Video S/N Ratio	> 50dB
Shutter Speed	1/1 ~ 1/10,000 sec
Focal Length	f = 4.7 ~ 94 mm
Video Compression	MJPEG, H.264 / SVC
3D NR	Yes
Horizontal Viewing Angle	63°
Aperture	F1.6 ~ F3.5
Minimum Illumination	1.0 lux (F1.6, 50IRE, 30fps)
Minimum Object Distance	1.2m
Gain Control	Auto, Manual
White Balance	Auto, Indoor, Outdoor, One-Push, Manual
Exposure Control	Auto, Manual
Focus System	Auto, Manual
Image Flip	Yes
Audio Input	Line In / MIC In
Audio Output	Ethernet, SDI and HDMI
Weight	2 kg (4.4 lbs)
Dimensions (WxDxH)	174 x 185.5 x 186.2 mm(6.85” x 7.3” x 7.3”)

INCLUDED BY DEFAULT

• Lumens VC-A50PN FHD NDI PTZ Camera
